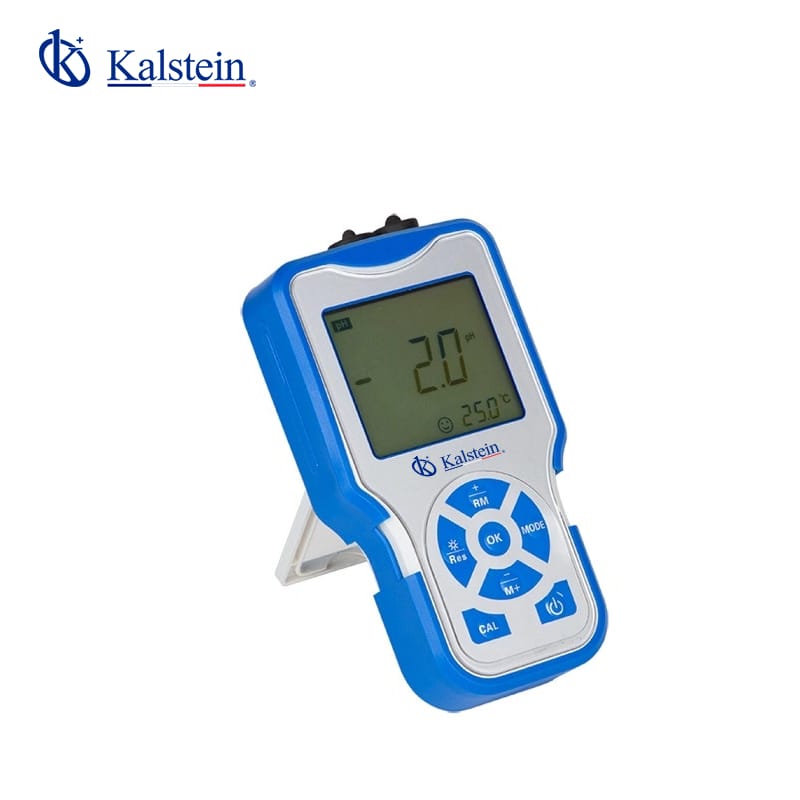

Understanding the Operation Principle and Scientific Foundation of the YR01818 Conductivity Meter
The YR01818 Conductivity Meter serves as a versatile tool in measuring electrical conductivity, TDS (Total Dissolved Solids), salinity, and resistivity of various solutions. This article delves into the operation principle and scientific foundation of this device, shedding light on its design, measurement capabilities, and typical applications in laboratories.
Key Measurement Principles of the YR01818
At the core of the YR01818 is the principle of electrical conductivity, which pertains to the ability of a solution to conduct an electric current. Conductivity is influenced by the concentration of ions in the liquid, which are the charge carriers. The meter employs a two-electrode system where the electrodes are submerged in the liquid, establishing an electrical circuit.
The conductivity is quantified in microsiemens per centimeter (µS/cm). The YR01818 covers a measurement range from 0.5 µS/cm to 200 mS/cm, making it suitable for a wide variety of applications. The relationship between conductivity and ion concentration can be expressed through the formula:
σ = k × C
where σ is the conductivity, k is the cell constant (dependent on electrode design), and C is the concentration of ions.
Design and Technological Choices
The YR01818 is designed with a microprocessor chip that facilitates intelligent functions like automatic calibration and temperature compensation. These features enhance accuracy and user-friendliness. The automatic temperature compensation (ATC) is particularly crucial for ensuring reliable results in varying temperatures, which can affect conductivity readings.
Furthermore, the meter incorporates a non-linear temperature compensation mode specifically for high-purity water, which is essential in applications that require precise measurements, such as in monitoring water quality in clinical or industrial settings.
Calibration and Measurement Accuracy
Calibration is a vital process for ensuring the YR01818 provides accurate measurements. The device is capable of recognizing eight standard conductivity solutions, allowing users to perform one-point calibration efficiently. Calibration improves the meter's accuracy, reducing the margin of error to ±1.0% FS overall.
The measurement accuracy can be affected by several factors, including electrode condition, solution temperature, and the presence of non-ionic species. Regular calibration is recommended, especially when used in critical applications where precise readings are necessary.
Technical Specifications of the YR01818
| Specification | Detail |
|---|---|
| Model | YR01818 |
| Measuring Range | Conductivity: (0.00~19.99)µS/cm, (20.0~199.9)µS/cm, (200~1999)S/cm, (2.00~19.99)mS/cm, (20.0~199.9)mS/cm, TDS: (0~100)g/L, Salinity: (0~100)ppt, Resistivity: (0~100) ΜΩ·cm |
| Resolution | 0.01/0.1/1µS/cm; 0.01/0.1 mS/cm |
| Accuracy | ±1.0% FS, Overall: ±1.5% FS |
| Temperature Compensation Range | (0~100)°C (Auto/manual) |
| Data Storage | 0.1/1/10 cm |
| Power Supply | Two AA batteries (1.5V x2) |
| IP Grade | IP57 Dustproof and waterproof |
Common Applications of the YR01818
The YR01818 is widely used across various sectors including clinical laboratories, industrial processes, food quality testing, and environmental monitoring. Each application requires specific configurations and operational protocols tailored to meet the unique requirements of that field.
In clinical laboratories, the meter helps in monitoring water quality and ensuring compliance with health standards. In industrial applications, it assists in controlling chemical processes and maintaining product quality. The food industry relies on it for assessing the salinity of food products, while environmental monitoring utilizes it to assess the quality of natural water bodies.
Frequently Asked Questions
What is the operating principle of the YR01818 Conductivity Meter?
The YR01818 operates based on the principle of measuring electrical conductivity, which is the ability of a solution to conduct electric current due to the presence of ions. This is quantified in microsiemens per centimeter (µS/cm) through a two-electrode system submerged in the solution.
How does temperature compensation work in the YR01818?
The YR01818 features automatic temperature compensation (ATC) that adjusts the conductivity readings based on the temperature of the solution being measured. This ensures accurate results, especially for high-purity water where temperature variations can significantly affect conductivity.
What types of solutions can be measured with the YR01818?
The YR01818 can measure a wide range of solutions including those with conductivity levels from 0.5 µS/cm to 200 mS/cm, TDS from 0 to 100 g/L, salinity from 0 to 100 ppt, and resistivity up to 100 MΩ·cm.
What maintenance does the YR01818 require?
Regular maintenance includes calibration with standard solutions, cleaning the electrodes, and replacing batteries as needed. It is essential to follow the manufacturer's guidelines for maintenance to ensure the longevity and accuracy of the device.
Can the YR01818 be used in outdoor environments?
Yes, the YR01818 is rated IP57 for dust and water resistance, making it suitable for outdoor use. However, it is crucial to protect the device from extreme environmental conditions to maintain its functionality.
How do I interpret the readings from the YR01818?
Readings from the YR01818 can be interpreted based on the units of measurement (µS/cm for conductivity, g/L for TDS, ppt for salinity). Understanding the normal ranges for these measurements in specific applications will help determine the quality of the solution being tested.
Where can I request a quote for the YR01818?
If you are interested in purchasing the YR01818 Conductivity Meter, you can request a quote through the official channels available at Kalstein.
