Description

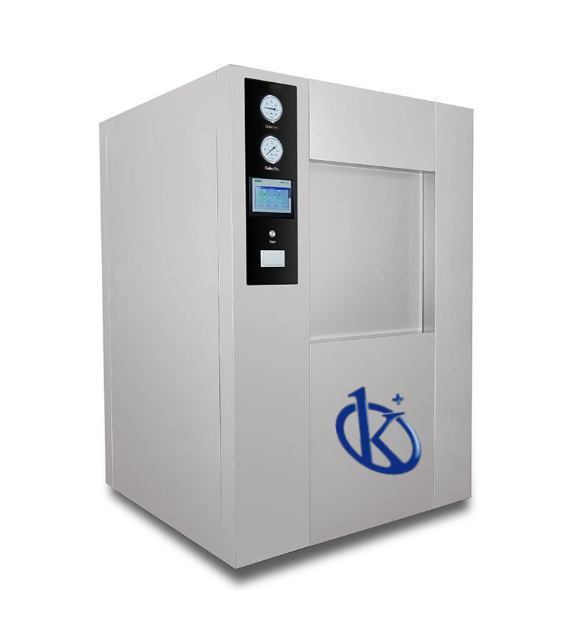

The Automatic Vertical Sliding Door Rapid Cooling Culture Medium Sterilizer YR05758-1 is an innovative solution designed for the efficient sterilization of culture media, syringes, soft bags, and liquids in the pharmaceutical and scientific research industries. Using a blend of steam and gas as the sterilizing medium, this high-tech sterilizer ensures a thorough sterilization process. The vertical sliding door mechanism, powered by a motor chain, maximizes space and boosts efficiency by eliminating manual operations. This cutting-edge device meets the stringent needs of both biological engineering and research institutions with precision and reliability.

Market Price

The market price for the YR05758-1 Rapid Cooling Vertical Sliding Door Automatic Sterilizer typically ranges from $30,000 to $35,000 USD. This price range underscores the advanced technology and superior functionality that this sterilizer offers, making it a worthwhile investment for organizations requiring high-level sterilization solutions. To receive a quote specifically tailored to your needs, we encourage the use of the Kalstein Plus platform, which simplifies the request and automatic quotation process.

Frequently Asked Questions

• What is the capacity of the sterilizer chamber?
  The chamber has a capacity of 250 liters, with dimensions of 550 mm in width, 550 mm in height, and 850 mm in depth.
• What materials are used in the construction of the sterilizer?
  The sterilizer is constructed using high-quality materials: AISI 316L for the inner chamber and door, AISI 304 for the jacket, and AISI 316L for the built-in steam generator.
• Is it easy to operate?
  Yes, the device is user-friendly, thanks to the imported Siemens PLC programmable controller and color touch screen, which allow automatic control of the entire process with real-time display of sterilization parameters.

Advantages and Disadvantages

The YR05758-1 sterilizer boasts numerous advantages, including robust stainless steel construction for enhanced durability, and a space-saving vertical sliding door system that improves functionality. The high-quality pneumatic sealing ring provides better sealing performance and a longer lifespan. However, its weight of 750 kg may present challenges in mobility and installation in certain settings.

Product Use in the Field

This sterilizer finds extensive application in environments demanding efficient and safe sterilization, such as pharmaceutical and research industries. Its rapid cooling capability and advanced control system make it ideal for tasks requiring high precision and dependability, such as the sterilization of culture media and critical instruments.

Recommendations

To ensure optimal performance of the YR05758-1 sterilizer, it is advisable to adhere to the maintenance recommendations provided by the manufacturer. This includes regular cleaning of the sterilization chamber, checking the safety systems, and conducting functionality tests before each cycle. Ensuring the water level remains optimal and the pneumatic sealing ring is in good condition will also help maintain efficiency. For those interested in purchasing this sterilizer and require more information on pricing and specifications, we invite you to request a quote or generate an automatic quote through the Kalstein Plus platform. This user-friendly tool swiftly provides the necessary details, ensuring you obtain the ideal equipment tailored to your specific sterilization needs, elevating your process efficiency.

Features

• Vertical sliding door opening and closing structure, motor chain drives the door up and down vertical lift sliding open and close, without manual operation, saving space occupation.
• Dual door passage type, dual door interlocking, with pressure safety interlocking, liquid program with temperature door safety interlocking.
• Pneumatic pressure-driven sealing ring for automatic sealing, a new high-quality high tear resistant silicone rubber circular door sealing ring, a specially coated surface, wear-resistant and smooth, with better sealing effect and longer service life, up to 2000 cycles.
• The main structure is rectangular section, European ring reinforcement jacket without flange structure. The sealing groove is welded directly on the ring jacket at both ends.
• The material of the inner chamber and door are made of AISI 316L, the jacket material is AISI 304, and the built-in steam generator material is AISI 316L. The inner surface of the chamber, door and evaporator is mechanically polished and electrolytically polished, and the surface roughness is less than or equal to 0.4.
• Control system: Imported Siemens programmable controller PLC and color touch screen, the whole process automatic program control, automatic display running process status, temperature, pressure, F0 value, time and other parameters.

Technical Specifications
