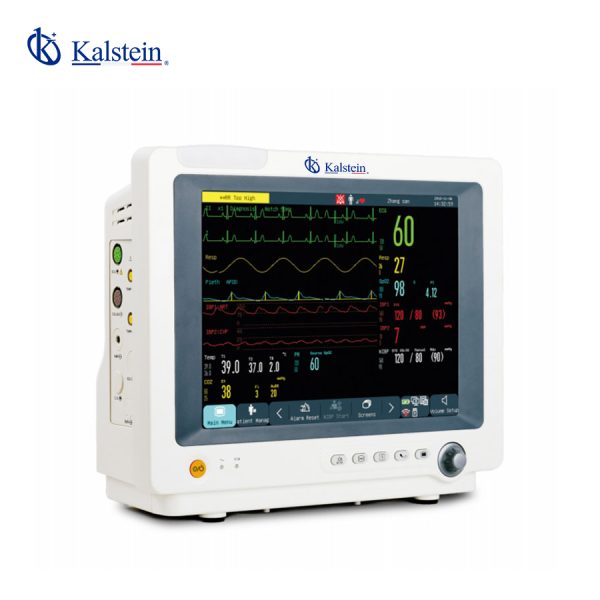

Bedside Monitor YR02173

Description

The Bedside Monitor YR02173 is a state-of-the-art medical device designed to provide comprehensive monitoring of patients’ vital signs. Featuring a 12.1-inch touch screen, it offers intuitive navigation and easy readability. The device incorporates a 5-lead ECG, RESP, Temp (Single Channel), COMEN SpO2, NIBP, and HR, among other advanced monitoring capabilities such as dual-IBP, EtCO2, AG, ICG, C.O., BIS, Nellcor/Masimo SpO2, and 3/12-lead ECG. Thanks to its versatility and advanced technology, the YR02173 is an essential tool in any medical setting, ensuring precise and timely patient assessment.

Price in the Market

The Bedside Monitor YR02173 typically falls within the price range of $2000 to $2800 USD in the market. This competitive pricing reflects the high-tech features and advanced monitoring capabilities it offers. To get the best deal or check for any ongoing promotions, it is advisable to request a quote through our platform.

Frequently Asked Questions

What kind of screen does the YR02173 have? The YR02173 is equipped with a 12.1-inch touch screen that offers intuitive operation and clear display of data.

Can the monitor be mounted on the wall? Yes, the YR02173 can be mounted on the wall or placed on a trolley, offering flexible placement options in various healthcare settings.

Advantages and Disadvantages

The YR02173 offers numerous advantages, including its multi-parametric capabilities and user-friendly interface. Its disadvantages might include the need for professional installation or specific training to maximize its potential, which could incur additional costs.

Use of the Product in the Field

The Bedside Monitor YR02173 is ideal for use in hospitals, clinics, and other medical facilities. Thanks to its comprehensive monitoring capabilities, it is used to keep track of patients’ systemic status, providing real-time data necessary for critical decision-making.

Recommendations

For optimal performance, it is recommended to regularly calibrate and maintain the unit as outlined in the user manual. Additionally, taking advantage of training sessions can enhance user proficiency, ensuring the best use of its features.

Features

12.1 inch touch screen
5-lead ECG, RESP, Temp (Single Channel), COMEN SpO2, NIBP, HR
Dual-IBP, EtCO2, AG, ICG, C.O., BIS, Nellcor/Masimo SpO2, 3/12-lead ECG, Thermal Recorder, Dual-Temp, Suntech NIBP, Trolley, Wall mount

Technical Specifications

Model		YR02173
ECG	Lead mode	5 Leads(RA,LA,LL,RL,V)
	Connection method	I, II, III,AVR,AVL,AVF,V
	Lead Mode	3 Leads (RA,LA,LL)
	Connection method	I, II,III
	Waveform	1ch
	Gain	1.25, 2.5, 5.0, 10, 20, 40mm/mV, Auto.
	HR Range	Adult: 15~300bpm
	Neo/Ped	15~350bpm
	Accuracy	±1% or ±1bpm
	Resolution	1bpm
	Sensitivity	>200(uVp-p)
	Differential input impedance	≥5MΩ
	ST segment Monitoring Range
	Measure Range	-2.0~+2.0mV
	Measure Accuracy	-0.8mV~+0.8mV
Heart Rate	Measuring range	15~300bpm
	Accuracy	±1bpm
	Resolution	1bpm
	Sensitivity	>200UVp-p
Respiration	Method	Impedance between R-F(RA-LL)
	Differential Input Impedance	>2.5MΩ
	Measuring Impedance Range	0.3~3.0 MΩ
	Base line Impedance Range	200~4000Ω
	Bandwidth	0.1~2.5Hz
	Respiration Rate	Adult: 2~120BrPM
	Neo/Ped	0~150BrPM
	Resolution	1 BrPM
	Accuracy	±2 BrPM
	Alarm	10~40S
NIBP	Method	Oscillometric
	Mode	Manual/Auto/STAT
	Measuring Interval in AUTO Mode	1,2,3,4,5,10,15,30,60,90,120,180,240,480(Min)
	Measuring Period in STAT Mode	5 Min
	Pulse Rate Range	40~240bpm
	Alarm Type	SYS, DIA, MEAN
	Resolution
	Pressure	1mmHg
	Accuracy	Maximum Mean error: 5mmHg
	Maximum Standard deviation	8mmHg
SPO2	Display	Number of SPO2,waveform of capacity,Pulse
	Measuring range	0~100%
	Resolution	1%
	Accuracy	60~100% (±2%)
	Alarm system	Audio-video alarm
	Pulse rate range	0~300bpm
TEMP	Channel	2
	Measuring and Alarm Range	0~50ºC
	Resolution	0.1ºC
	Accuracy	0.1ºC
	Actualization interval	About 1 Second.
	Average Time Constant	<10 Second.

Additional information

Weight	5,5 kg
Dimensions	41 × 28 × 36 cm
