Description

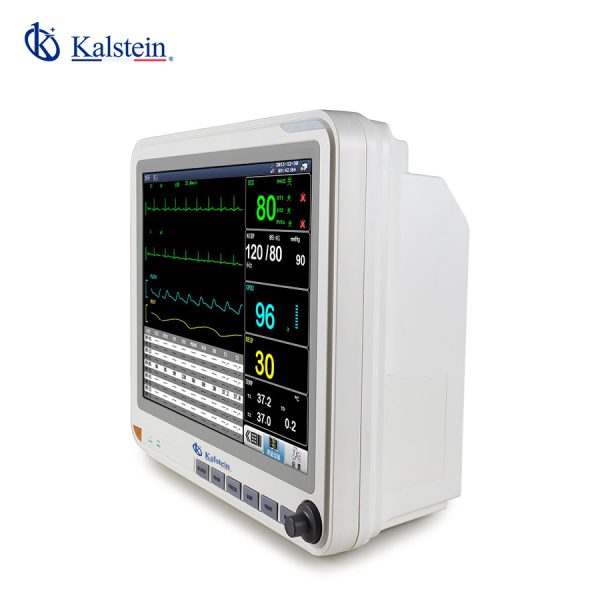

The Bedside Monitor YR02174 is a state-of-the-art multi-parameter patient monitoring system designed for precision and reliability in clinical settings. Featuring a 15-inch display, this device provides comprehensive monitoring capabilities with its standard configuration, including SpO2, RESP, NIBP, PR/HR, ECG, and 2-TEMP functionalities. Optional upgrades are available, such as a 12-lead ECG, IBP, ETCO2, a built-in printer, wall mounts, a trolley, and a touch screen interface, making it customizable to fit various medical needs. Experience enhanced patient care with the cutting-edge technology of the YR02174.
Price Range in the Market
The market for bedside monitors presents a wide range of prices depending on features, brand, and dealer offerings. Typically, similar high-performance monitors can be priced between $900 USD and $1700 USD. However, prices are subject to variations based on specific configurations and additional options, ensuring you get the best value for your investment.
Frequently Asked Questions
What are the standard parameters measured by this monitor?
The Bedside Monitor YR02174 measures SpO2, RESP, NIBP, PR/HR, ECG, and TEMP as part of its standard setup.
Is there a warranty with the purchase?
Yes, the device comes with a manufacturer warranty. Please check the terms and conditions for detailed information.
Advantages and Disadvantages
Advantages: The YR02174 offers accurate multi-parameter monitoring, high configurability with optional upgrades, and a user-friendly interface that enhances patient care efficiency. Its robust design ensures durability under continuous operation.
Disadvantages: While the monitor is packed with advanced features, its extensive capabilities may result in a learning curve for new users unfamiliar with sophisticated medical equipment.
Product Usage in Field
In practical settings, the Bedside Monitor YR02174 is used across various hospital departments, including emergency rooms, intensive care units, and general wards, providing critical data to healthcare professionals. Its reliable measurements and alarms help ensure timely decision-making and intervention.
Recommendations
To maintain the optimal performance of the YR02174, it’s advisable to conduct regular maintenance checks as per the user manual. Ensure all upgrades are compatible with existing systems to prevent operational disruptions and maximize functionality.
Features
- 15-inch multi-parameter monitor
- Customizable with additional options
- Standard features: SpO2, RESP, NIBP, PR/HR, ECG, 2-TEMP
- Optional enhancements include touch screen and printer
Technical Specifications
| Model | YR02174 | |
| ECG | Lead mode | 5 Leads(RA,LA,LL,RL,V) |
| Connection method | I, II, III,AVR,AVL,AVF,V | |
| Lead Mode | 3 Leads (RA,LA,LL) | |
| Connection method | I, II,III | |
| Waveform | 1ch | |
| Gain | 1.25, 2.5, 5.0, 10, 20, 40mm/mV, Auto. | |
| HR Range | Adult: 15~300bpm | |
| Neo/Ped | 15~350bpm | |
| Accuracy | ±1% or ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200(uVp-p) | |
| Differential input impedance | ≥5MΩ | |
| ST segment Monitoring Range | ||
| Measure Range | -2.0~+2.0mV | |
| Measure Accuracy | -0.8mV~+0.8mV | |
| Heart Rate | Measuring range | 20~300bpm |
| Accuracy | ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200UVp-p | |
| Respiration | Method | Impedance between R-F(RA-LL) |
| Differential Input Impedance | >2.5MΩ | |
| Measuring Impedance Range | 0.3~3.0 MΩ | |
| Base line Impedance Range | 200~4000Ω | |
| Bandwidth | 0.1~2.5Hz | |
| Resp. Rate | Adult: 2~120BrPM | |
| Neo/Ped | 0~150BrPM | |
| Resolution | 1 BrPM | |
| Accuracy | ±2 BrPM | |
| Alarm | 10~40S | |
| NIBP | Method | Oscillometric |
| Mode | Manual/Auto/STAT | |
| Measuring Interval in AUTO Mode | 1,2,3,4,5,10,15,30,60,90,120,180,240,480(Min) | |
| Measuring Period in STAT Mode | 5 Min | |
| Pulse Rate Range | 40~240bpm | |
| Alarm Type | SYS, DIA, MEAN | |
| Resolution | ||
| Pressure | 1mmHg | |
| Accuracy | Maximum Mean error: 5mmHg | |
| Maximum Standard deviation | 8mmHg | |
| SPO2 | Display | Number of SPO2,waveform of capacity,Pulse |
| Measuring range | 0~100% | |
| Resolution | 1% | |
| Accuracy | 70~100% (±2%) | |
| Alarm system | Audio-video alarm | |
| Pulse rate range | 0~300bpm | |
| TEMP | Channel | 2 |
| Measuring and Alarm Range | 0~50ºC | |
| Resolution | 0.1ºC | |
| Accuracy | 0.1ºC | |
| Actualization interval | about 1 Second. | |
| Average Time Constant | <10 Second. | |
