Description

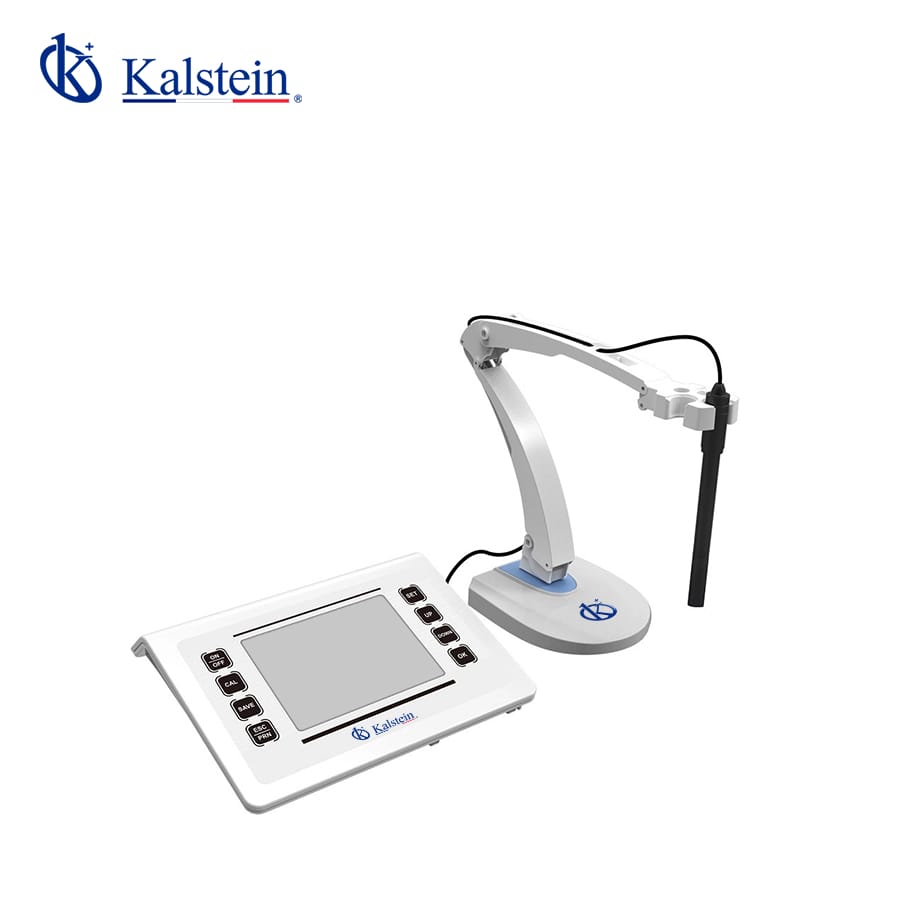

The Benchtop Dissolved Oxygen Meter YR01834 is an advanced device designed for precise measurements of dissolved oxygen levels, salinity, and conductivity. It features a 6.5-inch LED screen with a user-friendly interface, making it accessible for both beginners and experts. The built-in microprocessor chip provides intelligent functions such as automatic calibration, data storage, USB output, and wireless Bluetooth printing. With the capability to store up to 1000 sets of test data, this meter promises reliability and accuracy in various laboratory and field settings.
Market Price
In the current market, benchtop dissolved oxygen meters range between $800 and $1600. This range reflects the varied features and capabilities available in advanced models like the YR01834. For an accurate quote, we invite you to request detailed pricing or generate an automatic quote through our Kalstein Plus platform.
Frequently Asked Questions
What is the memory capacity of the YR01834? The device can store up to 1000 sets of test data that can be exported to a USB stick and opened with Excel.
Is the device portable? While primarily benchtop, its manageable weight and dimensions allow for easy transportation.
Does it support wireless functions? Yes, it supports wireless Bluetooth printing and optional real-time data transfer to mobile phones.
Advantages and Disadvantages
The YR01834 offers numerous benefits such as automatic calibration, versatile conductivity mode, and extensive storage capabilities. However, some users might find the lack of a built-in battery as a minor limitation, requiring a power source for continuous operation.
Usage in the Field
The Benchtop Dissolved Oxygen Meter YR01834 is ideal for laboratory environments and field applications requiring precise measurements of dissolved oxygen, conductivity, and salinity. Its durable design and intelligent functions ensure reliable performance in various conditions.
Recommendations
To ensure optimal use, regularly calibrate the device and keep it clean. For field applications, use suitable protective cases to safeguard against environmental factors. Consider using the wireless function for remote data monitoring, enhancing productivity and data accuracy.
Features
- 6.5-inch LED display
- Automatic temperature compensation (ATC)
- Bluetooth and USB connectivity
- Smart electrode status display
- Omron sturdy keys for extended use
Technical Specifications
| Model | YR01834 | |
| Cond. | Measuring range | Conductivity: |
| (0.00~20.00)μS/cm, (20.0~200.0)μS/cm | ||
| (200~2000)μS/cm, (2.00~20.00)mS/cm | ||
| (20.0~200.0)mS/cm, | ||
| (200~2000)mS/cm (K=10) | ||
| TDS:(0 ~ 100)g/L | ||
| Salinity:(0 ~ 100)ppt | ||
| Resistivity:(0 ~ 100)MΩ·cm | ||
| Resolution | 0.01/0.1/1μS/cm; 0.01/0.1mS/cm | |
| Accuracy | Electrode: ±0.5% FS, Meter: ±0.8% FS | |
| Temp. compensation | (0 ~ 50)ºC, auto | |
| Electrode constant | 0.1 / 1 / 10 cm-1 | |
| Reference Temp. | 25ºC,20ºC,18ºC | |
| DO | Measuring range | (0-20.00)mg/L(ppm), (0-200.0)% |
| Resolution | 0.1/0.01 mg/L(ppm), 1/0.1 % | |
| Accuracy | Electrode: ±0.10 mg/L, Meter: ±0.40 mg/L | |
| Response time | ≤30s (25ºC, 90%response) | |
| Residual current | ≤0.1 mg/L | |
| Temp compensation | (0 ~ 45)ºC, auto | |
| Salinity compensation | (0 ~ 45) ppt, auto | |
| Pressure compensation | (80 ~ 105) kPa, auto | |
| Auto calibration | Air saturated by water, water saturated by air | |
| Electrode type | Polarographic | |
| Temp. | Measuring range | (0 ~ 100)ºC |
| Resolution | 0.1ºC | |
| Accuracy | 5 ~ 60ºC:±0.4ºC Others: ±0.8ºC | |
| Other | Display | 6.5-inch LED screen |
| Data storage | 1000 sets | |
| Power | 12V/1A | |
| Output | USB, RS232, Bluetooth | |
| Ambient Temp. | 5 ~ 35 ºC | |
| Ambient Humidity | ≤85% | |
| IP grade | IP54 | |
| Dimensions/N.W. | 240×170×70mm/600g | |
| Shipping Size/G.W. | 470x430x85mm/2.6kg | |
