Description

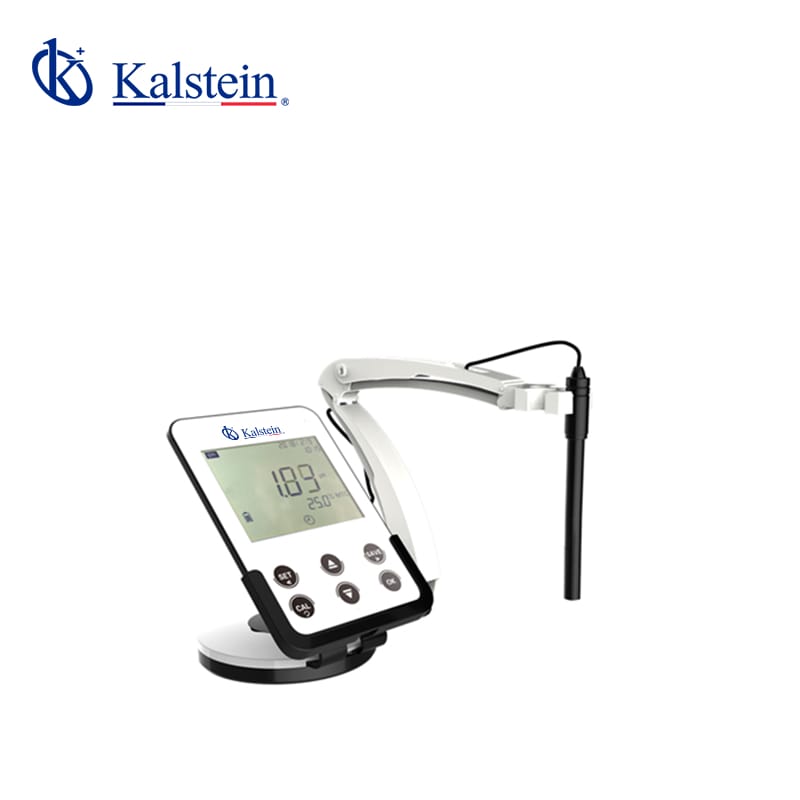

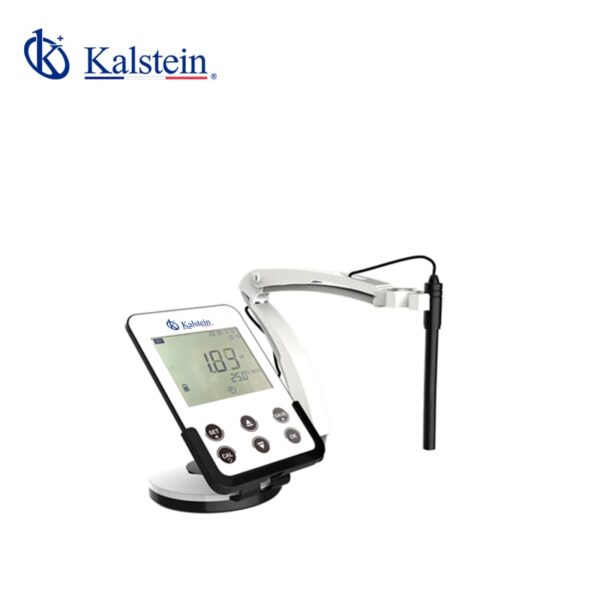

The Benchtop DO / Conductivity Meter YR01837 is an advanced laboratory device designed to provide precise and reliable measurements of conductivity, TDS, salinity, and resistivity. Featuring a large 6.5-inch LED screen, this meter is equipped with an intuitive user interface, ensuring ease of use for both novice and experienced users. Enhanced with a built-in microprocessor, it offers intelligent functions such as automatic calibration, automatic temperature compensation, data storage, real-time data transfer, and wireless Bluetooth printing. This meter’s versatility is further highlighted by its ability to store up to 1000 sets of test data, which can be easily transferred via USB and opened in Excel.
Market Price
The Benchtop DO / Conductivity Meter YR01837 is competitively priced in the market, with prices typically ranging from $500 to $800, depending on the retailer and any additional features or accessories included.
Frequently Asked Questions
Can the data from the meter be exported? Yes, the meter supports USB output, allowing data to be exported to external devices, and it is compatible with Excel.
Does the meter support automatic calibration? Yes, the meter features an automatic calibration function, enhancing measurement accuracy.
Is it possible to print data wirelessly? Yes, the meter supports wireless Bluetooth printing, making it easy to share and archive results.
Advantages and Disadvantages
Advantages: The YR01837 offers robust data management capabilities, multi-parameter measurements, and an easy-to-use interface, making it ideal for various laboratory applications. Its automatic temperature compensation ensures precise readings across different conditions.
Disadvantages: The initial learning curve might be steep for users unfamiliar with such multifunctional devices, and it might require regular maintenance to ensure optimal performance.
Product Use in the Field
This benchtop meter is widely used in laboratories for chemical analysis, environmental water testing, and quality control processes. Its rugged design and comprehensive range of functions allow it to perform accurately under various laboratory conditions.
Recommendations
To maximize the effectiveness and lifespan of the YR01837, regular calibration and maintenance are recommended. Ensure that all software updates are applied promptly and that the device is stored in a stable environment within the specified ambient temperature and humidity ranges. To explore how the YR01837 can meet your specific needs, don’t hesitate to request a quote or visit our Kalstein Plus platform for an automatic quotation.
Features
- 6.5-inch LED screen with user-friendly interface
- Automatic calibration and temperature compensation
- Bluetooth wireless printing and data transfer options
- Smart electrode status display
- Supports multiple data formats: USB, RS232
- Advanced conductivity measurement technology
- Multi-mode analysis: conductivity, TDS, salinity, resistivity
- Stores up to 1000 data sets
Technical Specifications
| Model | YR01837 | |
| Cond. | Measuring range | Conductivity: |
| (0.00~20.00)μS/cm, (20.0~200.0)μS/cm | ||
| (200~2000)μS/cm, (2.00~20.00)mS/cm | ||
| (20.0~200.0)mS/cm, | ||
| (200~2000)mS/cm (K=10) | ||
| TDS:(0 ~ 100)g/L | ||
| Salinity:(0 ~ 100)ppt | ||
| Resistivity:(0 ~ 100)MΩ·cm | ||
| Resolution | 0.01/0.1/1μS/cm; 0.01/0.1mS/cm | |
| Accuracy | Electrode: ±0.5% FS, Meter: ±0.8% FS | |
| Temp. compensation | (0 ~ 50)ºC, auto | |
| Electrode constant | 0.1 / 1 / 10 cm-1 | |
| Reference Temp. | 25ºC,20ºC,18ºC | |
| Temp. | Measuring range | (0 ~ 100)ºC |
| Resolution | 0.1ºC | |
| Accuracy | 5 ~ 60ºC:±0.4ºC Others: ±0.8ºC | |
| Other | Display | 6.5-inch LED screen |
| Data storage | 1000 sets | |
| Power | 12V/1A | |
| Output | USB, RS232, Bluetooth | |
| Ambient Temp. | 5 ~ 35 ºC | |
| Ambient Humidity | ≤85% | |
| IP grade | IP54 | |
| Dimensions/N.W. | 240×170×70mm/600g | |
| Shipping Size/G.W. | 470x430x85mm/2.6kg | |
