Benchtop Ph/DO Meter YR06383

ManufacturerKalstein

Description

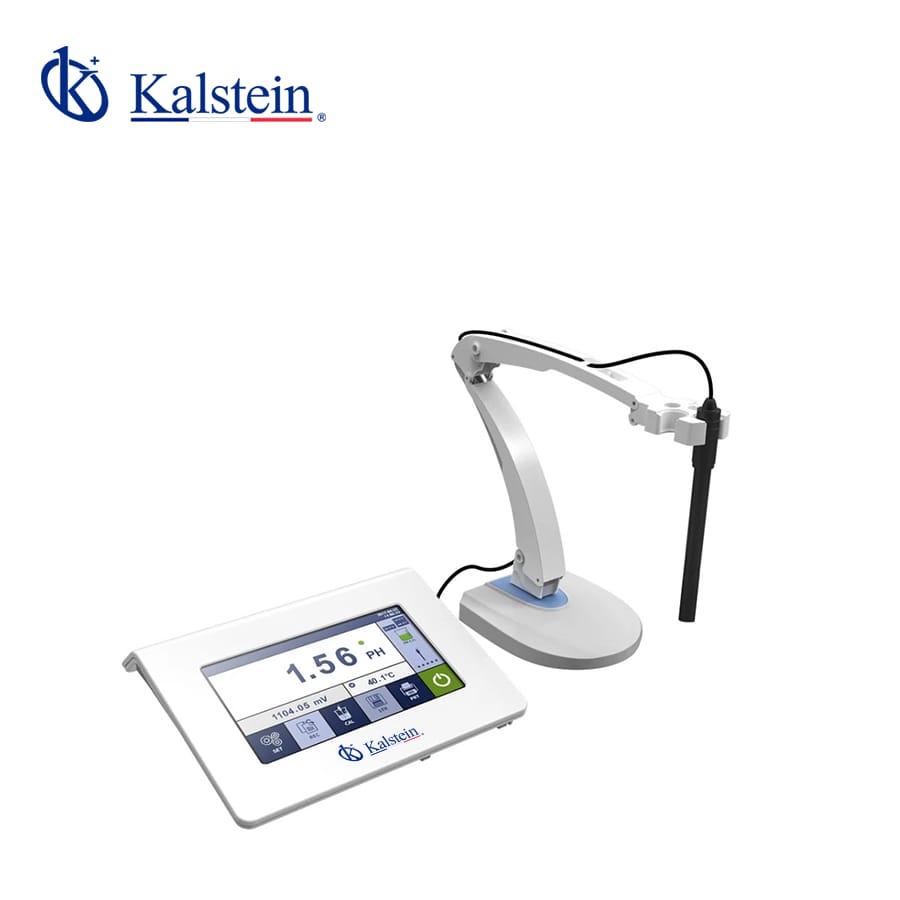

Benchtop Ph/DO Meter YR06383 is a highly sophisticated measuring device designed for precision and reliability in laboratory environments. Featuring a 7-inch colored capacitive touch screen with a high resolution of 1024×600, this meter offers exceptional clarity and sensitivity for easy operation. Built with a microprocessor chip, it incorporates intelligent functions such as automatic calibration, automatic temperature compensation (ATC), data storage, and wireless printing options. Users can effortlessly transfer real-time data to a mobile phone via Bluetooth, making this meter both versatile and functional. With the capability to store up to 1000 sets of test data, which can be saved and transferred easily to a USB memory stick for further analysis using Excel, this device stands out for its practicality in professional settings.

Price in the Market

The Benchtop Ph/DO Meter YR06383 typically finds its price range in the market to be between $1200 to $2000 USD, offering excellent value for its advanced features and high-quality performance. This price range is competitive considering the comprehensive functionalities the meter provides, catering to laboratories and research facilities looking for top-tier equipment.

Frequently Asked Questions

Q: Is the YR06383 compatible with standard buffer solutions?
A: Yes, it supports auto recognition of 25 buffers with options for Europe & USA, NIST, and China standards.

Q: Does it require a lot of maintenance?
A: The device requires minimal maintenance, primarily ensuring the electrodes are kept clean and properly stored.

Advantages and Disadvantages

Advantages:
– High-resolution touch screen for ease of use
– Automatic calibration and compensation features for accurateness
– Wireless data transfer capabilities
– Large data storage capacity

Disadvantages:
– The initial cost may be higher than simpler models
– Requires some familiarity with laboratory equipment for optimal operation

Product Use in the Field

The Benchtop Ph/DO Meter YR06383 is ideal for laboratory environments requiring accurate pH and dissolved oxygen measurements. It is used in educational institutions, environmental testing, water treatment facilities, and research laboratories. Its intelligent calibration and compensation features ensure reliable and precise data, making it a trusted tool for professionals.

Recommendations

To maximize the lifespan and performance of your YR06383 meter, always store electrodes properly and calibrate the device regularly. Regularly check for firmware updates from the manufacturer to ensure that the meter operates with the latest features and improvements. For any purchasing or technical inquiries, consider requesting a quotation on the Kalstein Plus platform.

Features

  • 7-inch colored capacitive touch screen with high resolution (1024*600) and high sensitivity.
  • Intelligent functions including automatic calibration, ATC, data storage, and wireless printing.
  • Real-time Bluetooth data transfer to mobile devices.
  • Smart electrode status display.
  • Storage for 1000 sets of test data, exportable to USB, compatible with Excel.

Technical Specifications

Model YR06383
pH
Measuring range (-1.999 ~ 19.999)pH
Resolution 0.1/0.01/0.001 pH
Accuracy Electrode: ±0.002 pH, Meter: ±0.01 pH
Auto calibration 1, 2, 3 point
Buffer Europe & USA, NIST, China standards
Input current ≤1×10-12 A
Input impedance ≥3×1012 Ω
Stability ±0.002 pH/3h
Temp. compensation (0 ~ 100)ºC, auto or manual
mV
Measuring range -1999.9mV ~ 0 ~ 1999.9mV
Resolution 0.1 mV
Accuracy ±0.03% FS
DO
Measuring range (0 ~ 20.00)mg/L(ppm) (0 ~ 200.0)%
Resolution 0.1/0.01 mg/L(ppm) 1/0.1 %
Accuracy Electrode: ±0.10 mg/L, Meter: ±0.40 mg/L
Response time ≤30s (25ºC, 90%response)
Residual current ≤0.1 mg/L
Temp compensation (0 ~ 45)ºC, auto
Salinity compensation (0 ~ 45) ppt, auto
Pressure compensation (80 ~ 105) kPa, auto
Auto calibration Air saturated by water; water saturated by air
Electrode type Polarographic
Temp.
Range (-10 ~ 110)ºC
Resolution 0.1ºC
Accuracy 5 ~ 60ºC:±0.4ºC Others: ±0.8ºC
Other
Display 7-inch colored capacitive touch screen
Data storage 1000 sets
Power 12V/1A
Output USB, RS232, Bluetooth
Ambient Temp. 15 ~ 30 ºC
Ambient Humidity ≤85%
IP grade IP54
Dimensions/N.W. 240×170×70mm/600g
Shipping Size/G.W. 470x430x85mm/2.6kg

Additional information

Weight 3 kg
Dimensions 47 × 43 × 8 cm
