Description

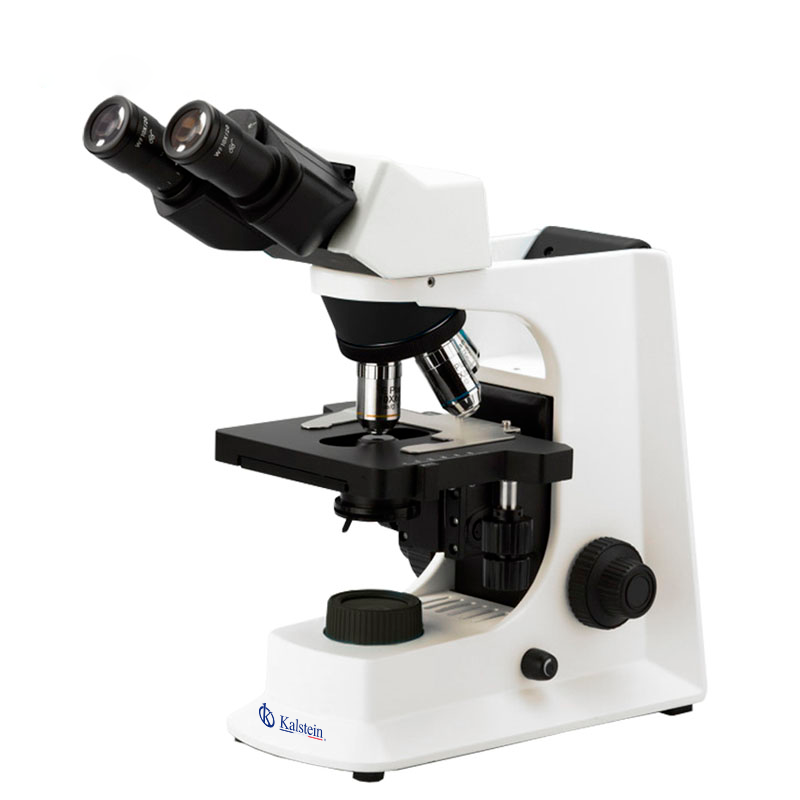

The Binocular Infinity Plan Laboratory Biological Microscope YR05787 – YR05788 is a sophisticated piece of scientific equipment designed with advanced optics for outstanding versatility in laboratory settings. This microscope features a Seidentopf binocular or trinocular head, inclined at 30° and rotatable at 360°, allowing for flexible viewing angles. It accommodates various objective lenses, including Achromatic, Plan, Infinity E-Plan, and Infinity Plan, ensuring precise and high-resolution viewing. Complemented by a mechanical stage of 145 mm x 140 mm that facilitates smooth sample movement and a 3W-LED illumination system, this microscope is perfect for discerning scientific observation and research.
Market Price
For those interested in acquiring a high-quality laboratory biological microscope like the YR05787 – YR05788, the price range in the market generally varies from $700 to $1510 USD. While exact prices can fluctuate based on specific configurations and retailer markups, these figures provide a baseline for budgeting purposes. Investing in such advanced optical equipment ensures reliable performance and longevity in various professional laboratory environments.
Frequently Asked Questions
What are the key differences between models YR05787 and YR05788?
Both models offer similar high-performance capabilities with distinct head configurations: YR05787 features a binocular head, whereas YR05788 offers a trinocular head compatible with camera attachments for photographic documentation.
Does the microscope come with a warranty?
Yes, the microscopes typically include a manufacturer’s warranty covering defects and ensuring customer support.
Can I upgrade or customize the microscope?
Yes, optional accessories include different objective lenses and illumination systems, enabling tailored upgrades based on specific laboratory needs.
Advantages and Disadvantages
One advantage of using the Binocular Infinity Plan Laboratory Biological Microscope is its adaptability and precision, supported by high-quality optics and ergonomic design that accommodates various viewing settings. A potential drawback may be its higher price point compared to entry-level microscopes, yet it offers significant value for comprehensive scientific research and analysis.
Product Usage in the Field
This microscope is widely used in biological and medical laboratories to examine cellular structures, tissues, and microorganisms. Its advanced phase contrast objectives allow for detailed imaging required in pathology and microbiology. Additionally, its portability and LED illumination system make it suitable for field research, with the innovative design supporting continuous discovery.
Recommendations
To maximize the efficiency and lifespan of your microscope, regular maintenance such as cleaning the lenses and calibrating the mechanical stage is recommended. Using dust covers during periods of inactivity can prevent potential damage. For enhanced functionality, consider integrating the microscope with compatible digital cameras for real-time imaging and documentation.
Features
- Inclined 30°, Rotatable 360° Head

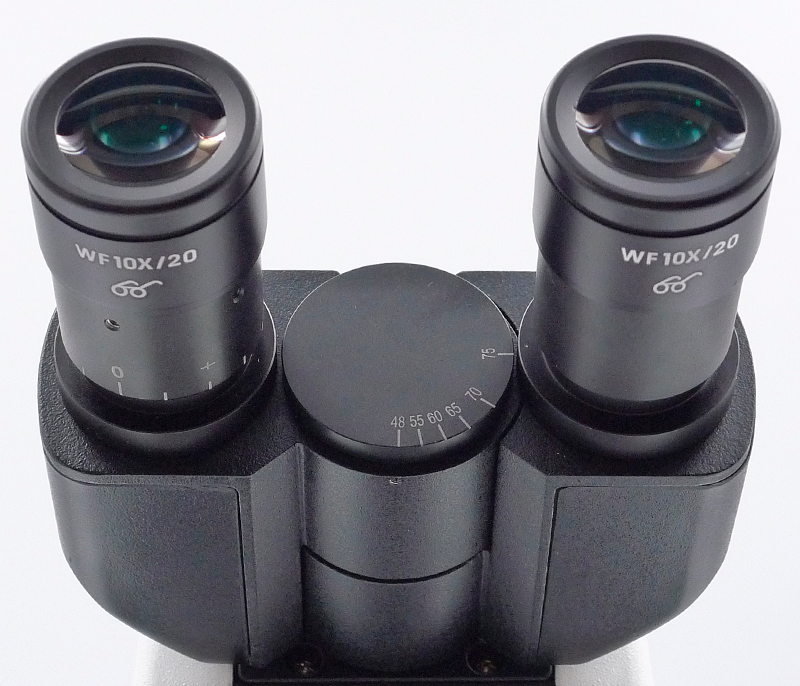

- High Eyepoint Eyepiece for Comfort
- Integrated Design of Eyepiece Lens Barrel
- Multiple Infinity Plan Objective Options
- Excellent LED Illumination System
Technical Specifications
| Model | Cata. No. | YR05787 | YR05788 | |
| Head | Seidentopf Binocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm | YR05788-op1 | ● | ○ |
| Seidentopf Trinocular Head Inclined 30°,Rotatable 360°, Interpupilary Distance 48-75mm, Light Split Fixed P20:E80 | YR05788-op2 | ○ | ● | |
| WF10X/20mm (High Eyepoint) | YR05788-op3 | ●● | ●● | |
| Nosepiece | Quadruple, Backward | YR05788-op4 | ● | ● |
| Quintuple, Backward | YR05788-op5 | ○ | ○ | |

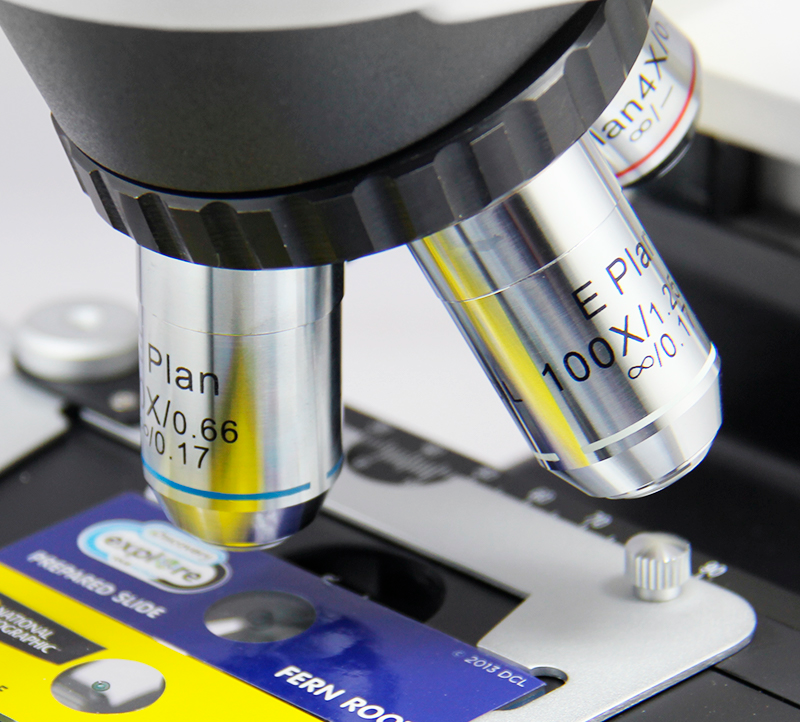

| Infinity Plan Objectives | PLAN 2.5x/0.07,W.D.=8.47mm | YR05788-op6 | ○ | ○ |
| PLAN 4X/0.10.W.D.=12.1mm | YR05788-op7 | ● | ● | |
| PLAN 10X/0.25.W.D.=4.64mm | YR05788-op8 | ● | ● | |
| PLAN 20X/0.40(S).W.D.=2.41mm | YR05788-op9 | ○ | ○ | |
| PLAN 40X/0.66(S).W.D.=0.65mm | YR05788-op10 | ● | ● | |
| PLAN 60X/0.80(S).W.D.=0.33mm | YR05788-op11 | ○ | ○ | |
| PLAN 100X/1.25(S,Oil).W.D.=0.12mm | YR05788-op12 | ● | ● | |
| PLAN 100X/1.15(S,Water).W.D.=0.19mm | YR05788-op13 | ○ | ○ | |

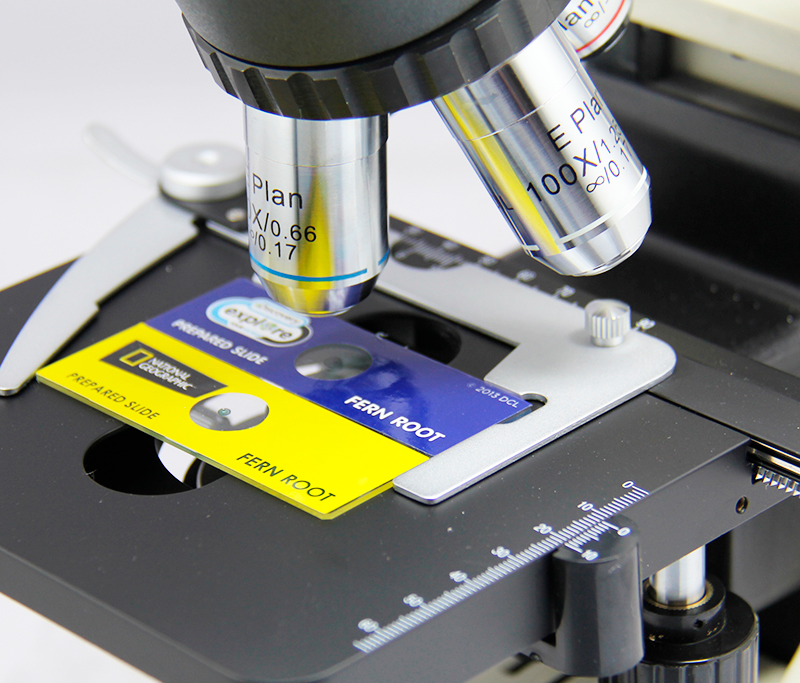

| Working Stage | Mechanical Stage Size: 145 mm×140mm, Travel: 76mmX52mm, Scale: 0.1mm, Double Slide Holder | YR05788-op14 | ● | ● |
| Rackless (Integrated) Stage, Size 140×135mm, | YR05788-op15 | ○ | ○ | |
| Travel Range 75×35mm, Double Slide Holder | – | |||

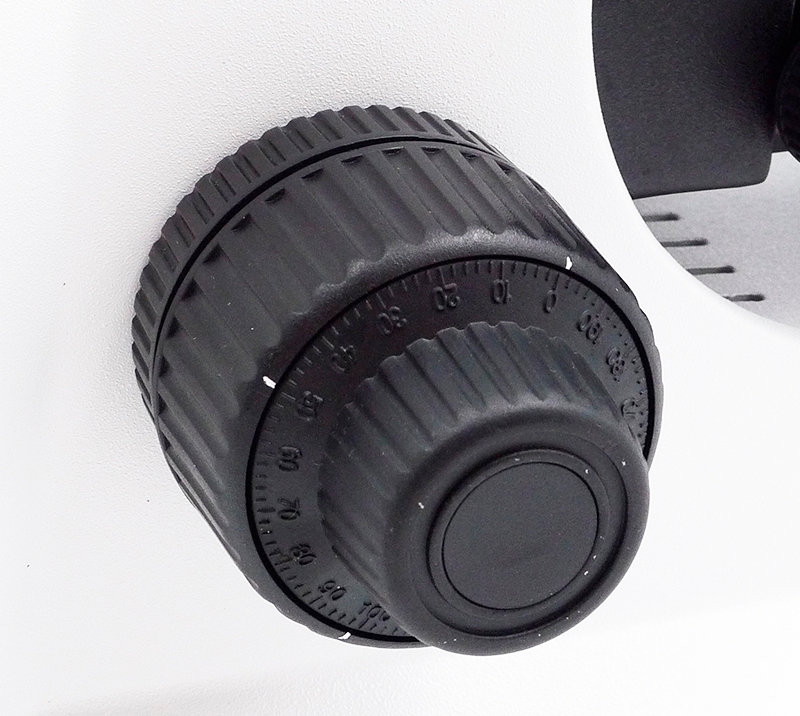

| Focusing | Coaxial Coarse & Fine Focusing, Coarse Focusing Travel Range: 26mm, Fine Focusing Travel Range: 2µm/Division | YR05788-op16 | ● | ● |

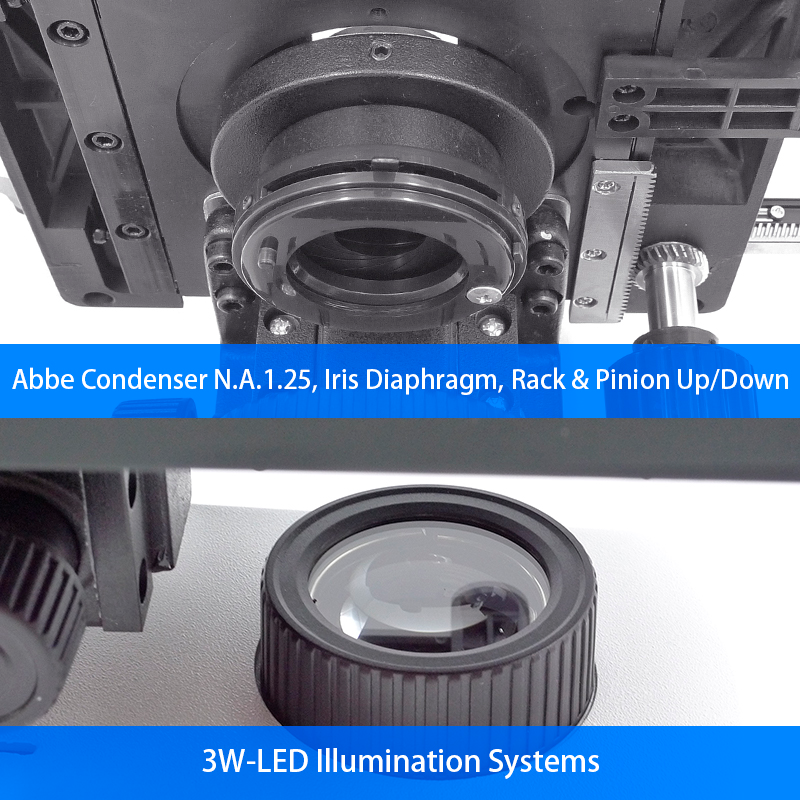

| Condenser | Abbe Condenser N.A.1.25, Iris Diaphragm, Rack & Pinion Up/Down, With Filter Holder | YR05788-op17 | ● | ● |
| Illumination | 3W-LED Illumination Systems | YR05788-op18 | ● | ● |

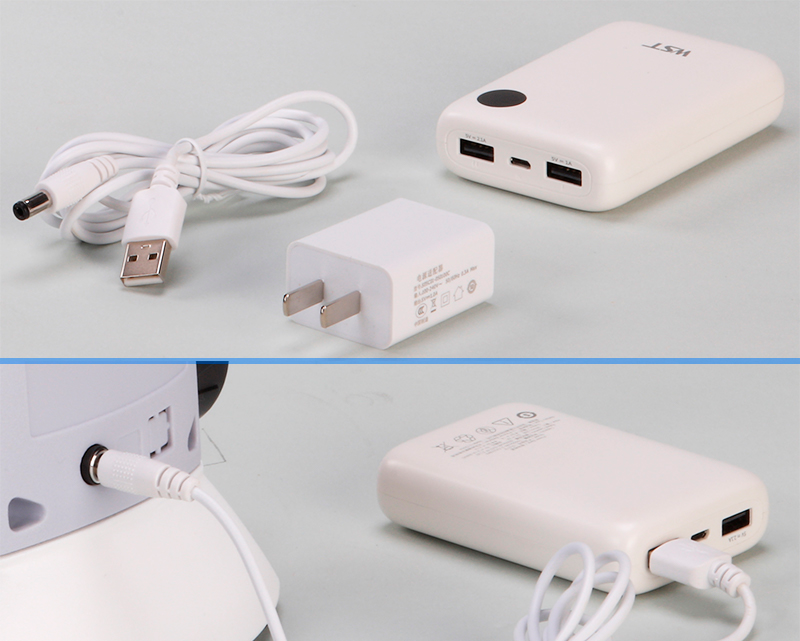

| Powered By Safety Low Voltage Charger, Input Wide Voltage 100V-240V, Output 5V1A, Support Power Bank Supply For Outdoor Use | – | |||
| 12V/20W Halogen Lamp, Power Supply Wide Voltage 100V~240V | YR05788-op20 | ○ | ○ | |
| 6V/30W Halogen Lamp, Power Supply Wide Voltage 100V~240V | YR05788-op21 | ○ | ○ | |
| Field Diaphragm | Upgrade To Kohler Illumnation | YR05788-op22 | ○ | ○ |
| Filter | Dia.45mm, Blue | YR05788-op23 | ○ | ○ |
| Dia.45mm, Green | YR05788-op24 | ○ | ○ | |
| Dia.45mm, Yellow | YR05788-op25 | ○ | ○ | |
| Dark Field | Dark Field Condenser, Dry, N.A.0.83-0.91, For 4x10x40x Objective | YR05788-op26 | ○ | ○ |
| Polarizing | Analyzer + Polarizer Set | YR05788-op27 | ○ | ○ |
| Phase Contrast | Infinity Plan Phase Contrast Objective 10x + Phase Contrast Slide 10x + Phase Contrast Condenser + Telescope 11x + Green Filter | YR05788-op28 | ○ | ○ |
| Infinity Plan Phase Contrast Objective 20x + Phase Contrast Slide 20x + Phase Contrast Condenser + Telescope 11x + Green Filter | YR05788-op29 | ○ | ○ | |
| Infinity Plan Phase Contrast Objective 40x + Phase Contrast Slide 40x + Phase Contrast Condenser + Telescope 11x + Green Filter | YR05788-op30 | ○ | ○ | |
| Infinity Plan Phase Contrast Objective 100x + Phase Contrast Slide 100x + Phase Contrast Condenser + Telescope 11x + Green Filter | YR05788-op31 | ○ | ○ | |
| Turret Phase Contrast Attachment | YR05788-op32 | ○ | ○ | |
| Infinity Plan Phase Contrast Objective 10x20x40x100x, Turret Phase Contrast Condenser 5-Holes, Telescope 11x, Green Filter | – | |||
| Adapter | C-Mount 0.5x, Focus Adjustable | YR05788-op33 | ○ | ○ |
| C-Mount 0.75x, Focus Adjustable | YR05788-op34 | ○ | ○ | |
| Mirror | Reflecting Mirror & Holder | YR05788-op35 | ○ | ○ |

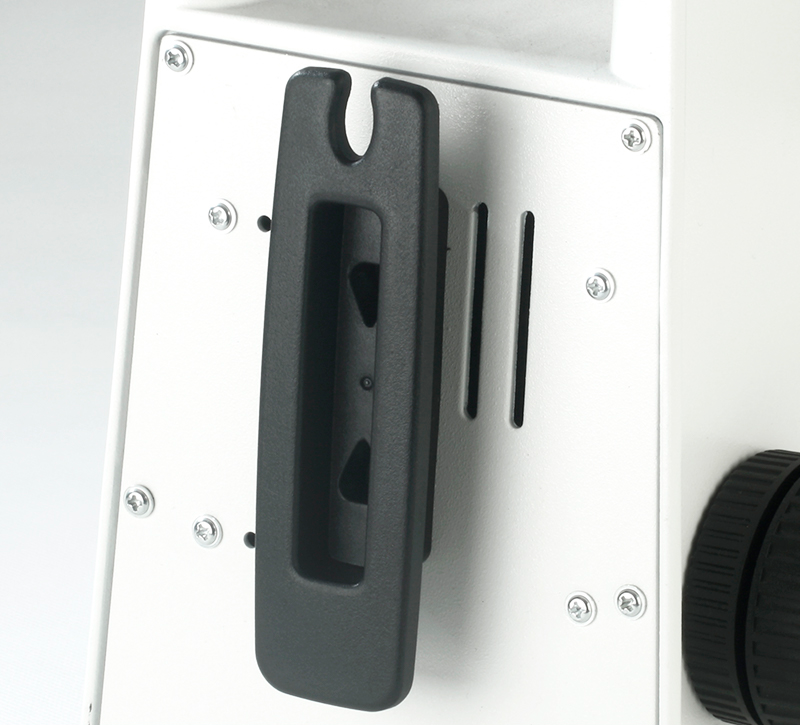

| Attachment | Wire Winding Device | YR05788-op36 | ○ | ○ |
| Package | Carton Size 390×280×450mm, 1 Unit/Ctn | |||
| Weight | Gross Weight: 7.5 kgs, Net Weight: 6.5 kgs | |||
| Note:”●”In Table Is Standard outfits,”○”Is Optional Accessories | ||||
