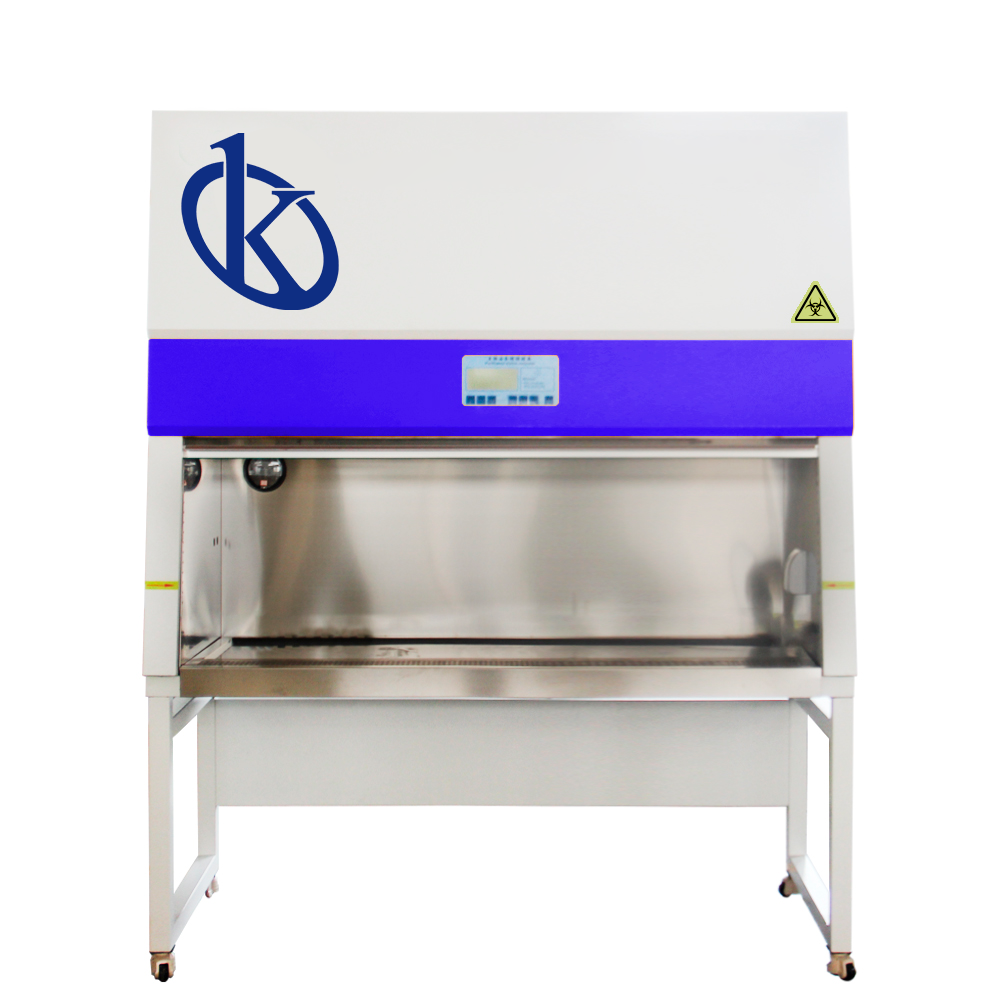

Biological Safety Cabinet 100% Exhaust Class II A2 Biosafety Cabinet YR05704 // YR05707

ManufacturerKalstein

Description

The Biological Safety Cabinet 100% Exhaust Class II A2 Biosafety Cabinet YR05704 // YR05707 is a top-tier solution for laboratories and research facilities requiring stringent safety standards. This high-performance cabinet features an air curtain isolation design that minimizes cross-contamination by maintaining a negative pressure vertical laminar flow. Its flexible glass door enhances user convenience while providing a safeguard with a positioning height limit alarm. Designed with a corrosion-resistant 304 stainless steel work environment, it guarantees durability and ease of disinfection. Additional features like waterproof power sockets and a special filter for controlling emission pollution make it an essential addition for any lab prioritizing safety and efficiency.

Market Price

The market price for a high-quality biological safety cabinet like this one typically ranges from $5800 to $6600. This range reflects the advanced technology and robust construction required for maintaining the highest standards of laboratory safety.

Frequently Asked Questions

What is the purpose of a biological safety cabinet? It is designed to provide personnel, product, and environmental protection against biohazardous or infectious agents.

How does the safety alarm system work? The cabinet is equipped with an alarm system to notify users when the glass door is incorrectly positioned, ensuring optimal safety during operation.

Advantages and Disadvantages

This model offers several advantages, including excellent contamination control, ease of maintenance, and compatibility with a range of laboratory environments. However, it may require professional installation and regular maintenance to ensure optimal performance.

Product Use in the Field

The biosafety cabinet is often used in microbiology, biotechnology, and pharmaceutical labs where the handling of pathogenic microorganisms is routine. Its design ensures the safety of operators while maintaining a sterile internal environment for sensitive experiments.

Recommendations

For best results, always operate the cabinet in a clean, controlled environment. Regularly inspect the filters and glass door alignment to ensure they function correctly. Consider using the Kalstein Plus platform for easy product sourcing and quotations.

Features

  • Air curtain isolation design minimizing cross-contamination.
  • Flexible and positionable glass door with safety alarms.
  • 304 stainless steel work environment resistant to corrosion.
  • LED LCD panel control with integrated UV protection.
  • Includes waterproof power sockets and sewage interface.

Technical Specifications

Model YR05704 YR05705 YR05706 YR05707
Cleanliness Class 100@≥0.5μm (US Federal 209E)
Number of colonies ≤0.5pcs/dish·hour (Φ90mm culture plate)
Average wind speed Inside the door 0.38±0.025m/s
Middle 0.26±0.025m/s
Inside 0.27±0.025m/s
Front suction wind speed 0.55m±0.025m/s(30% Efflux)
Noise ≤65dB(A)
Voltage AC single-phase 220V/50Hz
Maximum power consumption 400W 500W 600W 700W
Weight 170KG 210KG 250KG 270KG
Working area W1×D1×H1 840×650×620 1040×650×620 1340×650×620 1640×650×620
Overall dimension W×D×H 1000×800×2100 1200×800×2100 1500×800×2100 1800×800×2100
High efficiency filter specification and quantity 780×490×50× 1 520×380×70× 1 820×380×70× 1 1120×380×70× 1
Specification and quantity of fluorescent lamp/ultraviolet lamp 12W×1 / 20W×1 20W×2/20W×1 30W×2/30W×1 30W×2/30W×1

Additional information

Weight N/A
Dimensions N/A
Model

YR05704, YR05705, YR05706, YR05707
