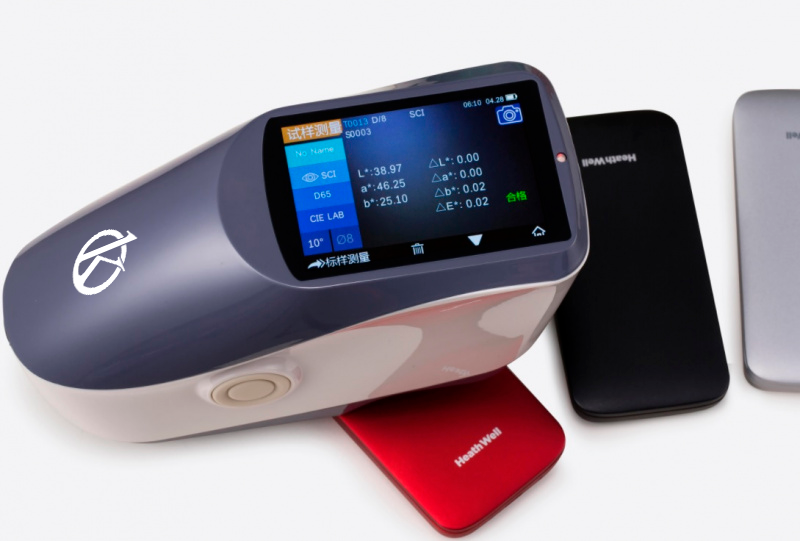

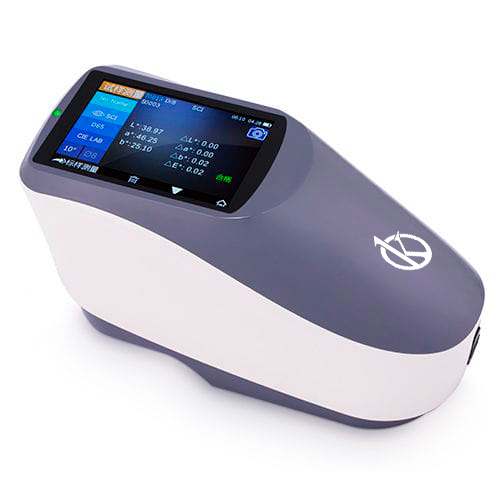

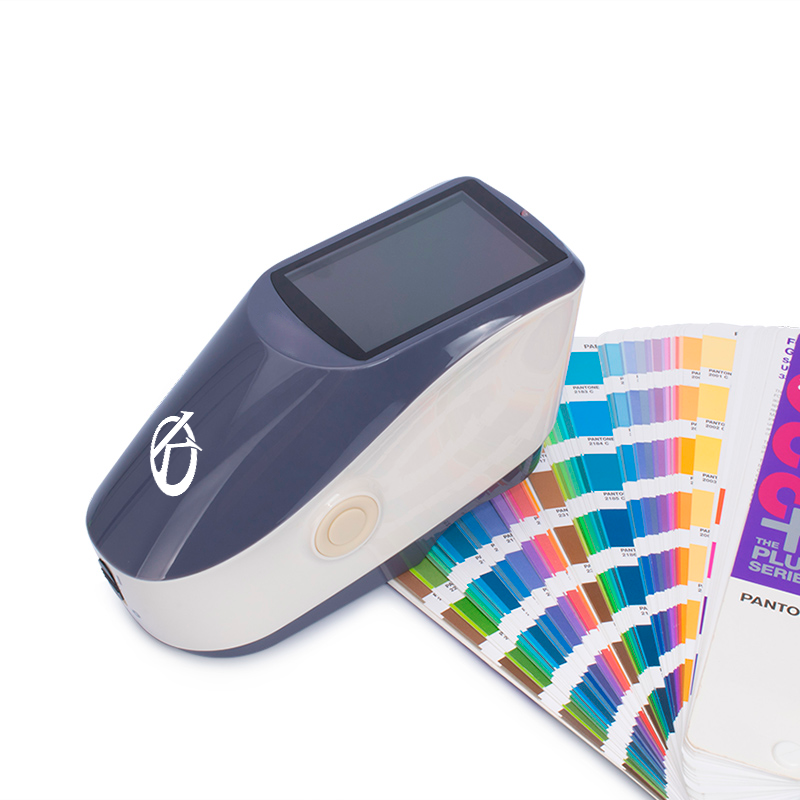

Grating Spectrophotometer with 20mm Aperture YR05503
Grating Spectrophotometer with 20mm Aperture YR05503 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.
The Grating Spectrophotometer with 20mm Aperture YR05503 is a cutting-edge device designed for accurately measuring the brightness factor and color coordinates of traffic signs, markings, and reflective films. This advanced spectrophotometer complies with various international standards, including GB 2893 and GB/T 18833, ensuring precise color analysis and quality control across a wide range of industries. Ideal for applications in laboratory color analysis and fluorescence sample measurement, the YR05503 model features a unique 20mm aperture, making it especially suited for evaluating the visibility and effectiveness of road safety signage. With its ability to customize the rectangular tolerance of polygons, this spectrophotometer is essential for professionals in paint, ink, textile, and garment industries, among others.
Market Price
The market price for spectrophotometers varies considerably depending on specifications and brand reputation. Generally, devices similar to the Grating Spectrophotometer YR05503 are priced between 3700 USD to 4500 USD. It's important to note that investing in a high-quality spectrophotometer like this can significantly enhance your precision in color measurement, saving both time and resources. To get the most competitive quote, we recommend utilizing the Kalstein Plus platform, where you can easily generate a quote and explore potential discounts.
Frequently Asked Questions
1. What makes the YR05503 model special? The 20mm aperture is specifically designed for traffic signs, providing accurate color measurements in compliance with international standards.
2. Can this device be used for fluorescence samples? Yes, the YR05503 is capable of fluorescence sample color measurement.
3. How portable is this spectrophotometer? Weighing just about 600g, it's lightweight and portable, making it convenient for both laboratory and field use.
Advantages and Disadvantages
One of the significant advantages of the YR05503 spectrophotometer is its high precision in color measurement, coupled with its capability to store and manage extensive data. The ease of customization for polygon tolerances is another plus. However, a potential disadvantage could be the initial learning curve associated with operating such a sophisticated device, although comprehensive manuals and customer support can mitigate this concern.
Product Use in the Field
This spectrophotometer is effectively used in real-world applications, such as ensuring the safety and visibility of road signs through precise color measurements. In industries like print and textiles, it's invaluable for maintaining consistent quality control and color accuracy for high-end productions.
Recommendations
To maximize your use of the YR05503, regular calibration using the provided white and black calibration boards is recommended. For enhanced durability, store the device in its protective cover when not in use. Leveraging the Kalstein Plus platform for software updates ensures your device remains at the forefront of technological advances.
Features
- 45/0 illumination/observation system
- Special 20mm aperture design for traffic signs
- High precision color analysis and data storage
- Compliance with international color measurement standards
- Accessible interface with USB and Bluetooth connectivity
Technical Specifications
| Model | YR05503 |
| Illumination/Observation system | 45/0(45 ring-shaped illumination, vertical viewing); |
| Comply with CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7,GB 2893、GB/T 18833 | |
| Features | 20mm aperture special design for traffic signs , It is used to measure the brightness factor and color coordinates of traffic signs, markings and reflective films. It contains GB 2893 and GB/T 18833 standard colors. It can customize the rectangular tolerance of polygons manually. |
| It is used for accurate analysis and transmission of laboratory color, also for Fluorescence sample color measurement . | |
| Apply in paints, inks, textiles, garments, printing and dyeing, printing etc industries for color transfer and quality control. | |
| Integrating Sphere Size | Φ48mm |
| Light Source | Combined LED Light, UV Light |
| Spectral separation device | Concave Grating |
| Detector | 256 Image Element Double Array CMOS Image Sensor |
| Wavelength Range | 400~700nm |
| Wavelength Pitch | 10nm |
| Half Bandwidth | 10nm |
| Reflectance Range | 0~200% |
| Measuring Aperture | Φ20mm |
| Color Space | CIE LAB,XYZ,Yxy,LCh,CIE LUV，HunterLAB,βxy |
| Color Difference Formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,ΔE（Hunter） |
| Other Colorimetric Index | WI(ASTM E313，CIE/ISO,AATCC,Hunter)， |
| YI(ASTM D1925，ASTM 313), | |
| MI (Metamerism Index), | |
| Staining Fastness, Color Fastness, Color Strength, Opacity,Supporting Colorimetric Polygon Tolerance | |
| Observer Angle | 2°/10° |
| Illuminant | D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4，F5，F6,F7(DLF),F8,F9，F10(TPL5),F11(TL84),F12(TL83/U30) |
| Display Data | Spectrogram/Values, Chromaticity Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset |
| Measurement Time | About 1.5s |
| Repeatability | Spectral reflectance: Standard deviation within 0.1% (400 nm to 700 nm: within 0.2%) |
| Chromaticity value:within ΔE*ab 0.04 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) | |
| Inter-instrument Error | Within ΔE*ab 0.2 (Average for 12 BCRA Series II color tiles) |
| Measurement mode | Single Measurement, Average Measurement(2-99) |
| Size(L*W*H) | 184*77*105mm |
| Weight | About 600g |
| Power source | Li-ion battery. 5000 measurements within 8 hours |
| Illuminant Life Span | 5 years, more than 3 million times measurements |
| Display | 3.5-inch TFT color LCD, Capacitive Touch Screen |
| Interface | USB, Bluetooth 4.0 |
| Data memory | Standard 1000 Pcs, Sample 30000 Pcs |
| Language | Chinese,English |
| Working Environment | Temperature: 0~40℃; Humidity: 0~85% (No Condensation);altitude: less than 2000 m |
| Storage Environment | Temperature: -20~50℃; Humidity: 0~85% (No Condensation)） |

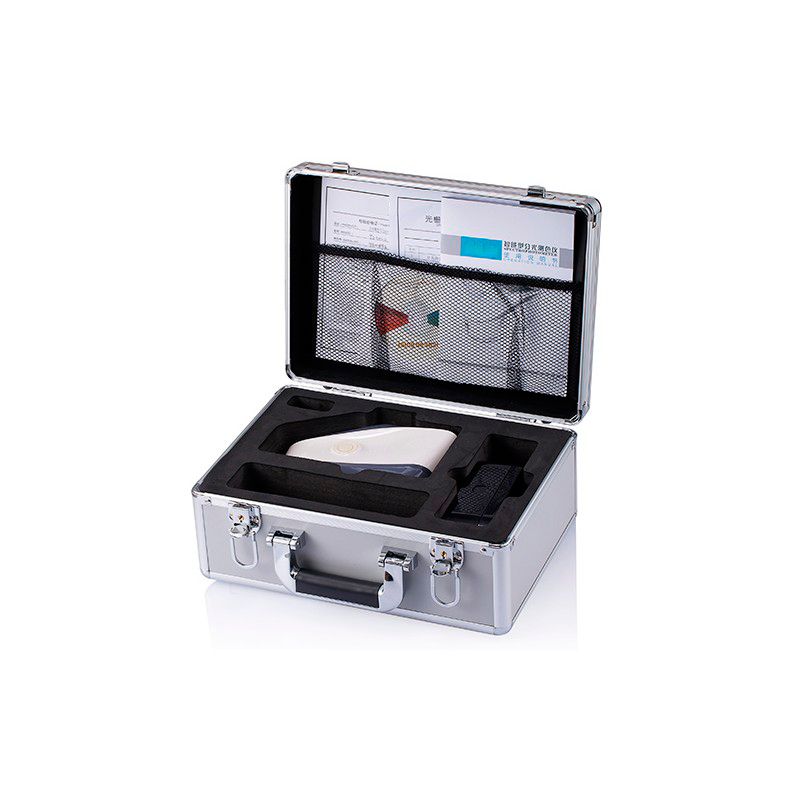

| Standard Accessory | Power Adapter, USB Cable, Built-in li-ion battery, User Manual, software(download from the website)White and Black Calibration Board, Protective Cover. |
| Optional Accessory | Micro Printer, Powder Test Box, Universal test components, Locating Plate |
| Notes: The specifications are subject to change without notice. | |
Technical specifications
| Dimensions | L 34 × W 13 × H 29 cm |
|---|---|
| Weight | 3 kg |
| Manufacturer | Kalstein |
