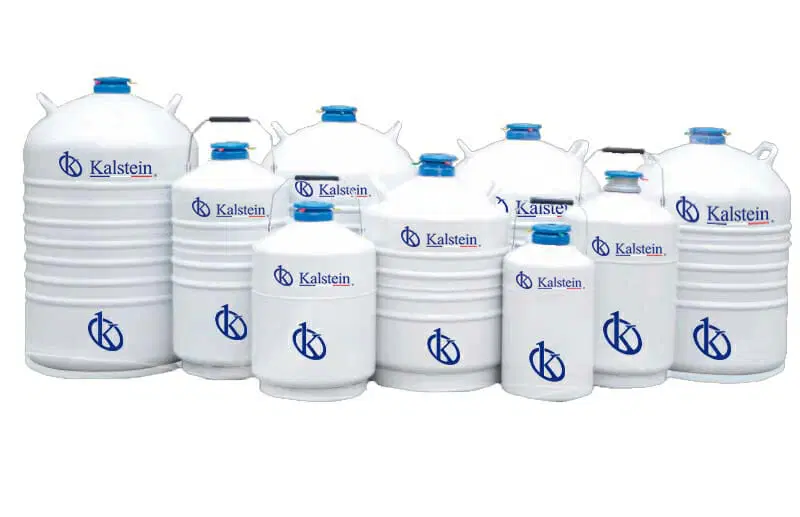

High Capacity Series for Storage or Transport (Round Canisters) YR05403 // YR05416

Description

The High Capacity Series for Storage or Transport (Round Canisters) YR05403 // YR05416 offers an innovative solution for efficient storage and transport needs. Crafted from strong yet lightweight aluminum, these round canisters are perfect for storing and transporting biological samples with utmost security and efficiency. The product features heavy-duty lockable enclosures, numbered index location points, and an ultra-low evaporation loss mechanism to ensure extended storage times. Its high thermal efficiency and robust construction make it an ideal choice for laboratories and medical facilities. With a 5-year vacuum warranty, you can rely on the durability and performance of these canisters for long-term use.

Market Price Overview

This series is competitively priced within the market, with products typically ranging from $500 to $800, depending on features and specifications. This price range reflects the quality and advanced technology used in these canisters, making it a worthwhile investment for businesses and institutions that handle biological samples.

Frequently Asked Questions

What materials are the canisters made from? The canisters are constructed from strong and lightweight aluminum, ensuring durability and ease of transport.
Are the canisters lockable? Yes, each canister is equipped with a heavy-duty lockable enclosure offering excellent security.
What is the evaporation loss rate? The ultra-low evaporation loss rate is designed to extend storage times significantly.

Advantages and Disadvantages

The main advantages of the High Capacity Series include its lightweight yet strong construction, excellent thermal efficiency, and extended storage capabilities. These canisters offer a high level of security and a 5-year vacuum warranty, ensuring reliability. However, one potential disadvantage is that additional roller bases are optional rather than included, which might be an additional cost for some users.

Product Use in the Field

These canisters are widely used in fields where the secure storage and transport of biological samples are essential. Their narrow neck design and superior thermal conductivity allow for reduced liquid nitrogen evaporation loss. This is particularly valuable in medical and laboratory settings, where the preservation of sample integrity is critical.

Recommendations

To maximize the use and longevity of the canisters, it’s recommended to regularly check the lockable features and ensure that the roller bases, if used, are properly attached and maintained. Additionally, routinely monitoring the evaporation loss rates can help in planning timely maintenance and refills, keeping the canisters in optimal condition for extended use.

Features

Strong and lightweight aluminum construction
Heavy-duty lockable enclosure for added security
Numbered index location points for ease of use
High thermal efficiency and ultra-low evaporation loss
5-year vacuum warranty for assured quality
Optional roller bases available for enhanced mobility

Technical Specifications

Model		YR05403	YR05404	YR05405	YR05406	YR05407	YR05408	YR05409
Maximum Capacity	No. of Canister	6（0）
	No. of Straws (Single Layer) (0.5ml each canister)	2244			792			2244
	No. of Straws (Single Layer) (0.25ml each canister)	5022			1788			5022
	No. of Straws (Double Layer) (0.5ml each canister)	3624			1284			3624
	No. of Straws (Double Layer) (0.25ml each canister)	8460			2832			8460
Performance	Volume of LN2 (L)	30			35			35
	*Static Evaporation (L/Day)**	0.21			0.12			0.22
	Static Holding Time (Day)**	147			286			159
Dimensions	Opening Diameter (mm)	80			50			80
	Height (mm)	709			749			753
	Outside Diameter (mm)	462			462			462
	Canister Outside Diameter (mm)	63			38			63
	Outside Height(mm)	120 / 276
	Empty Weight (kg)	13			14.2			14.5
	Full Weight (kg)	37			42.7			42.9
	Shipping Weight (kg)	18.3			20			20.7
Additional Features		Includes 6 canisters (height 276mm), lockable cap and protective jacket, roller base is optional	Includes 6 canisters (height 120mm), lockable cap and protective jacket, roller base is optional	Includes protective jacket only, roller base is optional	Includes 6 canisters (height 276mm), lockable cap and protective jacket, roller base is optional	Includes 6 canisters (height 120mm), lockable cap and protective jacket, roller base is optional	Includes protective jacket only, roller base is optional	Includes 6 canisters (height 276mm), lockable cap and protective jacket, roller base is optional

Model		YR05410	YR05411	YR05412	YR05413	YR05414	YR05415	YR05416
Maximum Capacity	No. of Canister	6（0）
	No. of Straws (Single Layer) (0.5ml each canister)	2244	792			2244	5124	792
	No. of Straws (Single Layer) (0.25ml each canister)	5022	1788			5022	11640	1788
	No. of Straws (Double Layer) (0.5ml each canister)	3624	1284			3624	9048	1284
	No. of Straws (Double Layer) (0.25ml each canister)	8460	2832			8460	20760	2832
Performance	Volume of LN2 (L)	35	20	30	35	35	35	50
	*Static Evaporation (L/Day)**	0.22	0.2			0.3	0.41	0.24
	Static Holding Time (Day)**	159	101	159	179	119	86	213
Dimensions	Opening Diameter (mm)	80	50			80	125	50
	Height (mm)	753	672	705	749	753	748	810
	Outside Diameter (mm)	462	394	462		462	462	462
	Canister Outside Diameter (mm)	63	38			63	97	38
	Outside Height(mm)	120/276
	Empty Weight (kg)	14.5	9.5	12.9	14.2	14.5	14.6	17.2
	Full Weight (kg)	42.9	27.9	37.1	42.8	43	43.5	60.3
	Shipping Weight (kg)	20.7	15.1	18.3	20.1	20.7	22	24
Additional Features		Includes protective jacket only, roller base is optional	Includes protective jacket only.	Includes protective jacket only, roller base is optional	Includes protective jacket only, roller base is optional	Includes protective jacket only, roller base is optional	Includes protective jacket only.	Includes protective jacket only, roller base is optional

Additional information

Weight	N/A
Model	YR05403, YR05404, YR05405, YR05406, YR05407, YR05408, YR05409, YR05410, YR05411, YR05412, YR05413, YR05414, YR05415, YR05416
