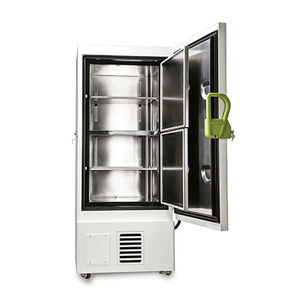

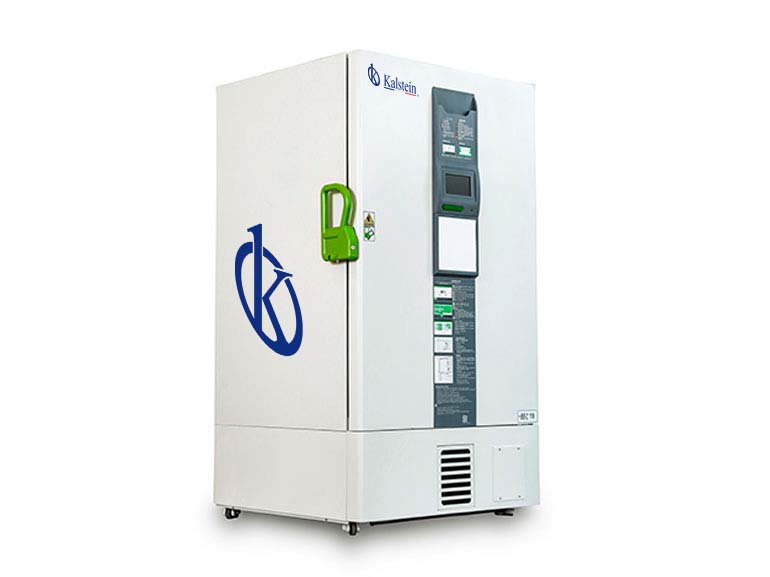

Lab LCD Touch Screen Ultra Low Temperature Freezer -86C YR05298

The Lab LCD Touch Screen Ultra Low Temperature Freezer -86C YR05298 is an advanced cooling solution designed for laboratories and research facilities. With a microprocessor-controlled cascade refrigeration system, it ensures precise temperature regulation from -40°C to -86°C. The unique three-door design minimizes frost buildup, providing optimal temperature control and energy efficiency. Its high-quality stainless steel construction and advanced insulation technology make it ideal for storing sensitive biological samples, offering storage capacity for up to 40,000 samples.

Market Price

Ultra-low temperature freezers of this caliber generally range between $8,000 and $8,800, depending on the manufacturer, features, and specifications. Such devices are an investment in reliability and energy efficiency, offering long-term savings in operational costs.

Frequently Asked Questions

What is the maximum storage capacity? The freezer can accommodate up to 40,000 biological samples. How energy-efficient is this model? With its dual-machine cascade refrigeration system, this model can achieve up to 35% energy savings compared to conventional freezers.

Advantages and Disadvantages

Advantages: The freezer offers precise temperature control, high energy efficiency, large storage capacity, and low noise levels, making it ideal for sensitive environments. Disadvantages: The initial cost is higher compared to standard freezers and requires manual defrosting, which might not be convenient for all users.

Product Usage in the Field

This ultra-low temperature freezer is used in medical and research laboratories to store vaccines, blood samples, and biological specimens. Its robust build and precise temperature maintenance make it crucial for preserving the integrity of sensitive samples.

Recommendations

To achieve maximum efficiency and longevity of the Lab LCD Touch Screen Ultra Low Temperature Freezer -86C YR05298, it is recommended to regularly check and clean filters, ensure proper door sealing, and conduct routine maintenance. For detailed pricing and tailor-made offers, make sure to request a quote or generate one automatically through the Kalstein Plus platform.

Features

• Environmentally friendly fluorine-free alkane refrigerant system, saving 50% energy
• Second-generation VIPIIPLUS vacuum insulation board technology
• Optimized for biological sample storage, with up to 40,000 sample capacity
• Microcomputer control for precise temperature management from -40°C to -86°C
• Manual defrosting with easily removable inner door for maintenance
• Integrated over-temperature alarm and power failure memory
• Three independent interior doors to minimize frost buildup

Technical Specifications

Model		YR05298
Specifications	Shelf/drawer QTY	Stainless steel shelf/3
	Cooling	Direct cooling
	Defrost	Manual
	Refrigerant	HC
	Power Consumption (kWh/24h)	11.6
	Noise (db)	50
	Ambient temperature (℃)	10~32℃
	Temperature range (℃)	-40~-86℃
Cooling system	Compressor brand/QTY	SECOP/2
	Sensor	PTC
	Temperature controller	Microprocessor
	Display	LCD display
Power	Voltage/frequency (V/Hz)	220/50Hz
	Power (W)	845W
	Current (A)	7A
Material	Inside material	Stainless steel
	Outside material	Color sprayed steel
	Insulation	PURF
Size	Capacity(L/cu.ft)	408/14.40
	NT./GT.(kg)	292/317
	Exterior size (W*D*H) (mm)	900*940*1940
	Interior size (W*D*H) (mm)	606*575*1180
	Package size (W*D*H) (mm)	955*960*2100
	CBM	1.93
	20GP/40GP/40HQ	12/24/24
Frozen Racks	Racks	16(5X4,4X4)
	Boxes (2 Inches)	288
	Samples (2ml)	28800
Alarm	High/low temperature	Y
	Power failure	Y
	Abnormal voltage	Y
	Sensor error	Y
	Filter screen check	Y
	Thermostat failure	Y
	Low battery	Y
	Condenser clean	Y
	High ambient temperature	Y
	Door ajar	Y
	Power failure backup system (alarm)	72h
Accessories	Castor	Y
	Inside door	2
	Test hole QTY/diameter	1/25MM
	USB port	Y
	Chart recorder	Optional
	Data logger	Optional
	Remote alarm port	Y
Optional	CO2 back up system	Optional
	LN2 back up system	Optional
Other	Certification	ISO.CE
