Description

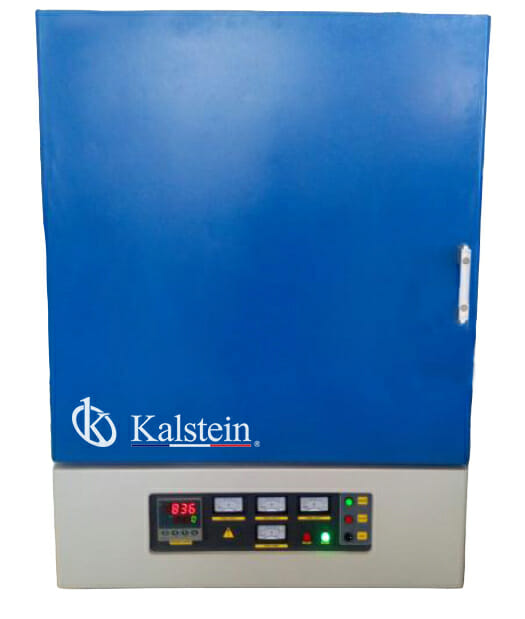

The Laboratory Muffle Furnace YR05284-1 stands out for its superior performance and energy efficiency. Built with high purity fibrous alumina insulation, it ensures maximum energy savings, reducing power consumption by up to 80% compared to traditional models. Its robust double-layer structure, complete with a cooling fan, ensures safety by keeping the furnace exterior cool to the touch. Designed for precision and durability, this furnace is ideal for a variety of high-temperature applications in laboratory settings.
Market Price
In the market, muffle furnaces with similar specifications typically range from $12,000 to $13,100. The Laboratory Muffle Furnace YR05284-1, with its advanced features and efficiency, positions itself competitively within this price range. For exact pricing, we recommend requesting a personal quote, which you can easily do through our Kalstein Plus platform.
Frequently Asked Questions
What is the maximum temperature this furnace can reach?
The maximum temperature is 1700°C, with a continuous working temperature of 1600°C.
What type of heating element does it use?
The furnace utilizes a MoSi2 heating element known for its durability and efficiency.
Advantages and Disadvantages
Advantages: High energy efficiency, precise temperature control, robust construction, and safety features. Disadvantages: It requires a 380V power supply, which may not be available in all facilities.
Field Use
The Laboratory Muffle Furnace YR05284-1 is extensively used in industries such as metallurgy, material science, and ceramics for applications like sintering, annealing, and ceramic processing. Its precise temperature control is ideal for conducting experimental procedures that require specific thermal conditions.
Recommendations
To ensure optimal performance, it’s recommended to regularly calibrate the temperature controller and check the heating elements for wear. Use the protection features to safeguard against overheating, and always refer to the user manual for specific operational guidelines.
Features
- High purity fibrous alumina insulation
- Heavy duty double-layer structure with cooling fan
- PID automatic control with fine temperature tuning
- Energy efficient, consuming 60-80% less power
- Robust safety features including overheating protection
Technical Specifications
| Model | YR05284-1 |
| Rated voltage | AC 380V 3 phase or 1 phase 50/60Hz |
| Power | 18kw |
| Chamber size | 400x400x400mm, 64L |
| Max. Temperature | 1700 °C |
| Continuous working temperature | 1600 °C |
| Max. Heating Rate | 30 °C /min; Suggest to use 10°C/min under 1400°C, 1400°C-1600°C 5°C/min, >1600°C 2°C/min; |
| Temperature controller | PID automatic control and auto-tune function. 30 programmable segments for precise control. Built in protection for over-heating and broken thermocouple |
| Temperature Accuracy | +/- 1°C |
| Heating Element | MoSi2 heater |
| Thermocouple | B type |
| Standard parts | Reserve heater 2pcs, crucible tongs 1pc, asbestos gloves 1 pair, one user manual |
