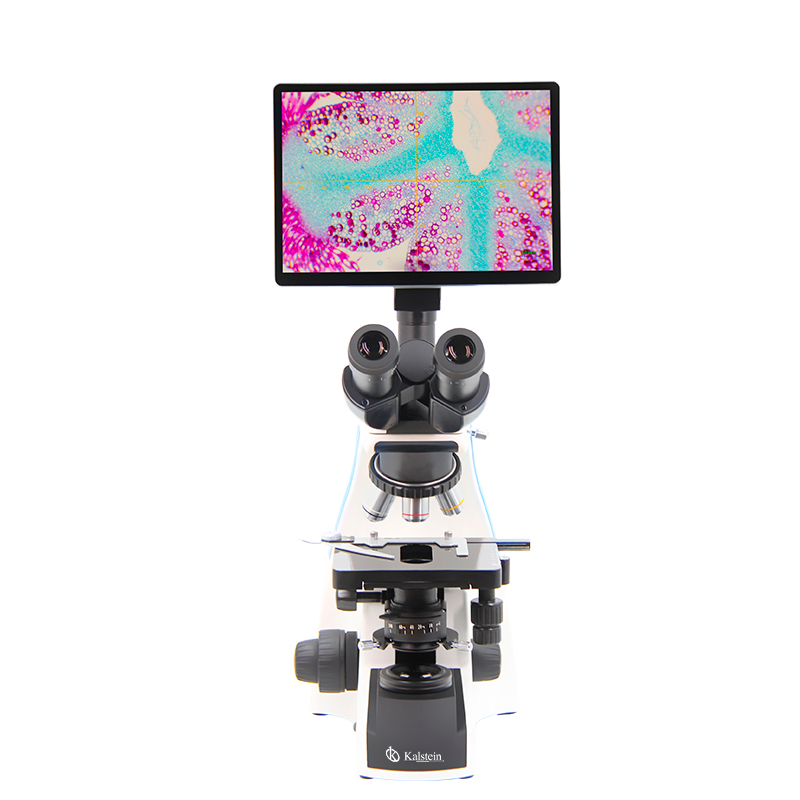

LCD Touch Screen Digital Microscope YR05782
LCD Touch Screen Digital Microscope YR05782 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.

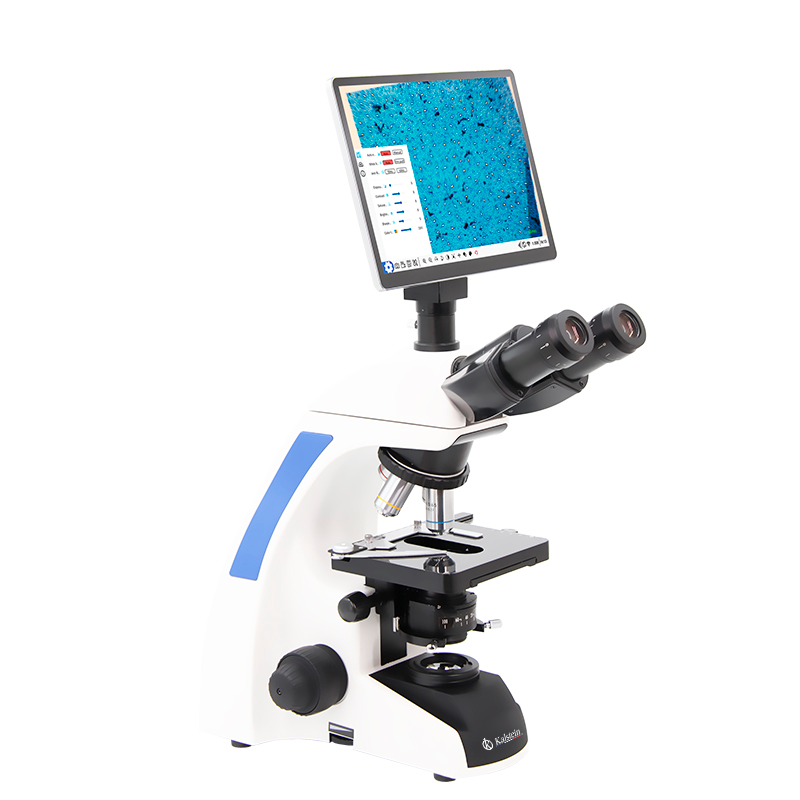

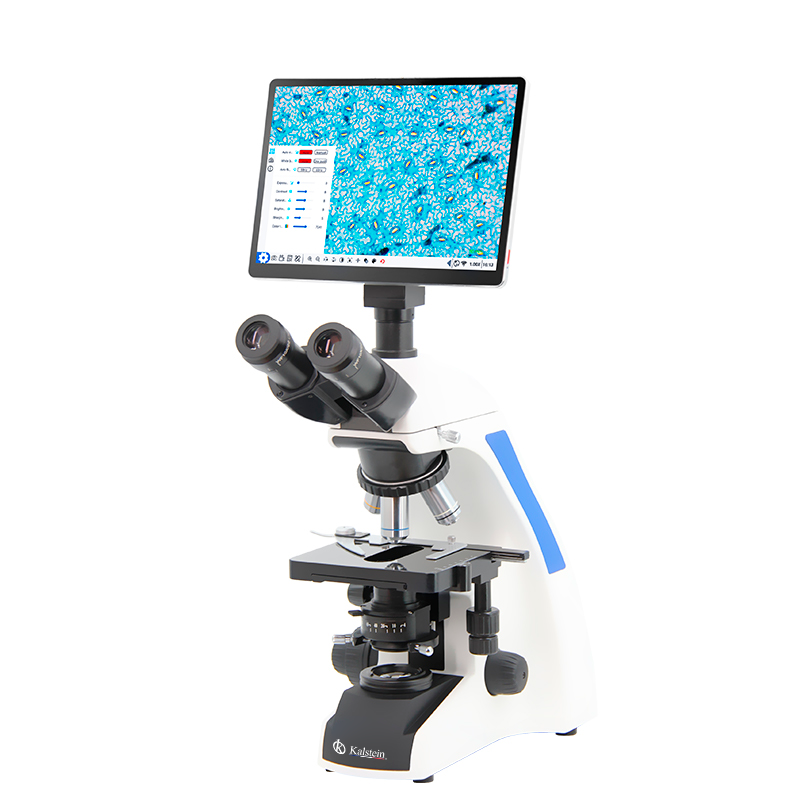

The LCD Touch Screen Digital Microscope YR05782 is an innovative device that combines advanced optical technology with modern digital features, offering a 10.5" LCD touch screen with Android system integrated. The microscope is equipped with high eyepoint wide field eyepiece WF10x/20mm and robust objectives ranging from 4x to 100x, ensuring excellent clarity and detail for a variety of scientific applications. This microscope is perfect for laboratory use, offering seamless operation with its high-definition touch screen and versatile connectivity options like USB and HDMI. Additionally, it comes with a built-in measuring software, which allows precise measurements and annotations, making it a powerful tool for researchers and professionals.
Market Price
The LCD Touch Screen Digital Microscope YR05782 is available at an average market price ranging between 1100 USD to 1900 USD. This pricing is competitive considering the high-end features and advanced functionalities it provides, making it an excellent investment for laboratories and educational institutions. For an exact quote, we invite you to contact us or generate an instant quotation through our Kalstein Plus platform.
Frequently Asked Questions
Q: Does the microscope come with any warranty?
A: Yes, the microscope comes with a standard manufacturer's warranty that covers defects in materials and workmanship.
Q: Is the measuring software compatible with other operating systems?
A: The S-Eye2.0 measuring software is specifically optimized for the built-in Android system, ensuring smooth operation without the need for additional compatibility adjustments.
Advantages and Disadvantages
Advantages: The main advantages of the YR05782 include its large, intuitive touch screen, high quality optical components, and integrated Android system. These features facilitate ease of use and precision in scientific observations and measurements.
Disadvantages: One potential drawback may be the learning curve associated with its advanced functionalities and digital features, especially for users not familiar with Android systems.
Product Use in the Field

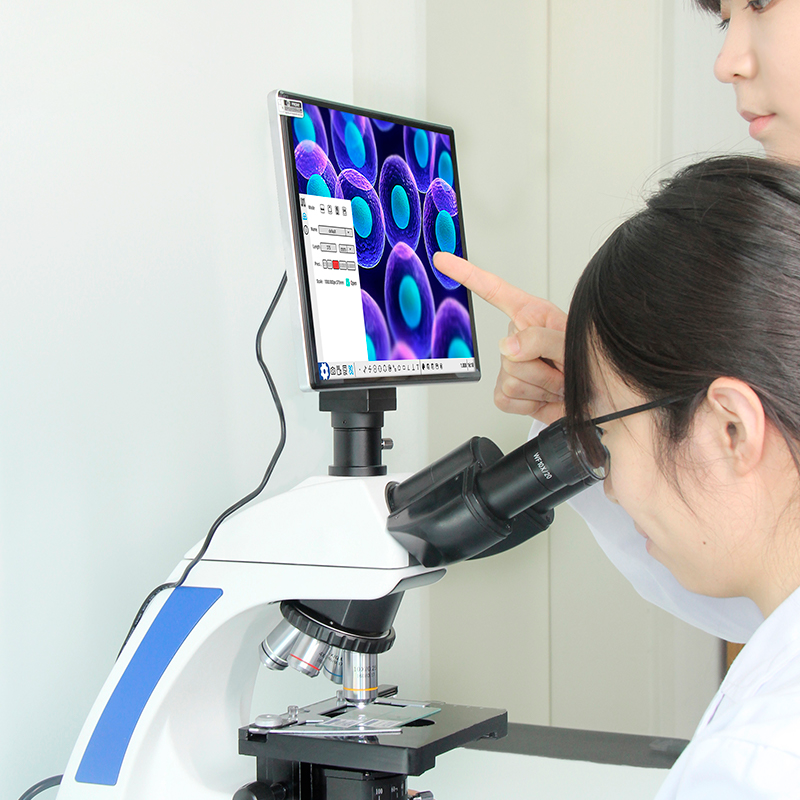

The LCD Touch Screen Digital Microscope YR05782 is extensively used in fields such as biology, materials science, and education. Its ability to capture images and perform real-time measurements makes it invaluable in laboratory environments, enabling researchers and students to conduct detailed analyses and record their findings with great accuracy.
Recommendations
To maximize the benefits of your YR05782 microscope, ensure that the device is regularly cleaned and maintained following the manufacturer's guidelines. It's also recommended to familiarize yourself with the integrated software to fully utilize its measurement and annotation capabilities. For any upgrade or repair needs, use only compatible accessories and consult with authorized service providers.
Features
- 10.5" LCD touch screen with Android system and measuring software
- High eyepoint wide field eyepiece WF10x/20mm dia.30mm
- Achromatic HC 4x,10x,40x100x objective, upgradeable to infinity
- Double layer mechanical stage 143*132mm, upgradeable to 216x150mm
- 3W LED Kohler illumination with removable light house for easy maintenance
Technical Specifications
| Model | YR05782 | |

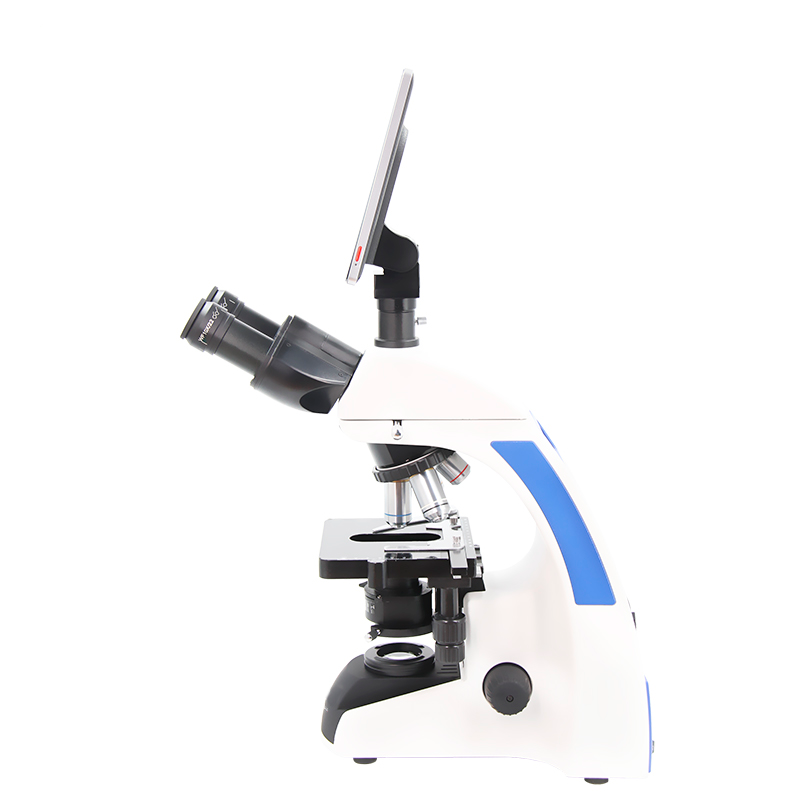

| Head | Trinocular Head, 30° Inclined, Interpupillary Distance 48-75mm, Both Eyepiece Tube Diopter Adjustable | |

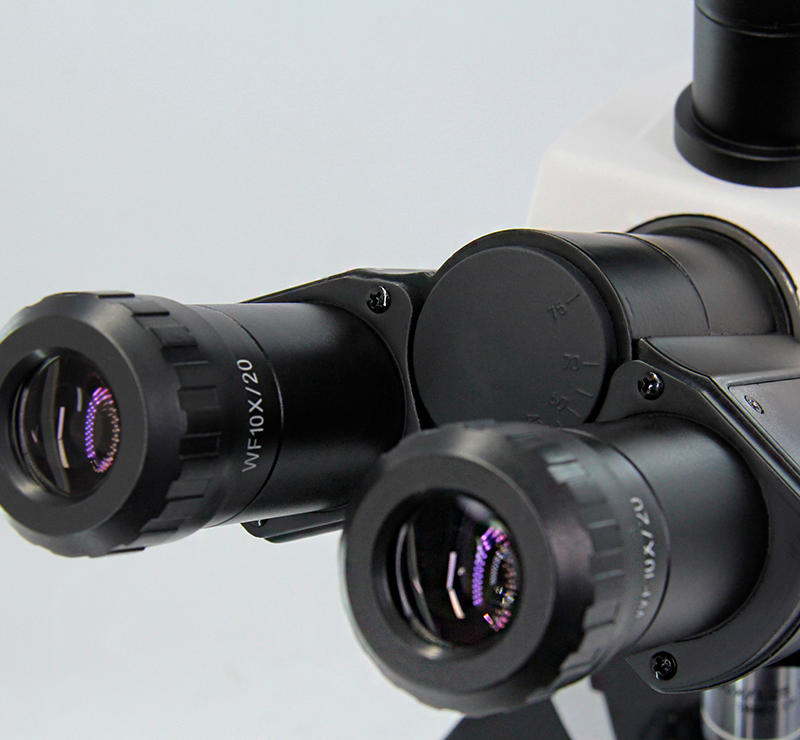

| Eyepiece | WF10x/20mm, Diopter Adjustable, Dia. 30mm | |

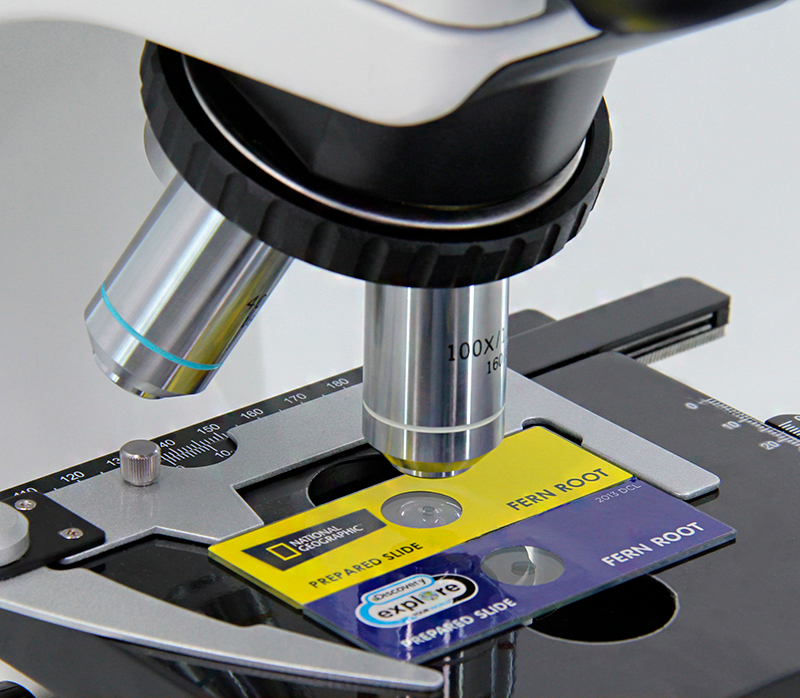

| Objective | High Contrast Chromatic Free 4x, 10x, 40x(S), 100x(Oil, S) | |
| Focus Knob | Coaxial Coarse & Fine Focusing, Fine Division 0.002mm, Coarse Stroke 37.7mm/Rotation, Focusing Range 24mm | |
| Nosepiece | Quadruple, Backward With Click Stops | |
| Stage | Double Layer Mechanical Stage 142x132mm, Graphite Surface, Moving Range 75x50mm | |
| Condenser | Abbe Condenser N.A.1.25, Center Adjustable | |
| Light Source | 3W LED Brightness Adjustable | |
| Adapter | C-Mount 0.5x | |
| Package | 53*32.5*53.5cm/11.5Kg, 1 Set/Carton | |
| 10.5“ Touch Screen Android Pad Digital Camera, 8.0M1 Newly Update 2022! | ||
| Spec. | Model | YR05782-op0 |
| Category | HD All-in-One Android 11 System Tablet Digital Camera | |
| Sensor | 1/1.8” CMOS Sensor | |
| Effective Pixel | 8M, 4K | |
| Screen | 10.5” High-Definition Touch Screen | |
| Operation System | Android 11 | |
| WIFI | 2.4GHz/5GHz Dual-band WIFI, Support WIFI6 | |
| Bluetooth | Bluetooth 5.0 | |
| Output | USB3.0*2, USB2.0*1, HDMI, Gigabit LAN Port | |
| Pixel size | 2.0um*2.0um | |
| Power | DC-12V/2A | |
| Function | Basic Function | Android Interaction, Installed S-Eye2.0 Measure Software |
| Image Adjustment | Brightness, Contrast, Saturation, Color Temperature | |
| Camera Function | Mirror, Flip, Freeze, Black and White | |
| UI Interface | Support User-friendly Mouse & Keyboard, And Touch Screen Operation | |
| Photo | 8.0M Image Capture | |
| Video | 1080P Video | |
| Storage | Still Photo And Video Recording, Picture Preview | |
| Marking | Point Coordinates, Crosshairs, Coordinate System, Text Annotations | |
| Length Measurement | Straight Line, Folded Line, Curve Length, Parallel Line Distance, Point Line Distance | |
| Geometric Measurement | Line Segment Length, Radius Fixed Circle, 2 Point Fixed Circle, 3 Point Fixed Circle, Concentric Circle, Radius Fixed Circle | |
| Geometric Area Measurement | Polygon, Rectangle | |
| Measurement System | Built-in S-Eye Software | |
| Package | Box Size | 237*169*10.5mm |
| Weight | 0.6kg | |
| Accessory | DC-12V/2A Power Adapter | |
| Laboratory Biological Microscope Optional Accessories | ||
| Eyepiece | WF16X/F.N.15mm | YR05782-op1 |
| WF20X/F.N.12mm | YR05782-op2 | |
| Nosepiece | Backward Quintuple Nosepiece | YR05782-op3 |
| Dark Field | Dark Field Condenser, Dry, N.A.1.25 | YR05782-op4 |
| Dark Field Condenser, Immersion, N.A.1.25~1.36 | YR05782-op5 | |
| Polarizing | Polarizer & Analyzer | YR05782-op6 |

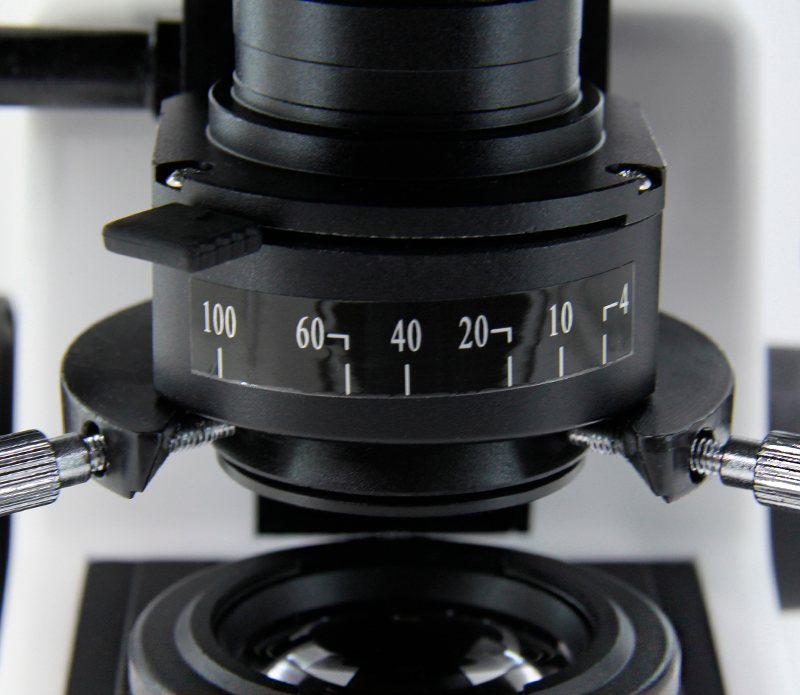

| Phase Contrast | Turret Disc Phase Contrast Condenser, For 10x,20x,40x,100x | YR05782-op7 |
| Infinity Plan Phase Contrast Objective 10x,20x,40x,100x | ||
| Centering Telescope 10x | ||
| Optional For B, T Only | ||
| Adapter | Eyepiece Tube Adapter | YR05782-op8 |
| C-Mount 1.0x | YR05782-op9 | |
Technical specifications
| Dimensions | L 53 × W 32.5 × H 53.5 cm |
|---|---|
| Weight | 11.5 kg |
| Manufacturer | Kalstein |
