Description

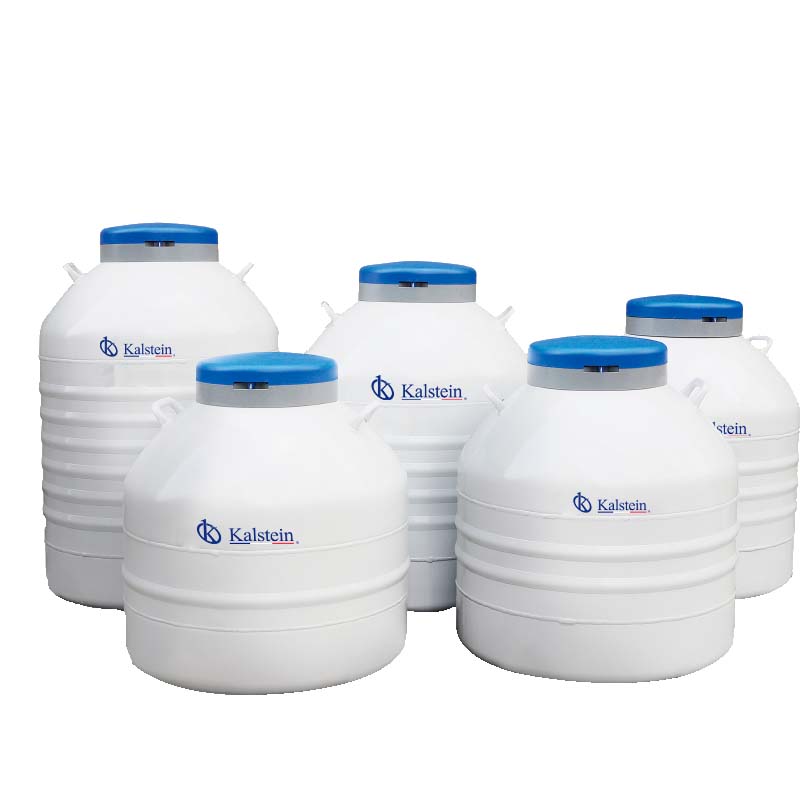

The Medical Medium Sized Storage Series YR05357 // YR05364 offers superior storage solutions for critical samples, designed with advanced technology to minimize liquid nitrogen (LN2) evaporation and maximize sample safety. These storage units, compatible with blood bag storage, feature a durable aluminum construction and are equipped with heavy-duty lockable enclosures to ensure security. With a capacity range of 65 to 175 liters, each model is engineered to provide an ultra-low temperature environment that preserves your samples effectively, even in vapor phase below -190°C.
Market Price
For those interested in acquiring the Medical Medium Sized Storage Series, the market offers these high-quality products at a competitive average price range of $2200 to $3000. This investment ensures that laboratories and medical facilities have reliable and efficient storage for their valuable samples and materials, without compromising on security or performance.
Frequently Asked Questions
- What is the maximum storage time? The static holding time varies between 83 to 127 days depending on the model.
- Is temperature monitoring available? Yes, temperature monitoring is available for these storage units.
- Are these storage units compatible with all cryobox brands? Yes, they are compatible with all major cryobox brands.
Advantages and Disadvantages
Advantages: The storage series is designed with ultra-low LN2 evaporation loss, advanced vacuum technology, and superinsulation, ensuring maximum efficiency and sample preservation. It is also highly secure, thanks to the lockable enclosure.
Disadvantages: While these products offer numerous benefits, they require a significant initial investment, which may not be feasible for smaller facilities.
Field Use
The Medical Medium Sized Storage Series is frequently used in both laboratory and clinical settings. It is particularly beneficial for storing valuable biological samples over extended periods, allowing researchers and medical professionals to maintain the integrity of their samples across various research and treatment scenarios.
Recommendations
For optimal performance, it is recommended to regularly monitor the LN2 levels and inspect the vacuum integrity of the storage units. Additionally, using a roller base may enhance mobility and ease of access to stored contents.
Features
- Durable aluminum construction
- Compatible with all major cryogenic box brands
- Large opening diameter and capacity
- Ultra-low evaporation loss
- 65 to 175 liter capacity
- 5-year vacuum warranty
Technical Specifications
| Model | YR05357 | YR05358 | YR05359 | YR05360 | YR05361 | YR05362 | YR05363 | YR05364 |
| Maximum Storage Volume | ||||||||
| 2ml Storage Vials (100/box) | 2400 | 3000 | 3600 | |||||
| Static Holding Time** (Day) | 4 | 5 | 6 | |||||
| 5ml Storage Vials (81/box) | – | 972 | 1458 | |||||
| Layers in Rack | – | 2 | 3 | |||||
| Function | ||||||||
| Liquid Nitrogen Volume (L) | 65 | 95 | 115 | |||||
| Static Evapouration Rate* (%/d) | 0.78 | 0.9 | 0.9 | |||||
| Static Holding Time** (Day) | 83 | 105 | 127 | |||||
| Dimensions | ||||||||
| Neck Opening (mm) | 216 | 216 | 216 | 216 | 216 | |||
| Overall Height (mm) | 712 | 774 | 846 | 846 | 846 | |||
| Overall Diameter (mm) | 681 | 681 | 681 | 681 | 681 | |||
| Empty Weight (kg) | 39.3 | 38.3 | 42.5 | 42.3 | 43.7 | 42.3 | ||
| Full Weight (kg) | 81.5 | 80.8 | 112.3 | 132.8 | 133.5 | 132.8 | ||
| Shipping Weight (kg) | 63.8 | 61.8 | 67.9 | 72.9 | 71.2 | 72.9 | ||
| Aditional Features | Includes 6 racks (4 layers),
9*9 cryoboxes, lockable cap, no protective jacket, roller base is optional |
Includes lockable cap,
no rack, no Protective jacket |
Includes 6 racks for 5ml, 2 layers in total,
12pcs of 5ml 9*9 cryo boxes and lockable cap included, no protective jacket, roller base is optional |
Includes 6 racks (5 layers),
9*9 cryoboxes, lockable cap, no protective jacket, roller base is optional |
Includes lockable cap,
no rack, no protective jacket |
Includes 6 racks for 5ml,
3 layers in total, 18pcs of 5ml 9*9 cryo boxes and lockable cap included, no protective jacket, roller base is optional |
Includes 6 racks (6 layers),
9*9 cryoboxes, lockable cap, no protective jacket, roller base is optional |
Includes lockable cap,
no rack, no protective jacket |
