Description

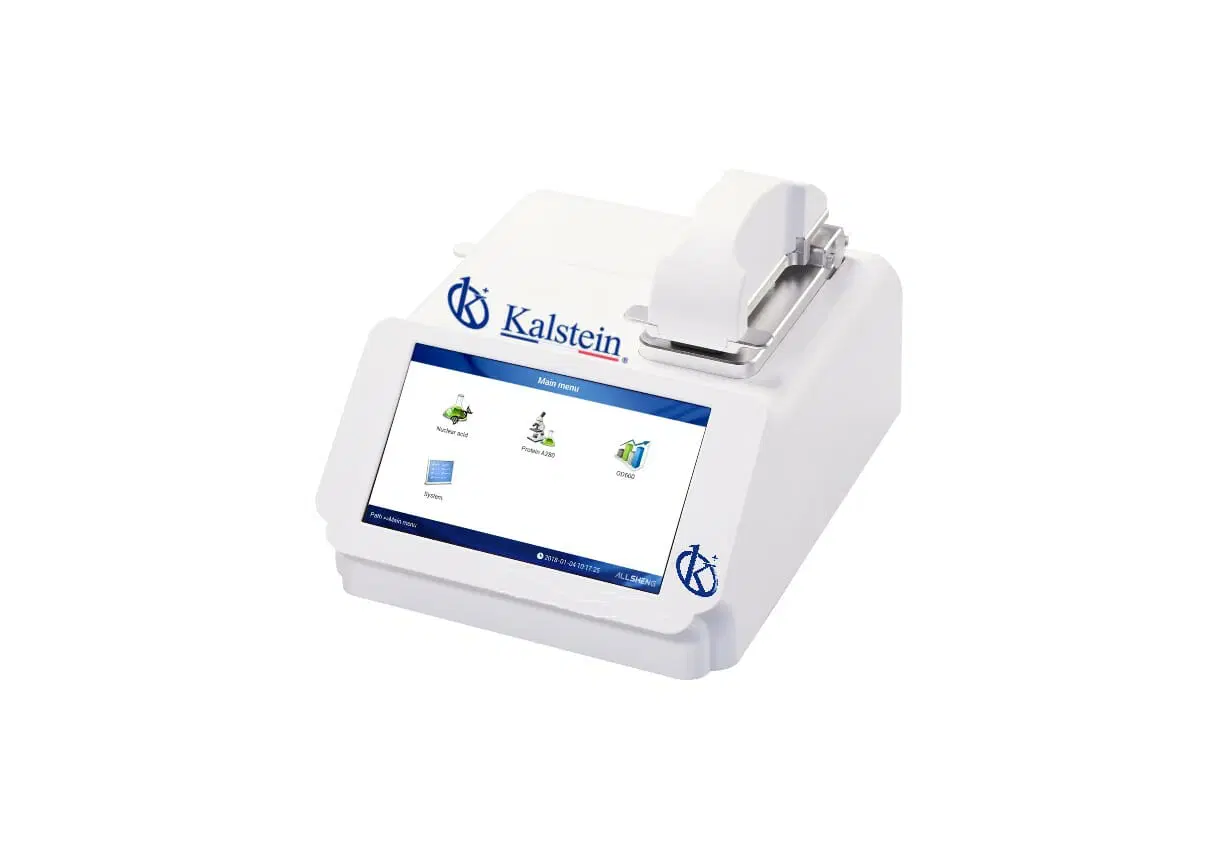

The Micro-Spectrophotometer YR06034 is a cutting-edge ultra-micro nucleic acid analyzer designed to assess the concentration and purity of DNA and RNA with remarkable precision. This innovative instrument requires only 1 to 2 μl of sample for each measurement, streamlining the process by allowing users to apply the sample directly onto the template without the need for cumbersome colorizing cups or capillary accessories. Whether you choose to wipe the sample or use a pipettor to recover it after the measurement, the steps are straightforward and efficient, making the YR06034 an indispensable tool in modern molecular biology laboratories.

Market Price

Positioned competitively in the market, the Micro-Spectrophotometer YR06034 is priced within a range that reflects its advanced capabilities and user-friendly design. While exact prices may vary, you can expect this high-precision equipment to be available between USD 5200 and USD 6100. Investing in this device not only assures quality results but also offers exceptional value for its features. To obtain a precise quote, consider utilizing our Kalstein Plus platform, where you can request an automatic quotation tailored to your needs.

Frequently Asked Questions

How much sample is required for a measurement? The YR06034 requires a minimal sample volume of just 1 to 2 μl, making it incredibly efficient.

Is a computer necessary to operate the YR06034? No, the device operates on an Android system with a 7-inch touch screen, allowing for intuitive use without a computer.

How does the YR06034 output data? The spectrophotometer features various data output methods including USB, SD-RAM cards, and direct printing via its built-in printer.

Advantages and Disadvantages

The YR06034 is lauded for its compact design, quick measurement times, and ease of operation, thanks to its Android-based interface. It excels at accurately determining nucleic acid and protein concentrations. However, its limitation to three wavelength types (260 nm, 280 nm, and 365 nm) could be a drawback for users requiring a broader range of analyses.

Product Usage in the Field

In practical settings, the YR06034 is invaluable for laboratories that prioritize sample conservation and rapid, accurate measurements of DNA, RNA, and proteins. The OD600 function enhances its capability to measure bacterial and microorganism concentrations, a feature particularly useful in microbiology research.

Recommendations

To maximize the YR06034’s potential, it is advised to follow regular maintenance practices like routine calibration checks and gentle cleaning of the sample pedestal with appropriate solvents. For detailed guidance or troubleshooting, users can rely on the comprehensive support available through our Kalstein Plus network.

Features

• Basic micro-volume UV spectrophotometer design supporting 260 nm, 280 nm, and 365 nm wavelengths.
• Operates on a user-friendly Android system with a 7-inch touch screen.
• Long-life LED light source components ensure durability.
• OD600 function for efficient bacterial and microorganism concentration detection.
• Provides nucleic acid concentration measurement at 260 nm and purity evaluation using the 260/280 ratio.
• Detects purified protein concentration at 280 nm.
• Data output options include a built-in printer, SD-RAM card, and USB memory.

Technical Specifications
