Description

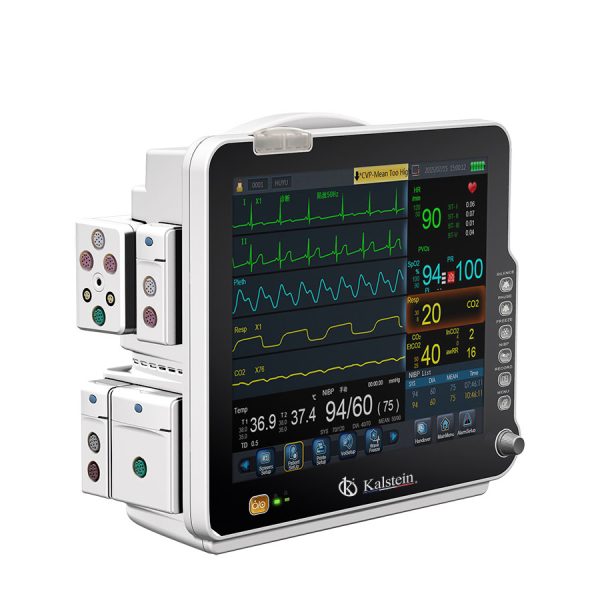

The Multi-parameter Patient Monitor YR02177 is a state-of-the-art device designed for use in critical care environments such as operating theaters (OT) and intensive care units (ICU). Equipped with a 17-inch LCD screen, this full modular parameter patient monitor provides essential information at a glance, ensuring healthcare professionals can make timely and accurate decisions. With standard parameters such as ECG, SPO2, TEMP, NIBP, RESP, and PR/HR, and optional configurations including Masimo/Nellcor SpO2 and BIS, this monitor is highly customizable to fit specific needs.
Market Price Overview
In the competitive realm of patient monitors, the market price for such advanced technology typically ranges from $4600 to $5400 USD. The Multi-parameter Patient Monitor YR02177 represents a preferred choice for healthcare facilities looking for high value without compromising on quality.
Frequently Asked Questions
Q: Can the monitor be mounted on walls or moved easily?
A: Yes, optional accessories such as a wall mount and trolley are available for optimal positioning and mobility.
Q: Is it possible to upgrade the monitor with additional parameters?
A: Absolutely, the monitor’s modular design allows for optional parameters to be added as needed.
Advantages and Disadvantages
Advantages:
– Modular design allows customization and future upgrades
– Large, clear LCD display for easy reading
– Comprehensive standard parameters available
Disadvantages:
– Initial setup might require professional assistance
– Optional accessories may incur additional costs
Field Application
The YR02177 monitor is designed for intensive monitoring in high-acuity areas. Its versatility makes it suitable for varied patient populations, including adults and neonates, effectively capturing vital signs and other critical health indicators through its sophisticated sensors and systems.
Recommendations
To ensure the longevity and optimal performance of the Multi-parameter Patient Monitor YR02177, regular maintenance and calibration are recommended. Make sure to keep the device clean and store it in a controlled environment when not in use.
Features
- 17-inch LCD screen for enhanced visibility
- Standard parameters: ECG, SPO2, TEMP, NIBP, RESP, PR/HR
- Optional configuration includes advanced parameters like BIS and EtCO2
- Modular and customizable design for different medical needs
Technical Specifications
| Model | YR02177 | |
|
ECG
|
Lead mode | 5 Leads(RA,LA,LL,RL,V) |
| Connection method | I, II, III,AVR,AVL,AVF,V | |
| Lead Mode | 3 Leads (RA,LA,LL) | |
| Connection method | I, II,III | |
| Waveform | 1ch | |
| Gain | x250, x500, x1000, x2000 | |
| HR Range | Adult: 15~300bpm | |
| Neo/Ped | 15~350bpm | |
| Accuracy | ±1% or ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200(uVp-p) | |
| Differential input impedance | ≥5MΩ | |
| ST segment Monitoring Range | ||
| Measure Range | -2.0~+2.0mV | |
| Measure Accuracy | -0.8mV~+0.8mV | |
|
Heart Rate
|
Measuring range | 10~300bpm |
| Accuracy | ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200UVp-p | |
|
Respiration
|
Method | Impedance between R-F(RA-LL) |
| Differential Input Impedance | >2.0MΩ | |
| Measuring Impedance Range | 0.3~3.0 MΩ | |
| Base line Impedance Range | 200~4000Ω | |
| Bandwidth | 0.1~2.5Hz | |
| Respiration Rate | Adult: 2~120BrPM | |
| Neo/Ped | 0~150BrPM | |
| Resolution | 1 BrPM | |
| Accuracy | ±2 BrPM | |
| Alarm | 10~40S | |
|
NIBP
|
Method | Oscillometric |
| Mode | Manual/Auto/STAT | |
| Measuring Interval in AUTO Mode | 1,2,3,4,5,10,15,30,60,90,120,180,240,480(Min) | |
| Measuring Period in STAT Mode | 5 Min | |
| Pulse Rate Range | 40~240bpm | |
| Alarm Type | SYS, DIA, MEAN | |
| Resolution | ||
| Pressure | 1mmHg | |
| Accuracy | Maximum Mean error: 5mmHg | |
| Maximum Standard deviation | 8mmHg | |
|
SPO2
|
Display | Number of SPO2,waveform of capacity,Pulse |
| Measuring range | 0~100% | |
| Resolution | 1% | |
| Accuracy | 70~100% (±2%) | |
| Alarm system | Audio-video alarm | |
| Pulse rate range | 0~300bpm | |
|
TEMP
|
Channel | 2 |
| Measuring and Alarm Range | 0~50ºC | |
| Resolution | 0.1ºC | |
| Accuracy | 0.1ºC | |
| Actualization interval | about 1 Second. | |
| Average Time Constant | <10 Second. | |
