Description

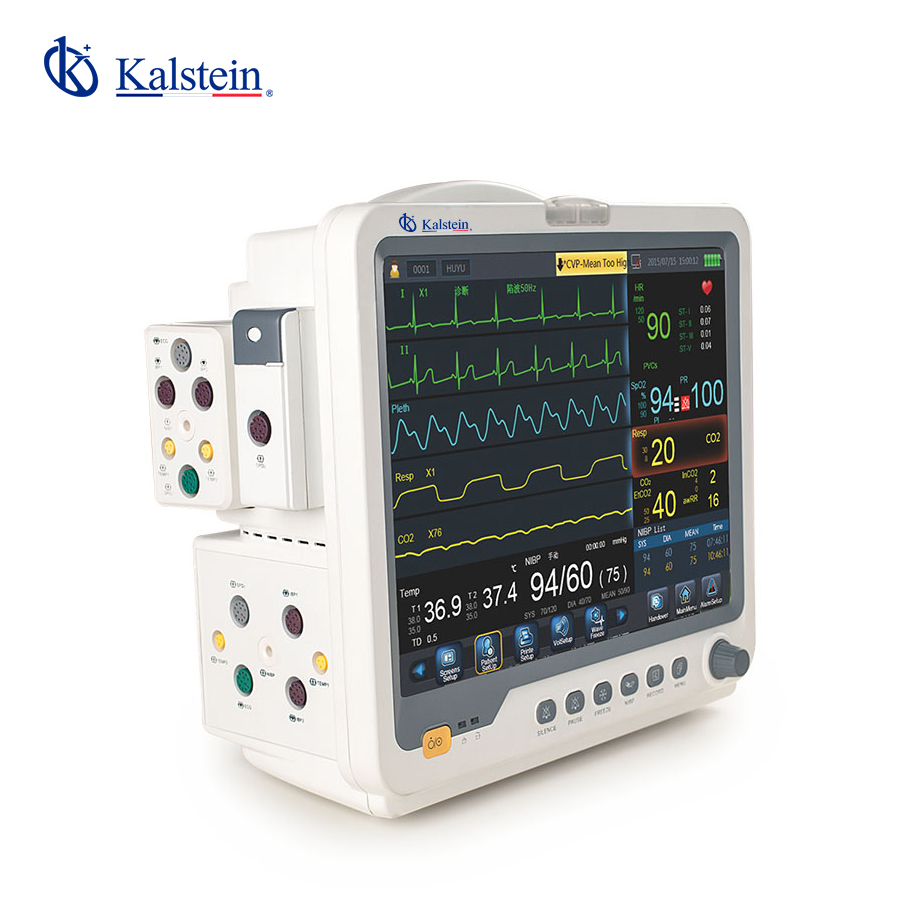

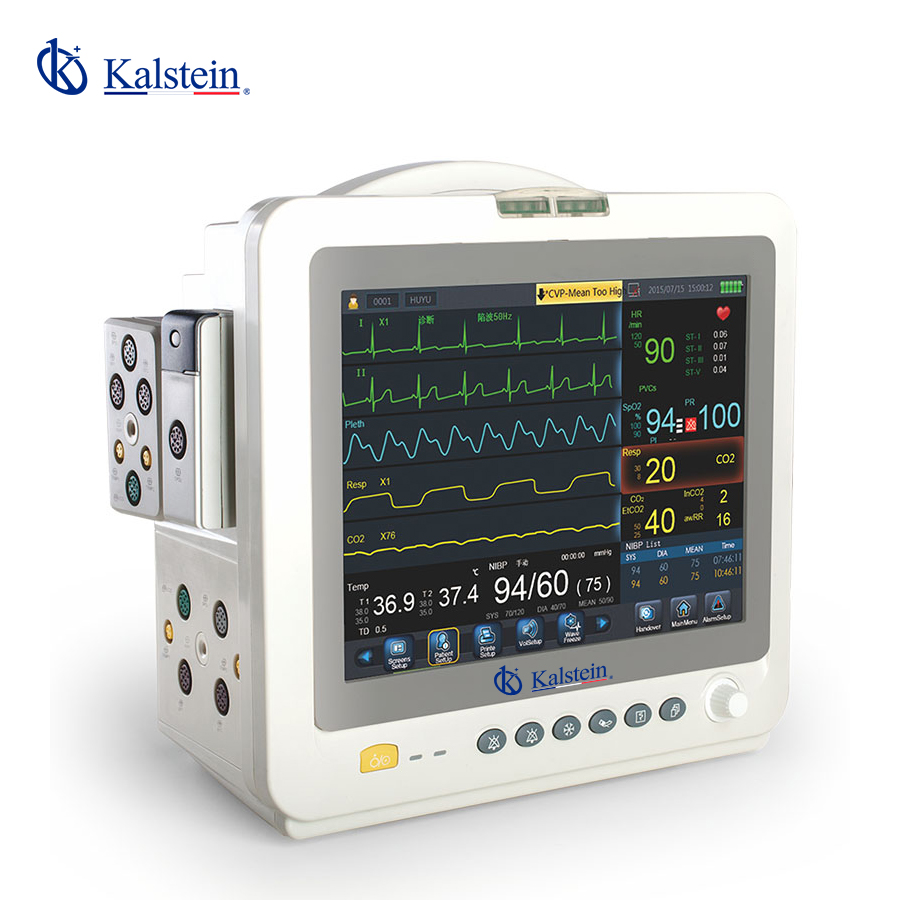

The Multi-parameter Patient Monitor YR02178 // YR02179 is designed to meet the demands of medical professionals in intensive care units and operating theaters. This versatile equipment offers a semi-modular design with a bright LCD screen, allowing real-time tracking of critical patient parameters like ECG, SpO2, TEMP, NIBP, RESP, and PR/HR. With the flexibility of optional features such as a touchscreen and thermal recorder, it ensures comprehensive monitoring tailored to specific medical needs. Its superior accuracy and reliability make it an essential tool for healthcare settings where patient safety is paramount.
Market Price
When it comes to investment in patient monitors, understanding the price range is crucial. Typically, the price for similar comprehensive monitoring systems fluctuates between $3,100 and $3,900, depending on features and configurations. These pricing benchmarks allow healthcare facilities to make informed decisions based on their budget and patient care demands. For an exact quote and to explore the potential discounts available, we invite you to generate a quote quickly on our platform, Kalstein Plus.
Frequently Asked Questions
Q: Can the monitor be used for pediatric patients? A: Yes, the YR02178 // YR02179 is equipped to monitor both adult and pediatric patients.
Q: What optional features are available with this model? A: Optional features include Masimo/Nellcor SpO2, Dual-IBP, AG, C.O., BIS, 3/12-lead ECG, Suntech NIBP, EtCO2, a thermal recorder, and more.
Advantages and Disadvantages
Advantages of the YR02178 // YR02179 include its high accuracy in monitoring vital parameters, customizable options, and robust design suitable for intensive care environments. However, the advanced features and options may increase the learning curve for new users.
Use of the Product in the Field
This monitor is well-suited for use in operating rooms and intensive care units where continuous, precise patient monitoring is critical. Its modular nature allows healthcare providers to adapt its use depending on the changing needs of the patient.
Recommendations
To maximize the longevity and performance of your Multi-parameter Patient Monitor, it is recommended to regularly calibrate the device and update its software. Proper training of medical staff in utilizing the device’s full capabilities is also encouraged.
Features
– Semi-Modular Design
– LCD Screen Display
– Standard Parameters: ECG, SpO2, TEMP, NIBP, RESP, PR/HR
– Optional Upgrades Available
– High Accuracy and Reliability
Technical Specifications
| Model | YR02178 | YR02179 | |
|
ECG
|
Lead mode | 5 Leads(RA,LA,LL,RL,V) | |
| Connection method | I, II, III,AVR,AVL,AVF,V | ||
| Lead Mode | 3 Leads (RA,LA,LL) | ||
| Connection method | I, II,III | ||
| Waveform | 1ch | ||
| Gain | x250, x500, x1000, x2000 | ||
| HR Range | Adult: 15~300bpm | ||
| Neo/Ped | 15~350bpm | ||
| Accuracy | ±1% or ±1bpm | ||
| Resolution | 1bpm | ||
| Sensitivity | >200(uVp-p) | ||
| Differential input impedance | ≥5MΩ | ||
| ST segment Monitoring Range | |||
| Measure Range | -2.0~+2.0mV | ||
| Measure Accuracy | -0.8mV~+0.8mV | ||
|
Heart Rate
|
Measuring range | 40~240bpm | |
| Accuracy | ±3bpm | ||
| Resolution | 1bpm | ||
| Sensitivity | >200UVp-p | ||
|
Respiration
|
Method | Impedance between R-F(RA-LL) | |
| Differential Input Impedance | >2.5MΩ | ||
| Measuring Impedance Range | 0.3~3.0 MΩ | ||
| Base line Impedance Range | 200~4000Ω | ||
| Bandwidth | 0.1~2.5Hz | ||
| Respiration Rate | Adult: 7~120BrPM | ||
| Neo/Ped | 7~150BrPM | ||
| Resolution | 1 BrPM | ||
| Accuracy | ±2 BrPM | ||
| Alarm | 10~40S | ||
|
NIBP
|
Method | Oscillometric | |
| Mode | Manual/Auto/STAT | ||
| Measuring Interval in AUTO Mode | 1,2,3,4,5,10,15,30,60,90,120,180,240,480(Min) | ||
| Measuring Period in STAT Mode | 5 Min | ||
| Pulse Rate Range | 40~240bpm | ||
| Alarm Type | SYS, DIA, MEAN | ||
| Resolution | |||
| Pressure | 1mmHg | ||
| Accuracy | Maximum Mean error: 5mmHg | ||
| Maximum Standard deviation | 8mmHg | ||
|
SPO2
|
Display | Number of SPO2,waveform of capacity,Pulse | |
| Measuring range | 0~100% | ||
| Resolution | 1% | ||
| Accuracy | 70~99% (±2%) | ||
| Alarm system | Audio-video alarm | ||
| Pulse rate range | 0~300bpm | ||
|
TEMP
|
Channel | 2 | |
| Measuring and Alarm Range | 0~50ºC | ||
| Resolution | 0.1ºC | ||
| Accuracy | 0.1ºC | ||
| Actualization interval | about 1 Second. | ||
| Average Time Constant | <10 Second. | ||
