Description

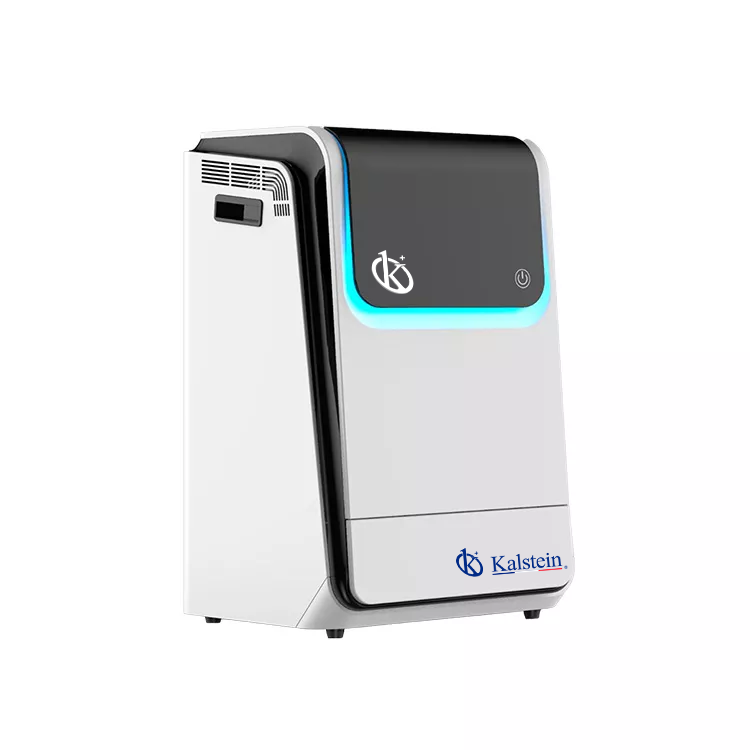

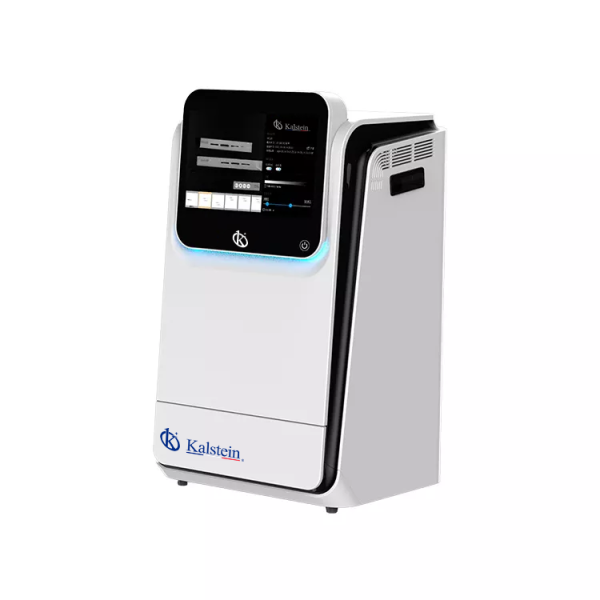

The Multifunctional Imager YR06210-YR06211 offers cutting-edge technology and versatility, providing unparalleled performance in detecting visible light (RGB), far-red/near-infrared (FR/NIR) fluorescence, chemiluminescence, and fulfilling all gel documentation needs. It features an electronic lifting platform that ensures optimal capture settings for different sample sizes. Additionally, an optional removable PC can be installed for quick, risk-free operation, avoiding issues common with embedded Windows Pads.
Market Price
The market price for advanced imaging systems like the Multifunctional Imager YR06210-YR06211 generally ranges from $21,000 to $21,800. This pricing reflects the high value and sophisticated performance capabilities that professional laboratories expect in their imaging equipment. To get an accurate and personalized quote, you can use the Kalstein Plus platform to generate an automated quote instantly.
Frequently Asked Questions
What is the main use of the Multifunctional Imager? The main applications include imaging for chemiluminescence, fluorescence, and gel documentation.
Can the imager handle various sample sizes? Yes, it utilizes an electronic lifting platform to accommodate diverse sizes.
Advantages and Disadvantages
Advantages: High sensitivity cooled digital camera, intuitive software for unlimited users, and versatile application range. Disadvantages: Initial investment cost may be high for smaller labs.
Field Use
In practical settings, these imagers are crucial for researchers conducting Western blotting, and DNA/RNA detection, providing precise and reliable imaging results. Their sophisticated sensors and software streamline processes, allowing for efficient workload management in high-volume labs.
Recommendations
For optimal performance, regularly calibrate the imager and ensure the software is up to date. Proper maintenance of the lifting platform and consideration of the removable PC option can also enhance operational efficiency.
Features
- Ultra-sensitive Cooled Digital Camera
- Electronic Lifting Platform
- Intuitive Software
- Wide Application Range

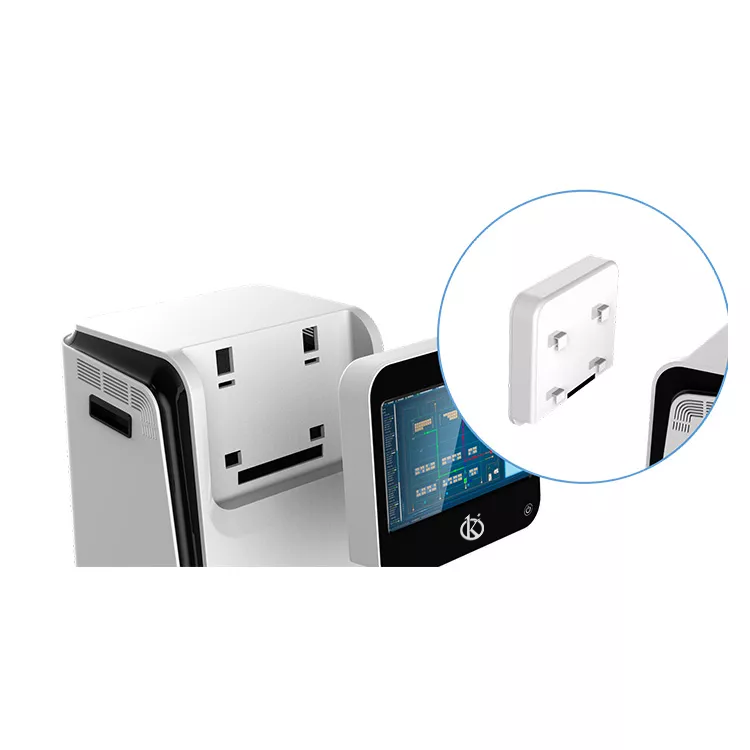

- Optional Removable PC
Technical Specifications
| Model | YR06210 | YR06211 | |
| Application | Chemilluminescence Imaging, ECL Western Blotting | YES | YES |
| Fluorescence Imaging, Fluorescent Western Blotting | YES | YES | |
| Gel Doc Application | YES | YES | |
| Protein gel; SDS Pages | YES | YES | |
| Standard Parameters | Sensor | Back illuminated SCMOS Sensor | Front illuminated CCD Sensor |
| Resolution | 9.0 Megapixels | 6 Megapixels | |
| Pixel Size | 3.76 × 3.76 μm | 4.54 x 4.54 μm | |
| Temperature | -30 °C regulated | ||
| Dynamic Range | 4.8OD | ||
| Pixel density | 16bit (65536 Grey scales) | ||
| Lens | F0.95 as standard (optional F0.8) Auto focus | ||
| Chemilluminescence Sample tray | Electronic Lifting Platform for diverse sizes of western blotting membranes | ||
| DNA/RNA detection | Electronic Lifting Blue LED Transmission for DNA/RNA detection | ||
| Protein gel; SDS Pages | Electronic Lifting White LED Transmission for Protein Gels | ||
| Software | SHST Capture and Analysis Software for unlimited number of users | ||
| Optional Accessories | Epi-UV, RGB and NIR fluorescent detection | ||
| Removable industrial computer, 13.1 Inch Touch Screen, Intel processor | |||
