Description

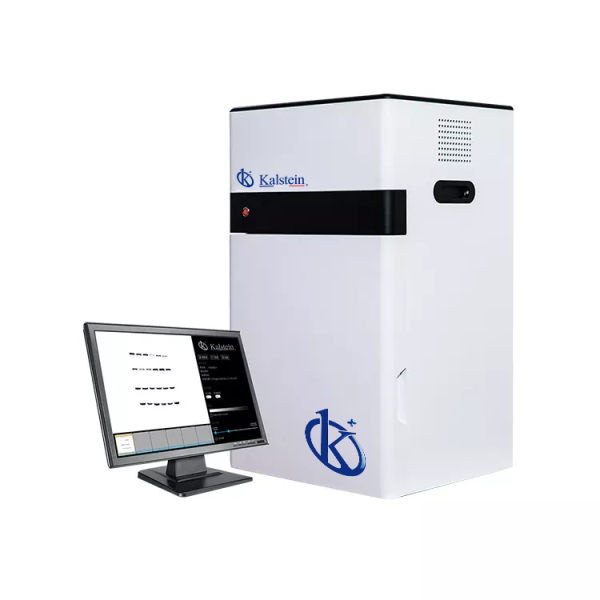

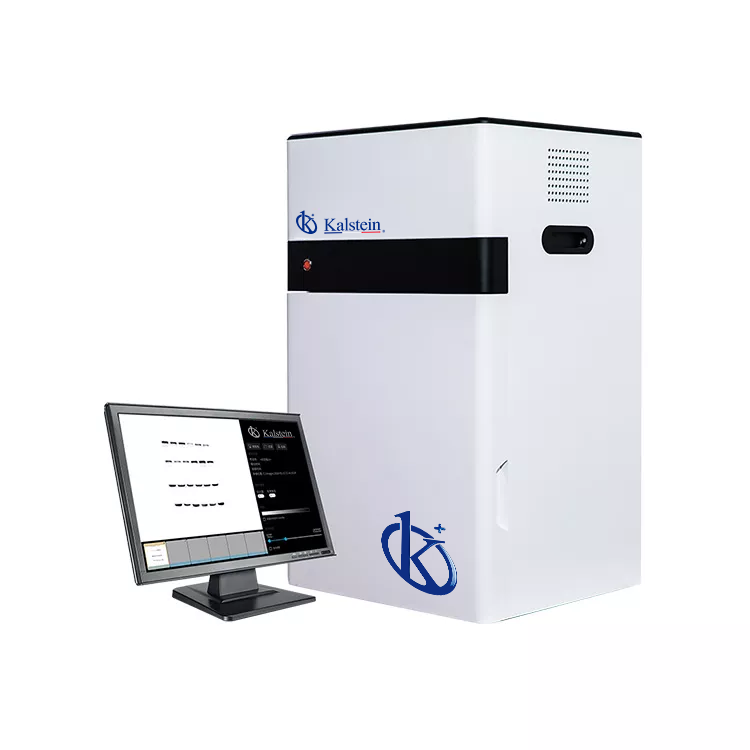

The Multifunctional Imager YR06212 is a cutting-edge tool designed to deliver exceptional performance in visible light (RGB), far red/near infrared (FR/NIR) fluorescence, chemiluminescence detection, and a wide range of gel documentation applications. Equipped with a super sensitive cooled digital camera and an electronic lifting platform, this imager ensures optimal capture of samples in diverse sizes. It includes features like an intuitive software package usable by unlimited users and robust sample trays for various imaging needs, making it an indispensable asset for research laboratories and diagnostic centers.
Market Price
The Multifunctional Imager YR06212 is competitively priced in the market, with similar products typically ranging from $18,100 to $18,800 USD. This makes it an excellent choice for professionals seeking high performance without compromising on affordability. For an exact quote, we invite you to generate one through our Kalstein Plus platform.
Frequently Asked Questions
What is the primary use of the Multifunctional Imager YR06212? This imager is primarily used for chemiluminescence imaging, fluorescence imaging, and general gel documentation applications.
Does it require any specialized software? Yes, the imager comes with SHST Capture and Analysis Software, which is available for an unlimited number of users.
Can it connect to an external PC? Yes, connecting to an external PC is one of its optional features.
Advantages and Disadvantages
Advantages: The imager offers a high-resolution sensor with 9.0 Megapixels, an extensive dynamic range of 4.8OD, and a super sensitive cooled camera, which all contribute to its superior imaging capability. The software’s unlimited user license provides flexibility across large teams or institutions.
Disadvantages: The initial setup and calibration might require professional assistance to ensure optimal configuration, which could add to the initial costs.
Product Use in the Field
The Multifunctional Imager YR06212 is predominantly utilized in laboratory settings for precise imaging of protein gels, SDS Pages, and western blotting applications. It is ideally suited for institutions requiring accurate documentation of complex biological specimens. Its versatility in capturing high-quality images supports a wide range of scientific research and diagnostic applications.
Recommendations
Regular maintenance and calibration are recommended to sustain the accuracy and prolong the lifespan of the device. It is also advisable to attend training sessions or webinars provided by the manufacturer to fully exploit the imager’s advanced features and software capabilities.
Features
- Super sensitive cooled digital camera
- Wide range of applications
- Fixed 4-layer chemiluminescence sample trays
- Intuitive software for unlimited users
Technical Specifications
| Model | YR06212 | |
|
Application
|
Chemilluminescence Imaging, ECL Western Blotting | YES |
| Fluorescence Imaging, Fluorescent Western Blotting | YES | |
| Gel Doc Application | YES | |
| Protein gel; SDS Pages | YES | |
|
Standard Parameters
|
Sensor | Back illuminated SCMOS Sensor |
| Resolution | 9.0 Megapixels | |
| Pixel Size | 3.76 × 3.76 μm | |
| Temperature | -30 ℃ regulated | |
| Dynamic Range | 4.8OD | |
| Pixel density | 16bit(65536 Grey scales) | |
| Lens | F0.95 as standard (optional F0.8) Auto Focus | |
| Chemilluminescence Sample tray | Fixed 4 layers sample trays for different sizes of western blotting membranes | |
| DNA/RNA detection | Fixed 1 layer UV transmission as standard | |
| Protein gel；SDS Pages | Fixed white LED Transmission for Protein Gels | |
| Software | SHST Capture and Analysis Software for unlimited number of users | |
|
Optional Accessories
|
Epi-UV, RGB and NIR fluorescent detection | |
| Connection to external PC | ||
| Blue LED transmission | ||
