Description

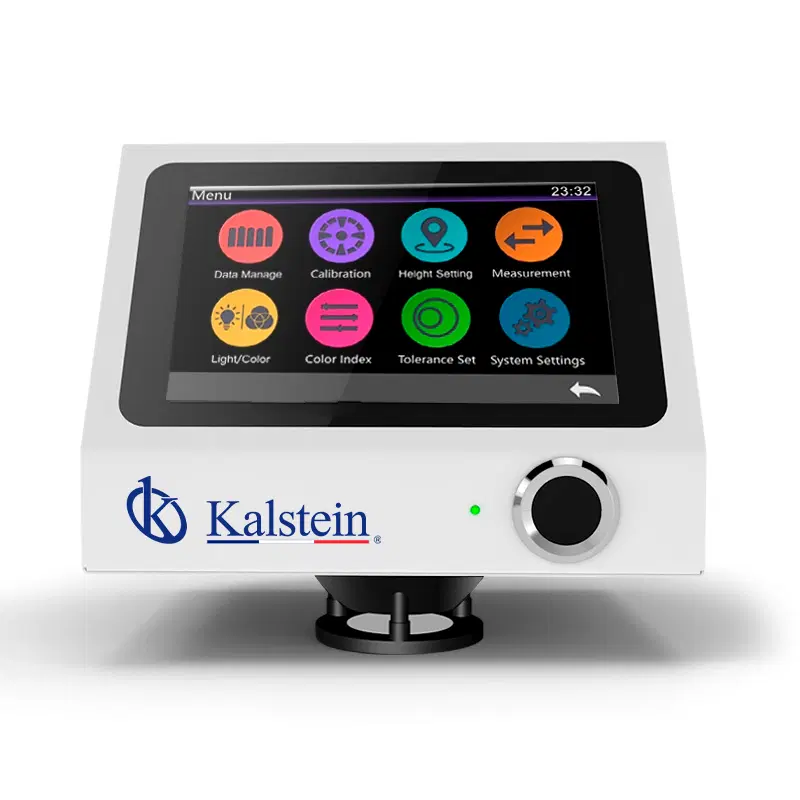

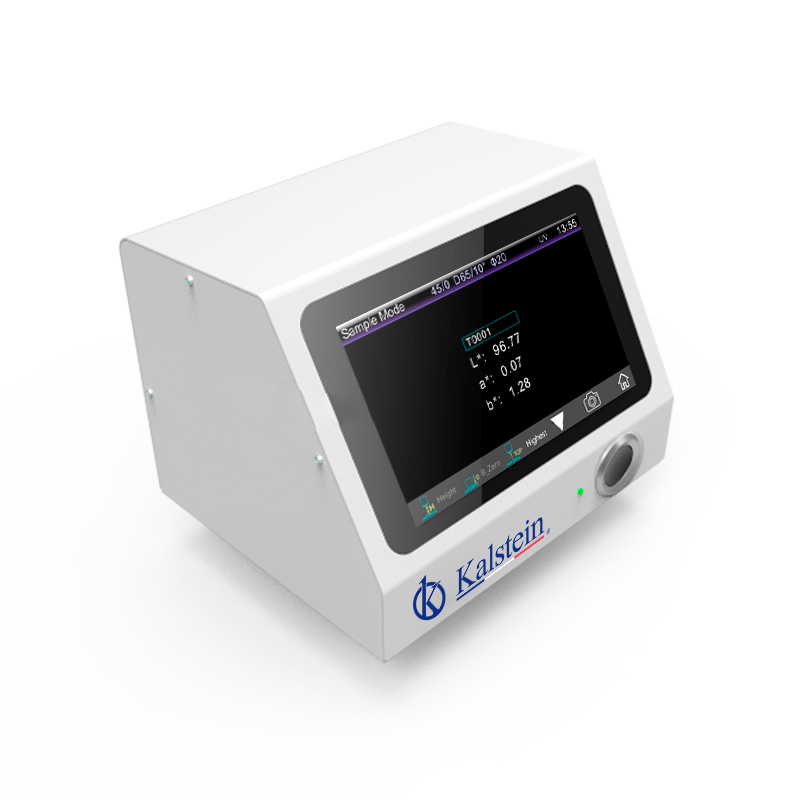

The Non-contact Benchtop Spectrophotometer YR05480 is an advanced color measuring instrument designed to provide precise, non-contact color assessments for a wide range of materials, including liquids, sauces, and powders. This innovative tool integrates D/8 standard color measurement technology and features a diffuse illumination and 8° reception, capturing color with outstanding accuracy and consistency. With its full spectrum LED light source and cutting-edge concave grating spectroscopy technology, the YR05480 ensures superior optical performance, making it an ideal choice for automated production lines and quality control processes. Its rapid measurement cycle and customizable software options further enhance its utility, accommodating diverse industrial applications.
Market Price
The Non-contact Benchtop Spectrophotometer YR05480 is positioned within a competitive price range that generally falls between $10,000 and $10,800. This pricing reflects the sophisticated technology and high-precision capabilities that the instrument offers, standing out as a valuable investment for industries requiring impeccable color measurement accuracy.
Frequently Asked Questions
What types of materials can be tested with the YR05480? This spectrophotometer is versatile and can accurately measure the color of liquids, sauces, and powders without direct contact with the sample.
How does the non-contact measurement work? The instrument’s test probe does not physically touch the sample. It uses advanced optical techniques to capture accurate color readings from a defined distance.
Is the YR05480 easy to install on a production line? Yes, its design is optimized for seamless integration into automated production environments, with customizable measurement cycles and software functions.
Advantages and Disadvantages
The YR05480 offers remarkable advantages, such as high-speed measurement, exceptional accuracy, and the ability to perform non-contact tests. Its compatibility with international standards ensures reliability in various applications. Nevertheless, its advanced features might increase the initial investment cost, which could be considered a potential drawback for smaller enterprises.
Product Usage in the Field
This spectrophotometer is specifically designed for use in environments where precise color measurement is critical. In the food industry, it quantifies the color consistency of sauces, while in cosmetics, it verifies the hues of powders and liquids. Its speed and accuracy make it indispensable in quality control labs and production lines, ensuring consistent product standards.
Recommendations
To maximize the instrument’s lifespan and accuracy, it is recommended to follow regular calibration procedures using the provided standard calibration plate. Keeping the spectrophotometer’s optical components clean and storing it under controlled conditions will further ensure its optimal performance over time. Consider leveraging the Kalstein Plus platform for seamless quotation requests tailored to your specific requirements.
Features
The spectrophotometer boasts several notable features, including a 256-pixel dual-matrix CMOS image sensor, Bluetooth 5.0 for stable data transmission, and a comprehensive selection of color spaces and observation light sources. Its user-friendly interface and expansive measuring capabilities address a wide array of color assessment needs.
Technical Specifications
| Model | YR05480 |
| optical geometry | D/8 (diffuse illumination, reception at 8°, SCI includes specular reflection light); |
| Complies with CIE standard No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7, GB 2893, GB/T 18833 | |
| Features | Non-contact test between the test probe and the tested sample, to achieve accurate non-contact color measurement of liquids, sauces, powders, etc. Mainly used for accurate color measurement and quality control of automated production lines; the measurement time can be adjusted from 0.2 to 1.5 seconds, and the software functions can be customized (additional customization function needs to be evaluated). |
| Light source | Full-spectrum LED light source, UV light source |
| Spectrophotometric mode | concave grid |
| Sensor | 256-pixel dual-matrix CMOS image sensor |
| Wave range | 400~700nm, 10nm output |
| Measured reflectance range | 0-200% |
| Measuring aperture | Φ20mm (Φ10mm can be customized) |
| Non-contact distance | 3.0 mm (±0.2 mm) |
| Sample height | Unlimited thickness, only test probes are used |
| Distance adjustment method | Fixed height according to actual sample |
| Measuring mode | Software customization function (additional customization function to be evaluated) |
| Locating | camera location |
| Color space | Laboratory CIE,XYZ,Yxy,LCh,LUV CIE,Musell,s-RGB,HunterLab,βxy,DIN Lab99 |
| Color difference formula | ΔE*ab,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,ΔE(Hunter),DINΔE99. |
| Other colorimetric index | WI (ASTM E313, CIE/ISO, AATCC, Hunter), |
| YI(ASTM D1925，ASTM 313), | |
| Index of metamerism MI, | |
| Stain resistance, color fastness, strength, opacity, opacity | |
| Observer angle | 2°/10° |
| Illuminant | D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/ U30) |
| Data shown | Spectrogram/values, sample chromaticity values, color difference/graphic values, color simulation, pass/fail result, display tolerance can be configured |
| Measuring time | As fast as 0.2 seconds |
| Data storage | Sample mode + Quality control mode 18,000 |
| Continuous statistical mode 30,000, for a total of not more than 48,000 | |
| Repeatability | In the optimal measurement mode (when the time of a single measurement is 1.5 seconds): |
| Spectral reflectance: within 0.1% of standard deviation: | |
| Chromaticity value: ΔE*ab within 0.03 (after warming up and calibrating the instrument, measure the average value of the slate 30 times within 5 s). | |
| Error between instruments | Within ΔE*ab 0.2 (Average value measured from 12 mosaics of BCRA series Ⅱ). |
| Method of measurement | Single measurement, average measurement (2~99 times) |
| Dimension | 200*200*160mm (test probe) |
| Weight | Approx. 3 kg (test probe only) |
| Energy | AC 24V, power adapter power supply 3A |
| Illuminating life | 5 years, more than 3 million times measurements |
| Monitor | 7-inch TFT color LCD, capacitive touch screen |
| Data port | USB, Bluetooth®5.0 |
| Language | Simplified Chinese, Traditional Chinese, English |
| Operating environment | 0~40 ℃, 0~85 % RH (non-condensing), altitude: less than 2000 m |
| Storage environment | -20~50℃, 0~85%RH (no condensation) |
| Standard accessory | Power adaptor, manual, data cable, standard calibration plate, black calibration box |
| notes | This model is especially suitable for optimized production lines, deep customization of functions will incur additional customization costs. |
