Description

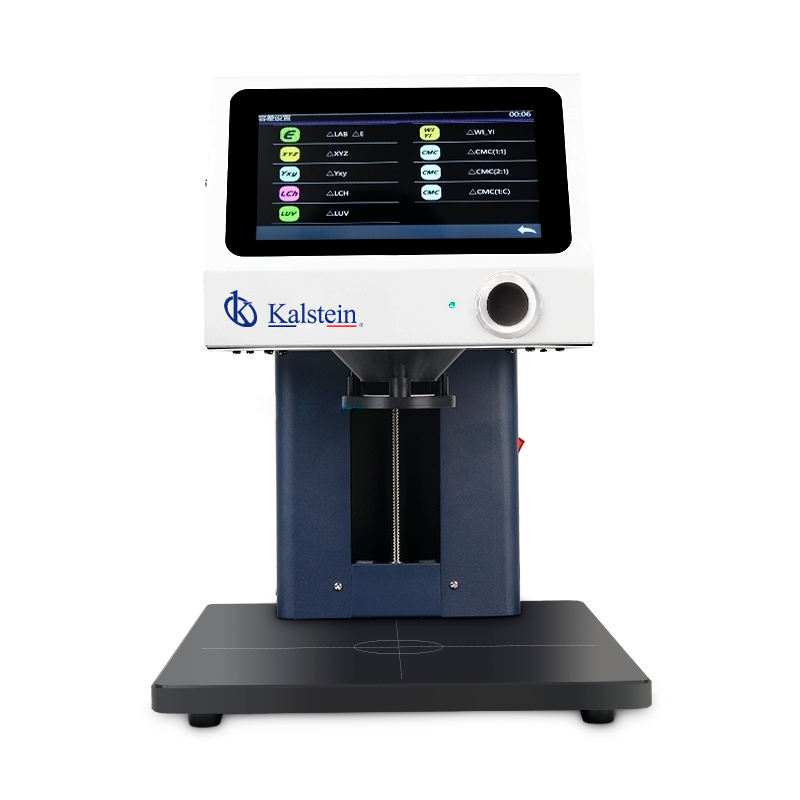

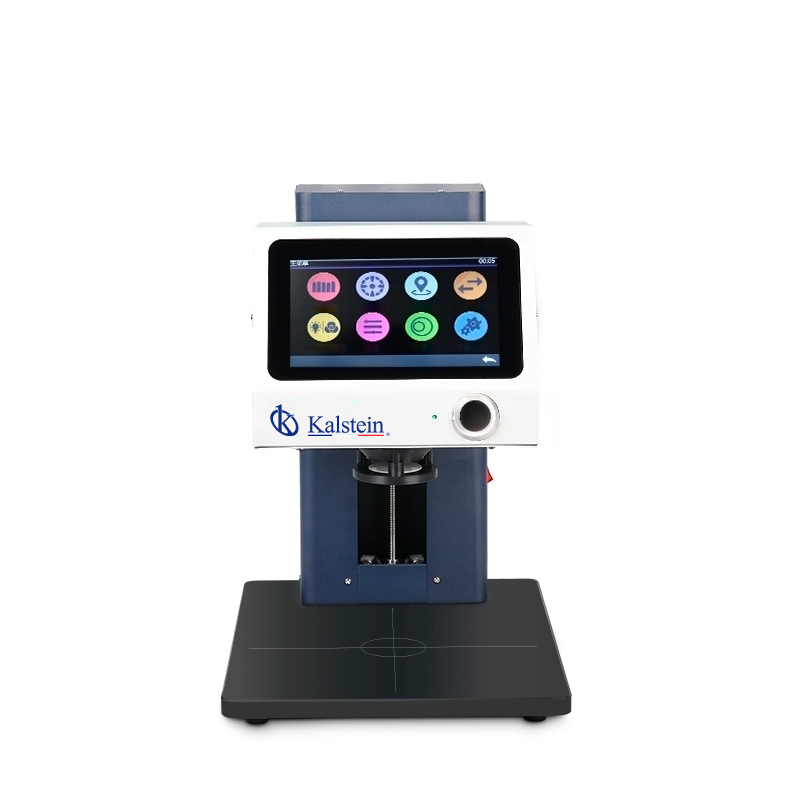

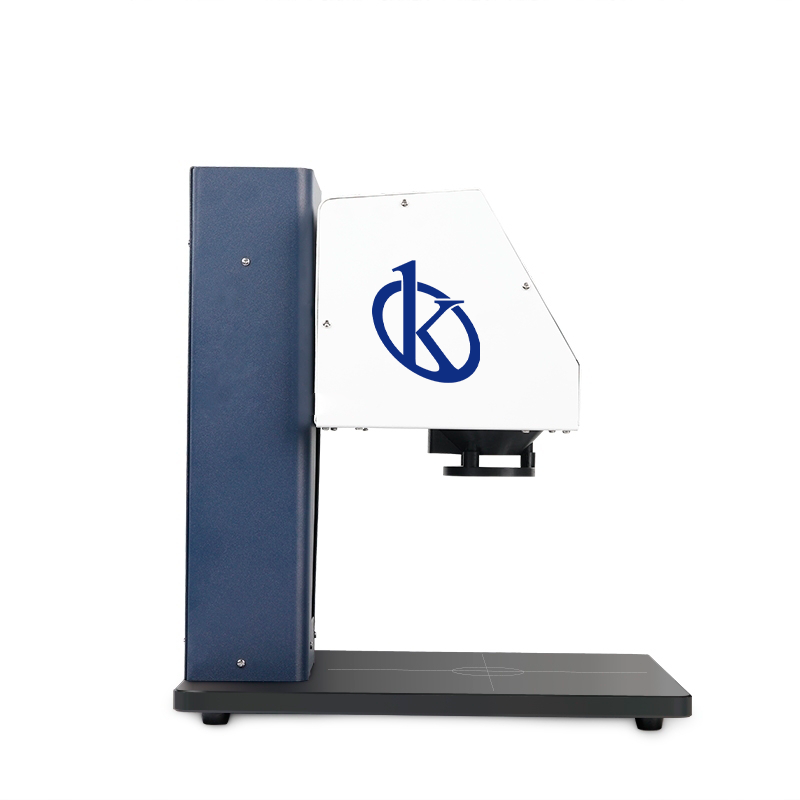

The Non-contact Benchtop Spectrophotometer YR05483 is an advanced color measurement instrument designed to deliver precise, non-contact evaluations of samples such as liquids, sauces, and powders. Developed by Kalstein, this spectrophotometer employs a 45/0 optical geometry, which includes a 45-degree ring-shaped illumination and vertical viewing to ensure high accuracy and stable results. Its applications range across various industries including cosmetics, food hygiene, plastic electronics, and ceramics, making it ideal for quality control in automated production lines. With a unique design allowing for direct measurements from production lines, it prevents damage to samples and avoids cross-contamination.
Market Price
The market for high-quality spectrophotometers like the YR05483 varies widely based on features, brand, and capabilities. Typically, these instruments range from approximately $9,000 to $9,987 in price, offering a competitive edge with their precision and reliability. To see how the YR05483 fits within your budget, consider requesting a personalized quotation through Kalstein Plus, which allows for convenient and automated pricing inquiries.
Frequently Asked Questions
Can the spectrophotometer measure samples of varying heights? Yes, the YR05483 features a movable measuring head that adjusts to the sample’s height, ensuring accuracy.
Is it possible to store measurement data? Absolutely, the device can store up to 30,000 measurements in Sample mode + QC mode, and 10,000 in Continuous Statistics mode.
What industries benefit most from using this spectrophotometer? Industries such as cosmetics, food hygiene, paint and ink production, plastic electronics, and ceramics frequently utilize this spectrophotometer for its accuracy in color measurement and quality control.
Advantages and Disadvantages
The YR05483 spectrophotometer offers numerous advantages, including high precision, non-contact measurement to prevent sample contamination, and extensive data storage capacity. Its movable measuring head provides flexibility for various sample heights, enhancing its usability. However, the complex features may require a learning curve for new users, and the initial investment might be higher compared to simpler devices.
Field Usage
In practical scenarios, this spectrophotometer can be seamlessly integrated into production lines to continuously monitor product quality without physical contact. This capability is particularly advantageous in industries where hygiene and sample integrity are paramount, such as in food processing and cosmetics manufacturing. By providing real-time analysis, it helps streamline operations and maintain high standards.
Recommendations
To maximize the benefits of the YR05483 spectrophotometer, users should ensure regular calibration using the provided standard calibration board to maintain accuracy. Familiarizing oneself with the device’s software can unlock powerful features and improve workflow efficiency. For those seeking deeper insights into their color measurement processes, engaging with Kalstein Plus for professional advice can be highly beneficial.
Features
- Non-contact, 45/0 optical geometry for accurate reflectance and chromaticity measurement
- Adjustable measuring head for varying sample heights
- 7-inch capacitive touchscreen for real-time data display
- Multiple measurement modes: Sample, Quality Control, Continuous Statistics
- Comprehensive color space and difference formulas
- Powered by a full spectrum LED light source
- High storage capacity for extensive data collection
- Efficient software with extended functions
Technical Specifications
| Model | YR05483 |
| Illumination system | 45/0 method(45 ring-shaped illumination, vertical viewing);Conforms to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7,GB 2893,GB/T 18833 |
| Features | 45/0 non-contact benchtop spectrophotometer can achieve precise non-contact measurement between the measuring probe and the sample like liquids, sauces, powders, etc. It can be applied for accurate color analysis and transmission in laboratories and R & D industries; it can also be used for accurate color measurement and quality control of automated production lines; It is widely used in cosmetics, fruits and vegetables, food hygiene, plastic electronics, paint and ink, printing, ceramics and other industries. |
| Light Source | Full spectrum LED light |
| Spectrophotometric Mode | Concave Grating |
| Sensor | 256 Image Element Double Array CMOS Image Sensor |
| Wavelength Range | 400~700nm/10nm output |
| Reflectance Range | 0~200% |
| Measuring Aperture | Φ20mm |
| Non-contact Distance | 7.5mm |
| Sample Height | 0~150mm |
| Distance Adjustment Method | Manual adjustment(test height can be stored) |
| Measuring mode | Sample mode/QC Mode/Continuous statistics mode |
| Locating Method | Camera Locating |
| Color Space | CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB |
| Color Difference Formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,ΔE(Hunter) |
| Other Colorimetric Index | WI(ASTM E313，CIE/ISO,AATCC,Hunter)，YI(ASTM D1925，ASTM 313),TI(ASTM E313，CIE/ISO), |
| Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity | |
| Observer Angle | 2°/10° |
| Illuminant | D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30) |
| Displayed Data | Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, Chromaticity Graph, Color Simulation, PASS/FAIL Result, Color Offset |
| Measuring Time | About 1.5s |
| Data Storage | Sample mode + QC mode: 30,000; Continuous statistics mode: 10,000 |
| Repeatability | Spectral reflectance: Standard deviation within 0.08% |
| Chromaticity value: Within ΔE*ab 0.05 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration) | |
| Inter-instrument Error | Within ΔE*ab 0.25（Average for 12 BCRA Series II color tiles) |
| Measurement Mode | Single Measurement, Average Measurement(2 ~ 99 times) |
| Dimension | 330*250*370mm |
| Weight | About 10 kg |
| Power Supply | DC 24V, 3A Power Adapter |
| Illuminant Life Span | 5 years, more than 3 million times measurements |
| Display Screen | 7″ TFT Capacitive Screen-touch Display |
| Data Port | USB/RS-232 |
| Language | Simplified Chinese,Traditional Chinese,English |
| Working Environment | Temperature: 0~40℃; Humidity: 0~85% (No Condensation); Altitude < 2000m |
| Storage Environment | Temperature: -20~50℃; Humidity: 0~85% (No Condensation) |
| Standard Accessory | Power Adapter, User Manual, USB cable, Standard Calibration Board, Black Calibration Cavity, |
| Notes | The specifications are subject to change without notice. |
