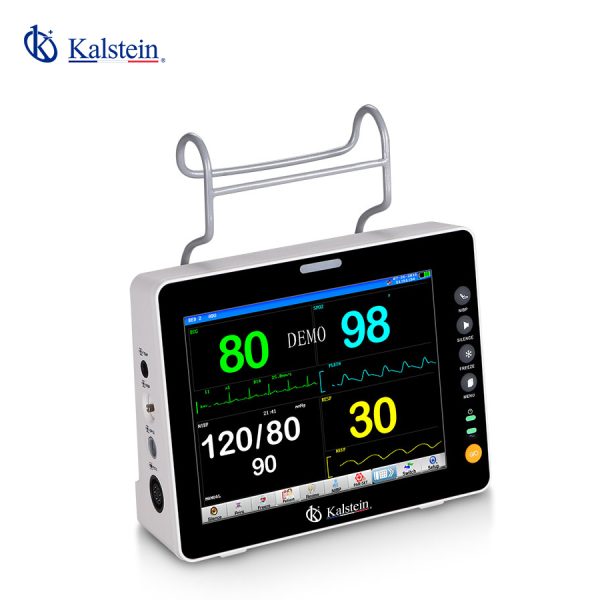

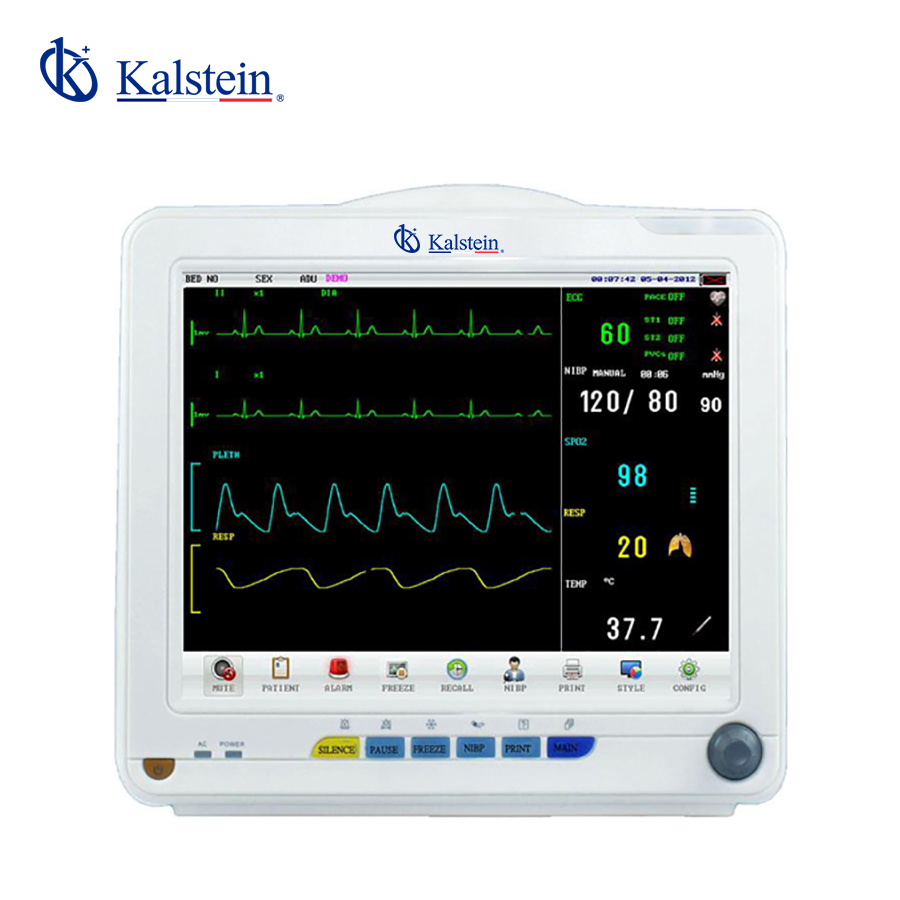

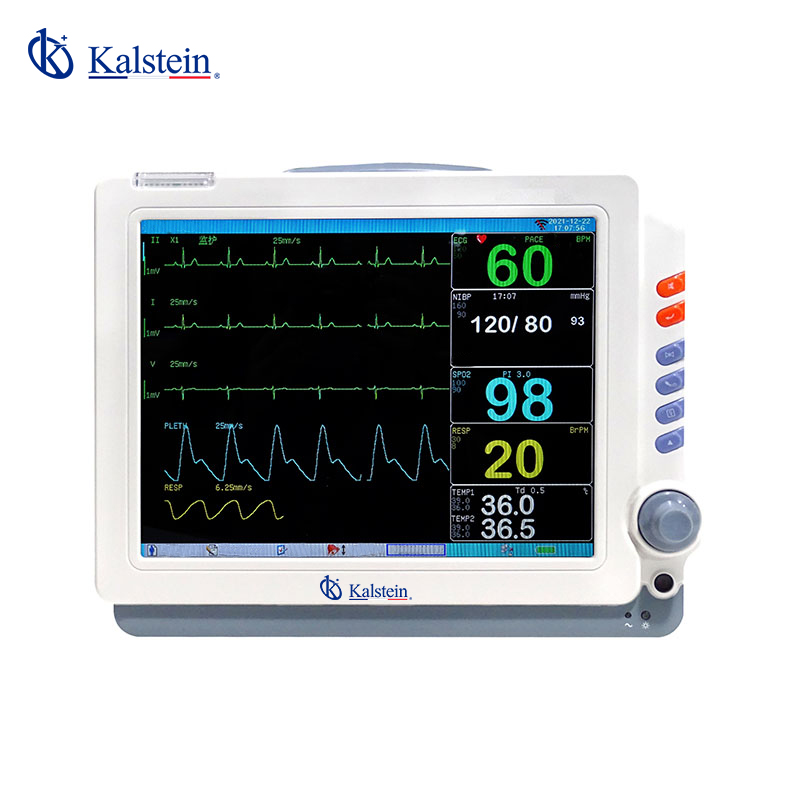

Patient Monitors YR02170 // YR02171 // YR02172

Description

The Patient Monitors YR02170, YR02171, and YR02172 are sophisticated medical devices designed to provide continuous and multi-parameter monitoring, making them indispensable in clinical settings. Featuring a multi-channel display, these monitors offer a big font interface for enhanced readability, alongside ST and arrhythmia analysis for accurate cardiac assessments. Equipped with drug dose calculation, an OxyCRG dynamic view, and precise respiration monitoring with apnea alarms, these monitors ensure comprehensive patient care. Additionally, they offer NIBP overpressure protection and support both wired and wireless network connectivity, enhancing their versatility and adaptability in various medical environments.

Market Price

The Patient Monitors YR02170, YR02171, and YR02172 are competitively priced within the range of $900 to $1700 USD in the market. This price band reflects their advanced features and the reliability they offer in patient monitoring. By investing in these monitors, healthcare providers can ensure top-notch care and efficiency.

Frequently Asked Questions

What parameters do these monitors track? The monitors track vital parameters such as ECG, heart rate, respiration, SPO2, NIBP, and temperature, providing comprehensive data for patient assessment.

Are the monitors suitable for all patient ages? Yes, these monitors are equipped to handle a wide range of patient ages, from neonates and pediatrics to adults, ensuring versatile use in various medical settings.

How are they powered? The units come with plug-in rechargeable batteries and can operate on both AC and DC, offering flexibility depending on the medical environment.

Advantages and Disadvantages

Advantages: The primary benefits of these patient monitors include precision, ease of use, and connectivity. Their big font interface and multi-channel capabilities allow for efficient monitoring and data interpretation. The inclusion of both wired and wireless network support adds to their efficiency.

Disadvantages: One potential drawback could be the initial cost of investment and the need for regular maintenance to keep the monitors in optimal condition.

Usage in the Field

In practical scenarios, the Patient Monitors YR02170, YR02171, and YR02172 are crucial in intensive care units, emergency rooms, and during surgical interventions. Their ability to deliver real-time, accurate data allows clinicians to make informed decisions quickly, thereby improving patient outcomes.

Recommendations

To optimize the use of these patient monitors, regular calibration and software updates are recommended. Also, proper training for healthcare personnel on the full capabilities and functions of the monitor can enhance its use efficiency.

Features

Multi-channel display
Big font interface
ST and arrhythmia analysis
Drug dose calculation and titration table
OxyCRG dynamic view display
Respiration monitoring with apnea alarms
Alarm review, arrhythmia review
NIBP overpressure protection
Plug-in rechargeable battery, AC/DC available
Supporting wire or wireless network

Technical Specifications

Model		YR02170	YR02171	YR02172
ECG	Lead mode	5 Leads(RA,LA,LL,RL,V)
	Connection method	I, II, III,AVR,AVL,AVF,V
	Lead Mode	3 Leads (RA,LA,LL)
	Connection method	I, II,III
	Waveform	1ch
	Gain	x250, x500, x1000, x2000
	HR Range	Adult: 15~300bpm
	Neo/Ped	15~350bpm
	Accuracy	±1% or ±1bpm
	Resolution	1bpm
	Sensitivity	>200(uVp-p)
	Differential input impedance	≥5MΩ
	ST segment Monitoring Range
	Measure Range	-2.0~+2.0mV
	Measure Accuracy	-0.8mV~+0.8mV
Heart Rate	Measuring range	0~350bpm	20~300bpm
	Accuracy	±1bpm
	Resolution	1bpm
	Sensitivity	>200UVp-p
Respiration	Method	Impedance between R-F(RA-LL)
	Differential Input Impedance	>2.5MΩ
	Measuring Impedance Range	0.3~3.0 MΩ
	Base line Impedance Range	200~4000Ω
	Bandwidth	0.1~2.5Hz
	Resp. Rate	Adult: 2~120BrPM
	Neo/Ped	2~150BrPM	0~150BrPM
	Resolution	1 BrPM
	Accuracy	±2 BrPM
	Alarm	10~40S
NIBP	Method	Oscillometric
	Mode	Manual/Auto/STAT
	Measuring Interval in AUTO Mode	1,2,3,4,5,10,15,30,60,90,120,180,240,480(Min)
	Measuring Period in STAT Mode	5 Min
	Pulse Rate Range	40~240bpm
	Alarm Type	SYS, DIA, MEAN
	Resolution
	Pressure	1mmHg
	Accuracy	Maximum Mean error: 5mmHg
	Maximum Standard deviation	8mmHg
SPO2	Display	Number of SPO2,waveform of capacity,Pulse
	Measuring range	0~100%
	Resolution	1%
	Accuracy	70~100% (±2%)
	Alarm system	Audio-video alarm
	Pulse rate range	0~300bpm
TEMP	Channel	2
	Measuring and Alarm Range	0~50ºC
	Resolution	0.1ºC
	Accuracy	0.1ºC
	Actualization interval	about 1 Second.
	Average Time Constant	<10 Second.

Additional information

Weight	N/A
Dimensions	N/A
Model	YR02170, YR02171, YR02172
