Description

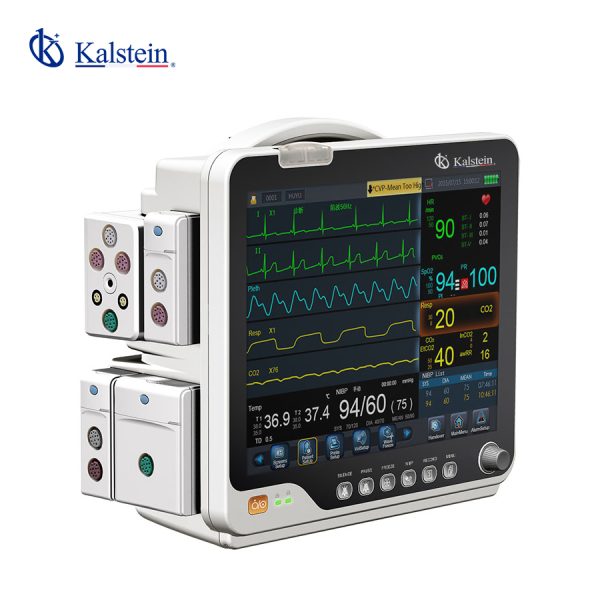

The Patient Monitors YR02176 is an advanced, full modular parameter monitor equipped with a 15-inch LCD screen, tailored for use in operating theaters and intensive care units. This monitor is designed to seamlessly integrate into medical settings, providing accurate and comprehensive monitoring of standard parameters such as ECG, SPO2, TEMP, NIBP, RESP, and PR/HR. Its standard configuration includes a 5-lead ECG, RESP, Dual-Temp, SpO2, and NIBP, with optional enhancements like Masimo/Nellcor SpO2, Dual-IBP, AG, and more. This monitor is a versatile solution for diverse healthcare needs, ensuring precise patient monitoring.
Market Price
The Patient Monitors YR02176 is competitively priced in the market. Typically, high-quality patient monitors in this category range from approximately $4,200 to $5,000 USD. This makes the YR02176 an attractive option for healthcare facilities looking for top-tier monitoring capabilities at a reasonable investment.
Frequently Asked Questions
Can this monitor be used for pediatric patients? Yes, the YR02176 is suitable for use with both adult and pediatric patients, ensuring flexible application across different patient types.
Is the monitor configurable with additional parameters? Absolutely, the monitor’s modular design allows for optional configurations, including advanced SPO2 and additional ECG leads.
Advantages and Disadvantages
Advantages: High precision in measurements, modular configuration allowing for customization, and a robust design suitable for demanding medical environments.
Disadvantages: Initial setup might require professional assistance due to its advanced features, and optional addons can increase overall costs.
Product Use in the Field
The YR02176 is extensively used in critical care environments where continuous and accurate monitoring is essential. Its application ranges from intensive care units to surgical wards, providing vital real-time data to healthcare professionals for informed decision-making.
Recommendations
To maximize the utility of the Patient Monitors YR02176, ensure regular calibration and maintenance checks. This will enhance accuracy and prolong the device’s lifespan. Keeping the software updated is also recommended to benefit from the latest features and improvements. Start a quote request or use Kalstein Plus for automatic quotations to bring precision and reliability to your medical facility today!
Features
- Comprehensive monitoring of vital signs
- 15-inch LCD screen for clear data visibility
- Modular design for customizable configurations
- Suitable for adults and pediatric patients
- Audio-visual alarm system
Technical Specifications
| Model | YR02176 | |
| ECG | Lead mode | 5 Leads(RA,LA,LL,RL,V) |
| Connection method | I, II, III,AVR,AVL,AVF,V | |
| Lead Mode | 3 Leads (RA,LA,LL) | |
| Connection method | I, II,III | |
| Waveform | 1ch | |
| Gain | x250, x500, x1000, x2000 | |
| HR Range | Adult: 15~300bpm | |
| Neo/Ped | 15~350bpm | |
| Accuracy | ±1% or ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200(uVp-p) | |
| Differential input impedance | ≥5MΩ | |
| ST segment Monitoring Range | ||
| Measure Range | -2.0~+2.0mV | |
| Measure Accuracy | -0.8mV~+0.8mV | |
| Heart Rate | Measuring range | 20~300bpm |
| Accuracy | ±1bpm | |
| Resolution | 1bpm | |
| Sensitivity | >200UVp-p | |
| Respiration | Method | Impedance between R-F(RA-LL) |
| Differential Input Impedance | >2.5MΩ | |
| Measuring Impedance Range | 0.3~3.0 MΩ | |
| Base line Impedance Range | 200~4000Ω | |
| Bandwidth | 0.1~2.5Hz | |
| Resp. Rate | Adult: 2~120BrPM | |
| Neo/Ped | 0~150BrPM | |
| Resolution | 1 BrPM | |
| Accuracy | ±2 BrPM | |
| Alarm | 10~40S | |
| NIBP | Method | Oscillometric |
| Mode | Manual/Auto/STAT | |
| Measuring Interval in AUTO Mode | 1,2,3,4,5,10,15,30,60,90,120,180,240,480(Min) | |
| Measuring Period in STAT Mode | 5 Min | |
| Pulse Rate Range | 40~240bpm | |
| Alarm Type | SYS, DIA, MEAN | |
| Resolution | ||
| Pressure | 1mmHg | |
| Accuracy | Maximum Mean error: 5mmHg | |
| Maximum Standard deviation | 8mmHg | |
| SPO2 | Display | Number of SPO2,waveform of capacity,Pulse |
| Measuring range | 0~100% | |
| Resolution | 1% | |
| Accuracy | 70~100% (±2%) | |
| Alarm system | Audio-video alarm | |
| Pulse rate range | 0~300bpm | |
| TEMP | Channel | 2 |
| Measuring and Alarm Range | 0~50ºC | |
| Resolution | 0.1ºC | |
| Accuracy | 0.1ºC | |
| Actualization interval | about 1 Second. | |
| Average Time Constant | <10 Second. | |
