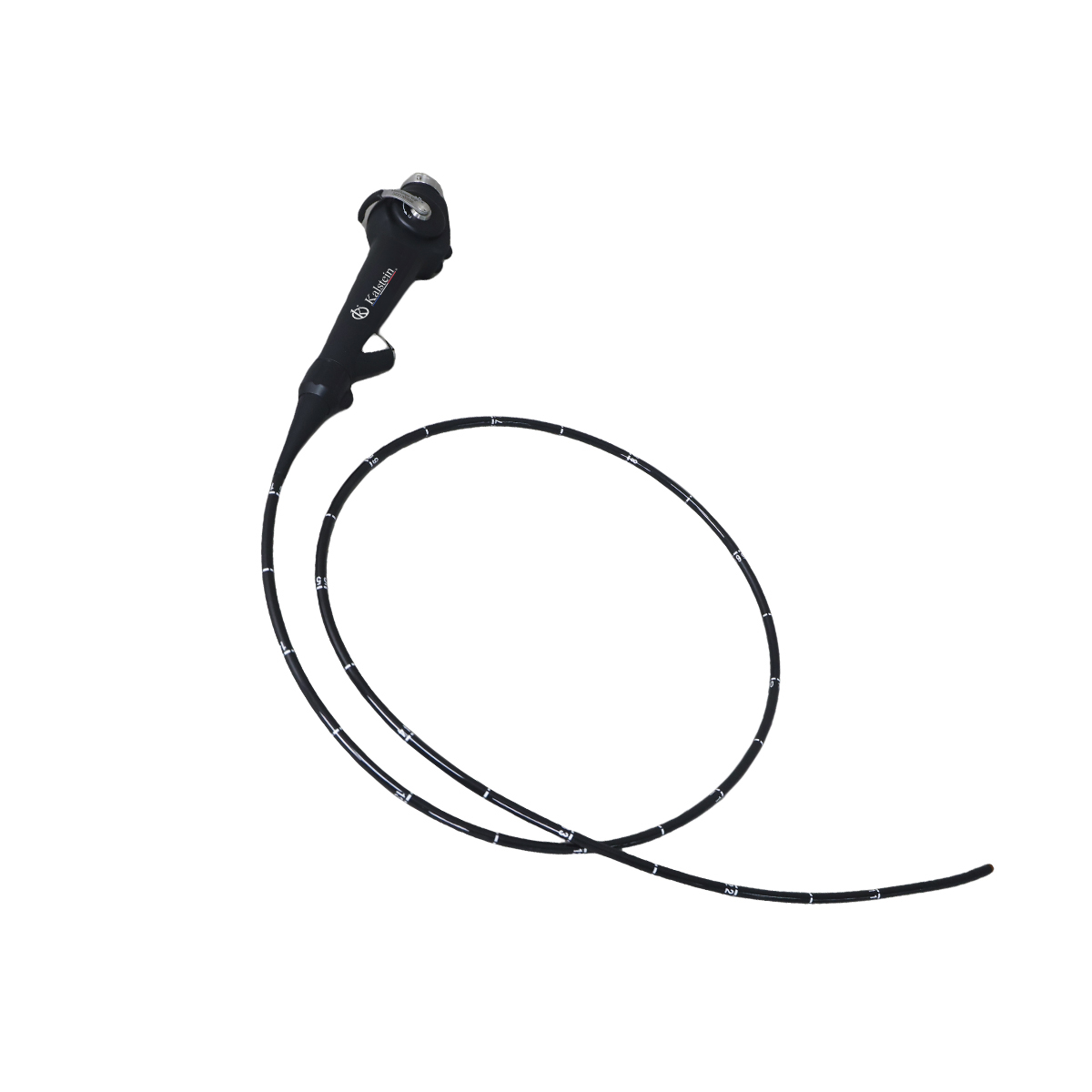

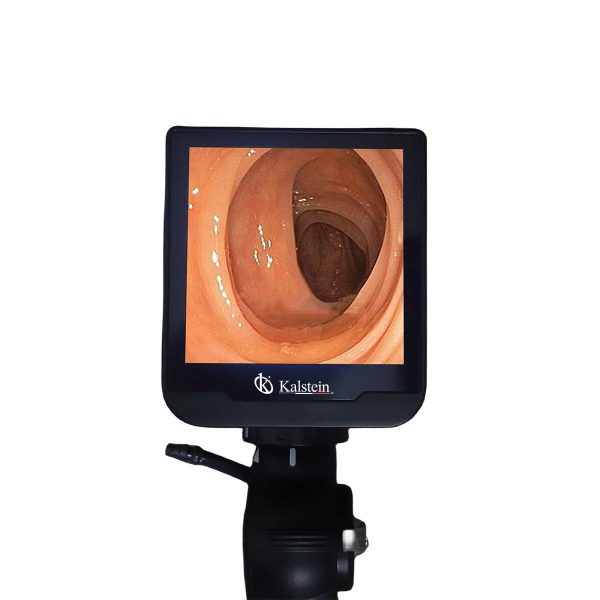

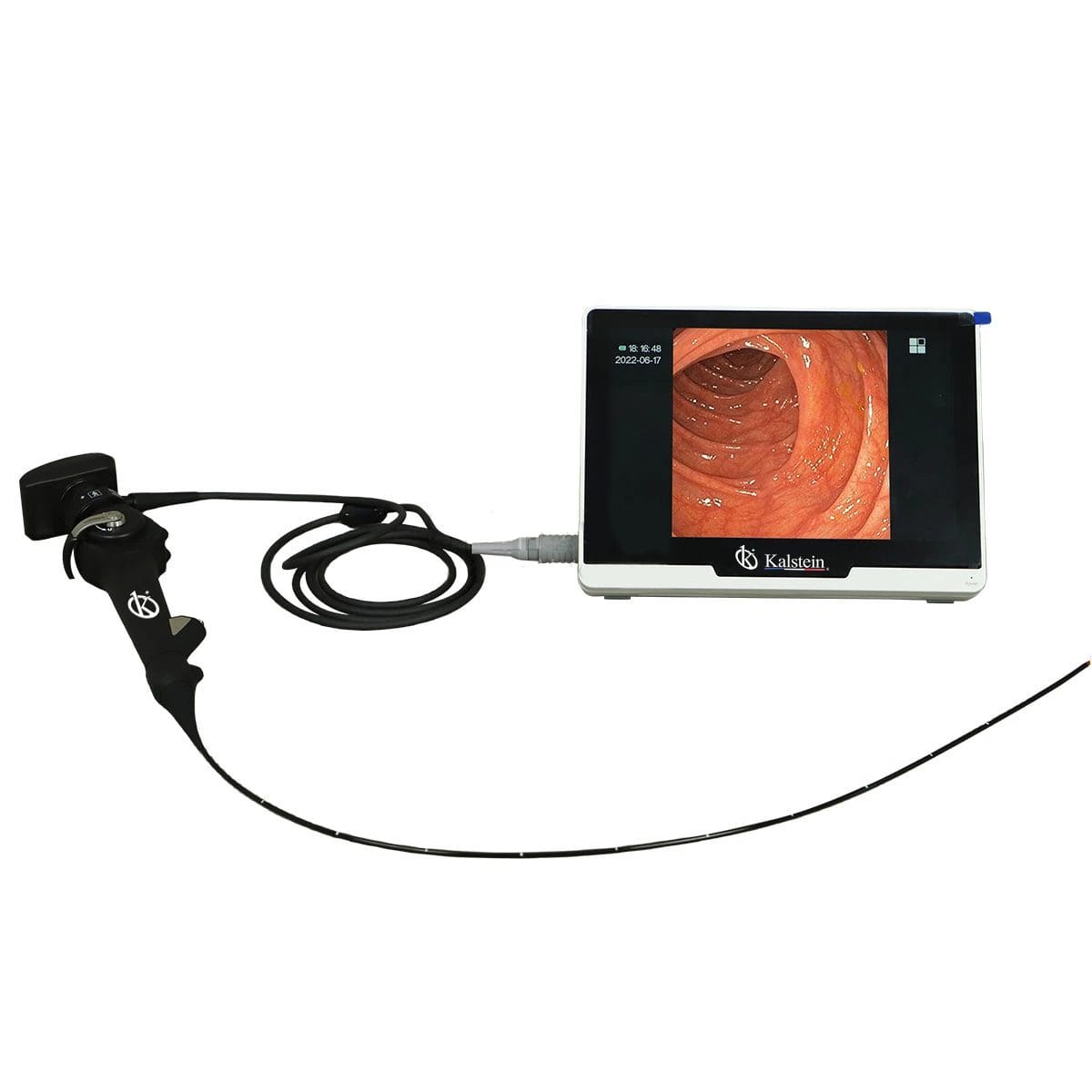

Portable Veterinary Video Endoscope YR06151//YR06155

ManufacturerKalstein

Description

The Portable Veterinary Video Endoscope YR06151//YR06155 offers exceptional imaging capabilities with its high-resolution CMOS sensor and durable LED light source. Veterinary professionals can perform detailed examinations efficiently, thanks to the multifunctional handle that allows easy access to photo, video, freeze, and zoom features—all operable with one hand. Its four-directional observation capability ensures comprehensive coverage for various veterinary applications, including bronchoscopy, rhinoscopy, and deeper lung investigations. The rotatable video adapter cable facilitates smooth maneuvers without obstructions, making it a practical choice for any veterinary clinic.

Price in the Market

Veterinary video endoscopes vary in pricing based on specifications and features. A typical range for high-quality models like the Portable Veterinary Video Endoscope YR06151//YR06155 hovers between $11,500 and $12,500. This pricing reflects the exceptional imaging technology, durability, and versatility offered by such advanced instruments.

Frequently Asked Questions

Q: Can this endoscope be used for both small and large animals?
A: Yes, the Portable Veterinary Video Endoscope is suitable for a wide range of veterinary applications, including procedures for both small and large animals.

Q: Is the LED light source replaceable?
A: The durable LED light is designed for extended use; however, in the event of failure, it can be replaced by authorized service providers.

Advantages and Disadvantages

One of the primary advantages of the Portable Veterinary Video Endoscope is its high-resolution imaging, which facilitates accurate diagnostics. The multi-function handle enhances operational ease. However, the primary disadvantage might be its high cost, which could be prohibitive for smaller practices.

Product Use in the Field

This endoscope is used extensively in veterinary settings to diagnose and treat various conditions. Its versatile design allows it to be employed in intricate procedures such as bronchoscopy and bladder examinations. The lightweight and portable nature make it an excellent choice for mobile veterinarians as well.

Recommendations

For optimal use, ensure that veterinary professionals are adequately trained in operating the device. Regular maintenance and checks are recommended to uphold performance standards. Leveraging the Kalstein Plus platform to generate a quote can help streamline the purchasing process.

Features

  • High-resolution CMOS sensor for crystal-clear images
  • Durable LED light source for long-lasting performance
  • Multi-function handle for seamless operation
  • Four-directions viewing capability
  • Rotatable video adapter cable for unimpeded use
  • Wide range of veterinary applications

Technical Specifications

Model Diameter of Insertion Tube Working Channel Working Length View Angle View Depth Range of Bending Screen size
YR06151 2.8 mm 1.2 mm 610 mm 120° 3-200 mm 210° (U), 130° (D)
120° (R), 120° (L)
10-inch
YR06152 3.8 mm 1.5 mm 1000 mm 120° 3-200 mm 180° (U), 130° (D)
120° (R), 120° (L)
10-inch
YR06153 4.8 mm 2.0 mm 1000 mm 120° 3-200 mm 180° (U), 130° (D)
120° (R), 120° (L)
10-inch
YR06154 5.8 mm 2.8 mm 1500 mm 120° 3-200 mm 180° (U), 130° (D)
120° (R), 120° (L)
10-inch
YR06155 5.8 mm 2.8 mm 1500 mm 120° 3-100 mm 180° (U), 130° (D)
120° (R), 120° (L)
4-inch

Additional information

Weight N/A
Dimensions 66 × 50 × 22 cm
Model

YR06151, YR06152, YR06153, YR06154, YR05155
