Small Sample Viscometer YR05865
Small Sample Viscometer YR05865 — Kalstein laboratory equipment with technical specifications, advanced features, and certified professional solutions for scientific use.

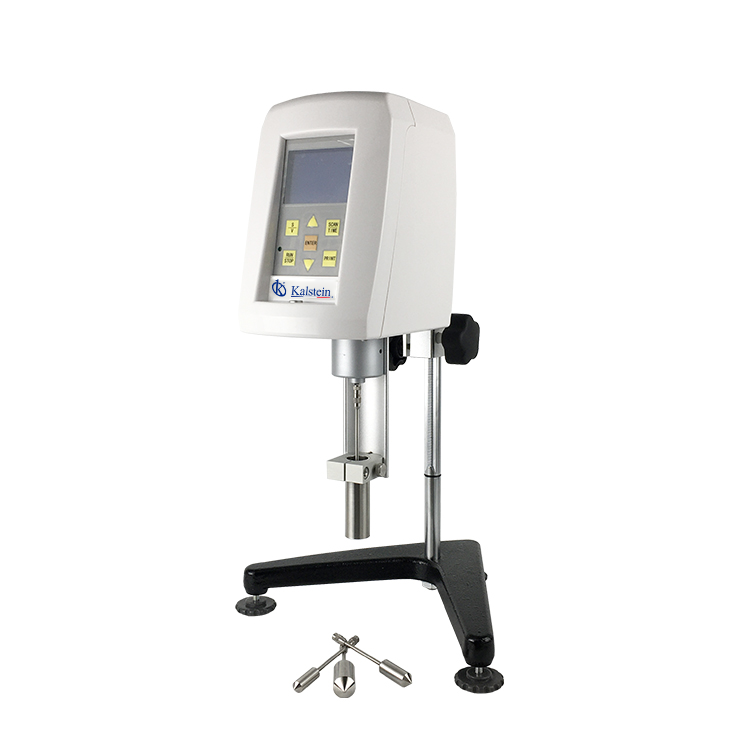

The Small Sample Viscometer YR05865 is an advanced digital rotary viscometer designed for precise measurements, especially when dealing with limited sample quantities. It's built with a coaxial cylinder structure and includes a small sample adapter that allows for measurements with as little as 7ml to 13ml of sample (21ml with rotor 0). This makes it an ideal choice for analyzing precious or rare samples. Additionally, it comes with an optional constant temperature water jacket system to ensure consistent temperature control during testing, all while providing accurate and user-friendly operation.
Price in the Market
Viscometers like the YR05865 generally fall within a moderate price range, providing value for their advanced features. On average, the market price for such precision instrumentation ranges between $2,300 and $3,100 USD, depending on the additional options and configurations chosen.
Frequently Asked Questions
What is the minimum sample size required? The viscometer can measure samples ranging from 7ml to 13ml, depending on the rotor used.
Can it connect to a computer system? Yes, it has two RS232 interfaces, allowing direct connection to both a micro printer and a computer.
How accurate is the measurement? It has a measurement error margin of ±3% for Newtonian liquids.
Advantages and Disadvantages
One major advantage of the YR05865 is its ability to deliver precise measurements with a minimal sample size, which is crucial when testing rare or expensive materials. Its digital display and easy connectivity further enhance user convenience. A potential downside could be its complexity for users unfamiliar with digital viscometry, requiring some initial learning for optimal use.
Product Use in Field
The YR05865 Small Sample Viscometer is perfect for laboratory settings where precision and small sample sizes are vital. Whether in pharmaceutical labs analyzing new compounds or in chemical processing environments needing high accuracy with minimal material, this device ensures consistent and reliable results. Its temperature control feature is particularly beneficial for applications demanding stability in varying environmental conditions.
Recommendations
To maintain optimal performance, regularly calibrate the viscometer and ensure the temperature control setup is functioning correctly. Utilize the connection interfaces to document measurements digitally, facilitating data tracking and analysis. For first-time users, exploring instructional materials or tutorials is recommended to fully leverage the instrument's capabilities.
Features
- Timing measurement function
- Coaxial cylinder structure
- Using a spindle rotor, the sample size required for testing is very small
- Two RS232 interfaces with direct connection to micro printer and computer
Technical Specifications
| Model | YR05865 |
| Display mode | Digital Display |
| Speed (r/min) | 0.3/0.6/1.5/3/6/10/12/15/20/25/30/40/50/60/70/80/90/100 Total 18 |
| Rotor | 18#，25#，31#，34# (standard configuration) |
| Measuring Range | 3-1.6M (mPa﹒s) |
| Sample Size | 18# rotor：3 –10K； 7ml 25# rotor：480 –1.6M； 9ml 31# rotor：30 –100K； 10.5ml 34# rotor：60 –200K； 11ml |
| Measurement Error | ±3% (Newtonian liquid) |
| Repetitive Error | ±1.5% (Newtonian liquid) |
| Output Interface | Two RS232 interfaces to connect printer and computer |
| Temperature Probe Interface | Standard Configuration |
| Outline Dimension | 300 × 300 × 450(mm) |
Technical specifications
| Dimensions | L 45 × W 35 × H 49 cm |
|---|---|
| Weight | 8 kg |
| Manufacturer | Kalstein |
