Description

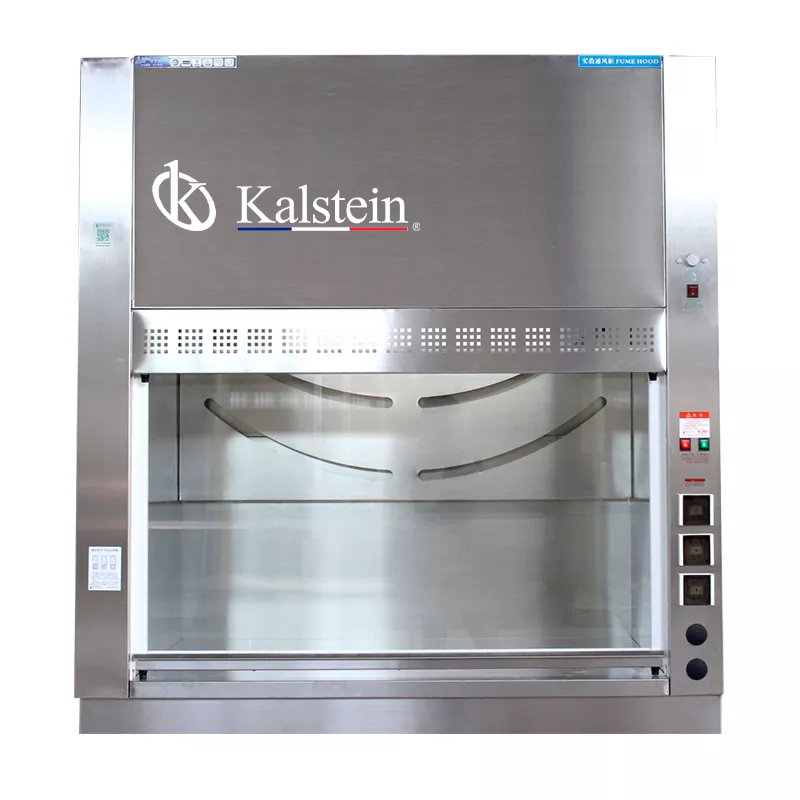

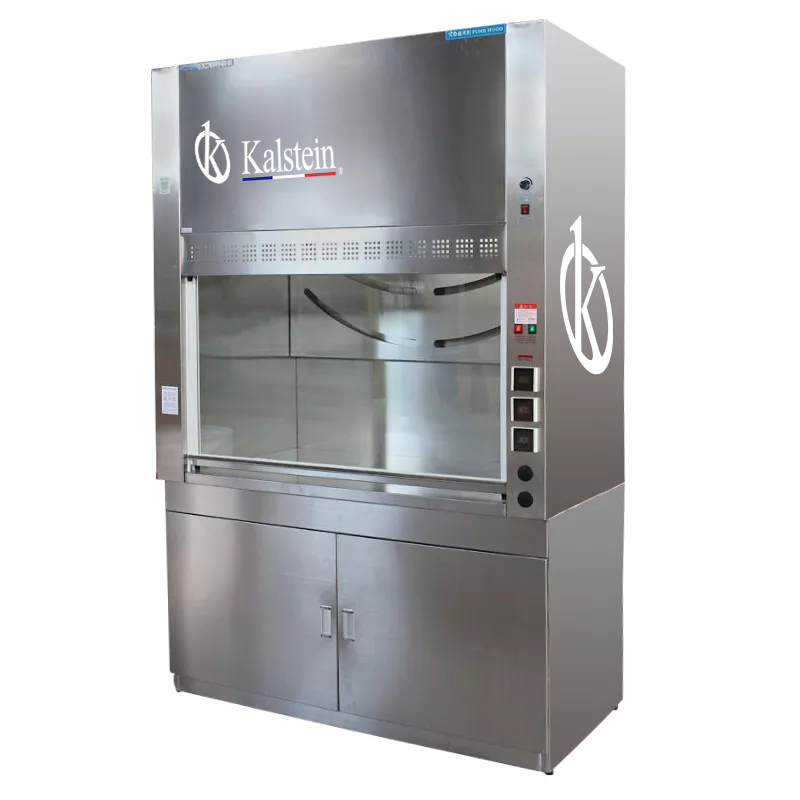

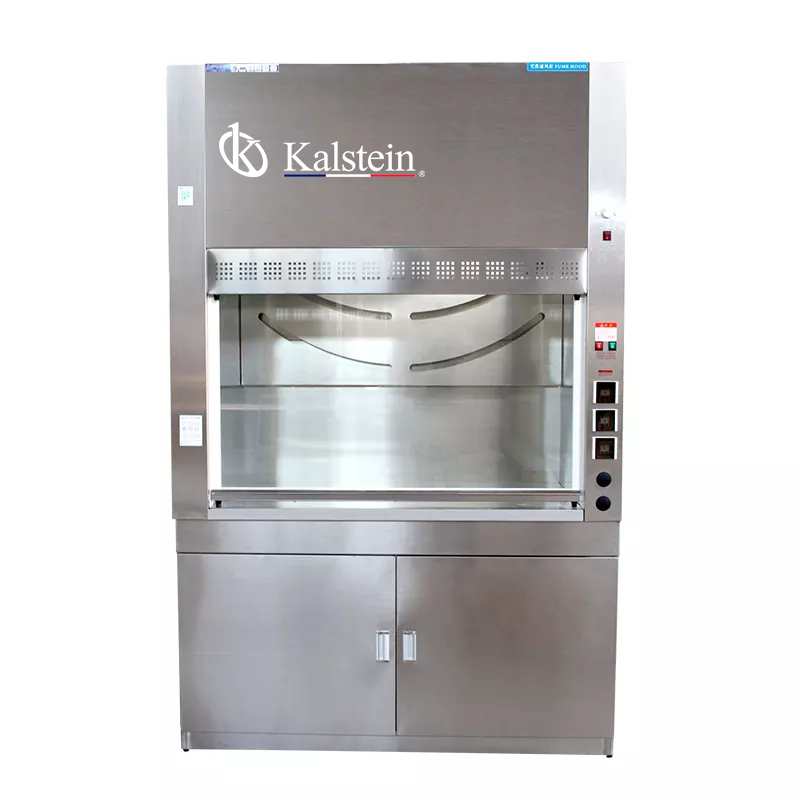

The Stainless Steel Laboratory Fume Hood YR05823 // YR05825 is a state-of-the-art laboratory safety device designed for optimal protection and superior performance in demanding laboratory environments. Featuring a robust 1.0mm thickness SUS304# stainless steel construction, it ensures durability and resistance to harsh chemical reactions. The fume hood provides a spacious work area with adjustable fan speeds and a manually adjustable front window made of 5mm thick tempered glass for enhanced safety and ease of operation. Whether in a pharmaceutical lab, research facility, or university, this fume hood is a critical tool for maintaining safe working conditions.
Market Price Overview
The price range for high-quality laboratory fume hoods typically spans from approximately $3200 to $4000 USD. This range reflects the robustness and sophisticated functionalities of these units, positioning them as an essential investment for environments that prioritize safety and compliance.
Frequently Asked Questions
What are the dimensions of the fume hood?
The YR05823 model measures 1200*800*1500 mm externally and 950*700*1150 mm internally. Other models have varying dimensions, providing options based on space availability and requirements.
Is the glass in the front window shatterproof?
Yes, the front window consists of 5mm thick tempered glass, designed to withstand impact and reduce the risk of shattering.
Advantages and Disadvantages
Advantages: The fume hood provides excellent chemical resistance and durability through its stainless-steel build. It includes advanced features like an adjustable-speed axial fan and LED lighting, enhancing user convenience.
Disadvantages: Due to its premium construction, it may require a significant initial investment. Additionally, installation should be conducted by trained professionals to ensure safety and functionality.
Field Usage
In practical scenarios, the Stainless Steel Laboratory Fume Hood is indispensable for containing hazardous fumes and vapors. It is widely used in conducting experiments involving volatile solvents or harmful chemicals, thereby safeguarding both the user and the environment within research or industrial labs.
Recommendations
To maximize the lifespan and efficiency of your fume hood, regular maintenance is essential. It is recommended to conduct periodic inspections and cleanings, ensuring that the exhaust paths remain unobstructed. When not in use, the sash should be closed to conserve energy and maintain the functionality of the fan.
Features
- Anti-melamine board liner and guide baffles
- Built-in axial fan with speed adjustability
- 5mm tempered glass window, height adjustable
- LED illumination enhancing visibility
- Corrosion-proof solid core, physical and chemical board surface

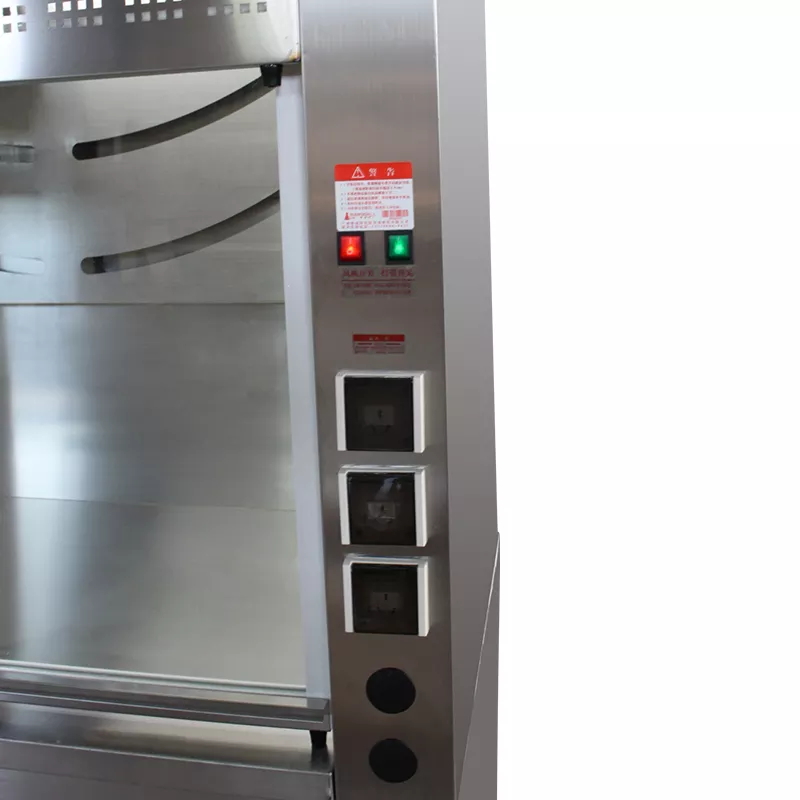

- Multifunctional splash-proof socket for added safety
Technical Specifications
| Model | YR05823 | YR05824 | YR05825 |
| External Size (W*D*H) (mm) | 1200*800*1500 | 1500*800*1500 | 1800*800*1500 |
| Internal Size (W*D*H) (mm) | 950*700*1150 | 1250*700*1150 | 1550*700*1150 |
| Work Surface Height | 800mm | ||
| Max Opening of window | 750mm | ||
| Air Velocity/Exhaust air volume | 0.4-0.6m/s,800-1000m³/h | ||
| Noise | ≤60dB | ||
| LED Lamp | 10W*1 | ||
| Blower | Built-in axial flow blower;Speed adjustable. | ||
| Front Window | Manual,5mm toughened glass,height adjustable. | ||
| Power Supply | AC220V±10%,50/60Hz; | ||
| Consumption | 85 W | ||
| Material | 1.0mm thickness SUS304# Stainless Steel. Base Cabinet equipmented with the adjustable mechanism | ||
| Standard Accessory | LED lamp,Built-in axial flow blower with speed adjustable. | ||
| Waterproof socket*3 | |||
| 3 meter PP duct,Diameter:250mm | |||
| Optional Accessory | epoxy resin board or ceramic board.,Water tap,Gas tap,Water Sink | ||
| Outer centrifugal blower(300W),resistant to strong acid,alkali. | |||
| Gross Weight | 235 | 265 | 300 |
