Description

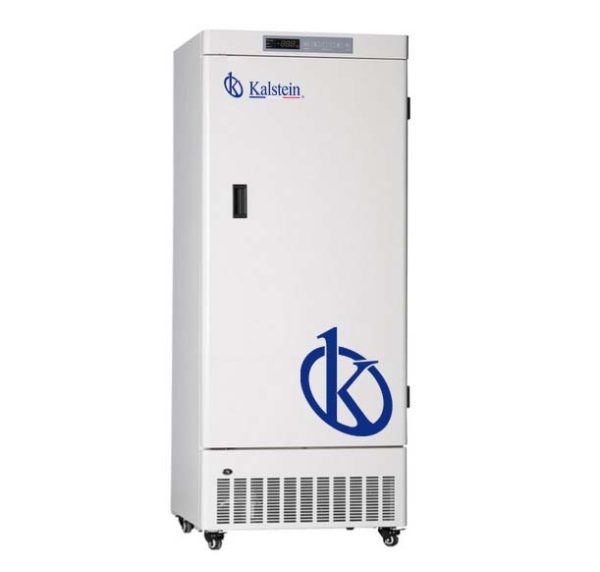

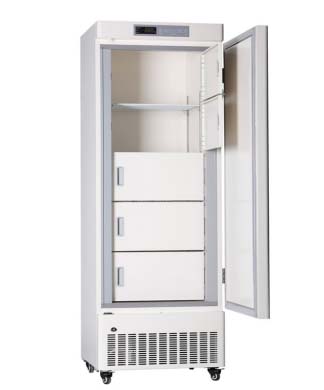

The Standing Deep Freezer With Color Sprayed Steel YR05307 is a reliable and efficient solution for storing critical biological materials, such as vaccines and blood plasma. Known for its usage in various research institutions and clinical sites, this medical freezer stands out in the life sciences, electronic testing, and medical markets. Its ergonomic design includes optional USB data logging, temperature recording functionalities, and a built-in lock for enhanced safety and aesthetics. Anti-corrosion construction and energy-efficient technology bolster its suitability for advanced research and medical applications.
Market Price
The Standing Deep Freezer With Color Sprayed Steel YR05307 is competitively positioned in the market, with similar medical-grade freezers generally ranging from $2700 to $3500. Although exact pricing can vary based on supplier and regional distribution costs, this freezer offers significant value in terms of its durability and advanced features, promising a robust performance for investment.
Frequently Asked Questions
Q: Is the freezer’s temperature adjustable?
A: Yes, it features a microprocessor control with a temperature range adjustable between -30ºC to -40ºC.
Q: How is safety ensured during power failures?
A: The freezer is equipped with a power failure protection system, including start-delay functions to prevent damage from power surges.
Q: Can it store different biological materials?
A: Absolutely! Its versatile design makes it ideal for storing a wide array of biological materials safely.
Advantages and Disadvantages
The primary advantages of this freezer include its environmentally safe refrigerant, digital display for precise temperature control, and ergonomic mobility with lockable casters. However, a potential disadvantage could be the manual defrost requirement, which might demand additional time for maintenance.
Product Usage in the Field
The Standing Deep Freezer is extensively used in clinical and research settings, particularly where temperature-sensitive materials require consistent conditions below freezing. Its robust build and reliable alarm system ensure that critical contents remain safe even during unexpected equipment failures.
Recommendations
For optimal performance, it is recommended to regularly check and maintain the freezer’s internal conditions, ensuring that alarms and the digital display function accurately. Utilizing the USB temperature recorder further enhances precision monitoring and record-keeping.
Features
- Microprocessor control and digital temperature display
- Environmentally safe R290 refrigerant
- High-density CFC-free insulation
- Multiple alarm systems for enhanced safety
- Independently sealed inner doors for temperature stability
Technical Specifications
| Parameter | Style | YR05307 |
| Specifications | Shelf/drawer | Shelves |
| Cooling method | Direct cooling | |
| Defrost | Manual | |
| Refrigerant | R290 | |
| Power consumption(kWh/24h) | 4 | |
| Noise(db) | 48 | |
| Ambient temperature(℃) | 10~32℃ | |
| Temperature range(℃) | -30~-40℃ | |
| Cooling system | Compressor brand/QTY | CUBIGEL/1 |
| Condenser | Wire tube | |
| Sensor | NTC | |
| Temperature controller | Microprocessor | |
| Display | Digital display | |
| Power | Voltage/frequency(V/Hz) | 220/50Hz |
| Power(W) | 300W | |
| Current(A) | 1.6A | |
| Material | Inside material | Color sprayed steel |
| Outside material | Color sprayed steel | |
| Insulation | PURF | |
| Size | Capacity(L/cu.ft) | 328/11.58 |
| NT./GT.(kg) | 110.3/132 | |
| Exterior size(W*D*H)(mm) | 685*670*1900 | |
| Interior size(W*D*H)(mm) | 508*455*1393 | |
| Package size(W*D*H)(mm) | 750*760*2030 | |
| CBM | 1.16 | |
| 20GP/40GP/40HQ | 21/48/48 | |
| Alarm | High/low temperature | Y |
| Power failure | Y | |
| Sensor error | Y | |
| Temperature controller failure | Y | |
| Door ajar | Y | |
| Power failure backup system(alarm) | 8h | |
| Accessories | Foot | Y |
| Castor | Y | |
| Inside door | Y | |
| Test hole QTY/diameter | Y | |
| Remote alarm port | Y | |
| Other | Certification | ISO9001,ISO13485,ISO14001,CE |
