Description

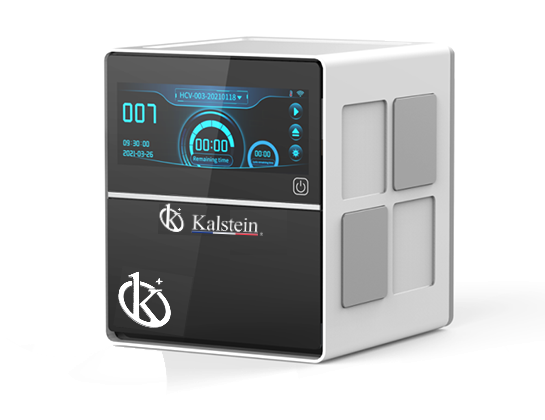

The Automatic Nucleic Acid Extractor YR01869-2 is a state-of-the-art device designed for efficient and flexible nucleic acid extraction. With its rotary mixing technology (RMT), it offers high flexibility by allowing up to 16 x n different flow rates, ensuring that multiple projects can be executed simultaneously without interference. Its innovative design, which garnered the German Red Dot Design Award in 2021, integrates user-friendly features and exceptional performance. The separate extraction module makes it an ideal choice for laboratories requiring rapid and precise testing. Its mobility and ease of use make it versatile for various scenarios, enhancing lab productivity significantly.
Market Price
The market price for automatic nucleic acid extractors varies widely, ranging from around $8,500 to $9,600 depending on the features and technologies involved. The YR01869-2 positions itself as a competitive option, providing advanced functionalities at a mid-range price point, making it accessible for laboratories seeking cost-effective yet reliable extraction solutions.
Frequently Asked Questions
What type of samples can the YR01869-2 process? The YR01869-2 can efficiently handle a variety of samples, including highly contaminated ones, due to its HEPA filtration and UV lamp contamination control features.
Is the device easy to operate? Yes, it can be operated through a touch screen or via an app on a smartphone or tablet, providing flexibility and ease of use.
Advantages and Disadvantages
Advantages: The YR01869-2 offers high flexibility, user-friendly operation, and advanced contamination control. It supports remote updates and maintenance, ensuring it stays up-to-date with the latest protocols.
Disadvantages: As a high-tech device, it may require an initial training session for new users to familiarize themselves with its functionalities.
Field Use
The Automatic Nucleic Acid Extractor YR01869-2 is perfect for scenarios requiring mobile testing capabilities. Its ability to initiate experiments anywhere supports fieldwork in diverse environments, making it invaluable for on-site research or urgent testing needs.
Recommendations
To maximize the performance of the YR01869-2, ensure regular maintenance and take advantage of the remote update feature to keep the software current. It’s also recommended to operate the device in a stable environment to prevent any power interruptions.
Features
- 16 x n different flow rates for simultaneous extraction
- Automated workflow with remote updating capabilities
- UV lamp and HEPA filtration for contamination prevention
- Mobile power enabling testing in various locations
- 6.86-inch touch screen and app control
- Won the German Red Dot Design Award 2021
Technical Specifications
| Model | YR01869-2 |
| Throughput | 16 |
| Processing Volume | 20-1700μL |
| Sample Processing Volume | 200-500μL |
| Compatible Consumables | Customized 96-deep-well plates, single 6-strip tubes |
| Inter-well Difference | CV≤3% |
| Mixing Method | Rotary mixing |
| Rotary Speed | 100~3000rpm |
| Temperature Control Range | Temperature control separately for lysis and elution. |
| Temperature range from 30°C to 120°C. | |
| Temperature Control Accuracy | Heating speed: 4.0±0.2°C/s. |
| Temperature accuracy: ±1.0°C. | |
| Temperature uniformity:≤1.0°C. | |
| Languages | Chinese/English |
| Protocol Management | Flexible to create, edit and delete protocols |
| Operation Mode | Mode 1: Android systems in smartphones/tablets |
| Mode 2: 6.86 inch full-color LCD screen | |
| Automatic Control | Automatic opening and closing of the experiment cabin |
| Reagent Identification | Automatic identification of reagent information and running the assays |
| Mixing Sleeve Monitoring | Real-time monitoring of the mixing sleeves status in experiment |
| Magnetic Bead Residue | ≤1% |
| Power Failure Protection | Choose freely whether or not to continue the experiment when the power is on again after cutting off |
| Disinfection | Ozone + UV disinfection |
| Auto Power-off | Auto power-off after UV disinfection |
| Negative-Pressure Filtration | Negative pressure HEPA filtration module |
| Connection Port Type | USB port |
| Weight | 7.4Kg (net) |
| Instrument Dimensions | 210mm(L)*229mm(W)*242mm(H) |
| Power Supply | AC220V, 50Hz |
