Ultrasonic Homogenizer YR05015 // YR05020
Ultrasonic Homogenizer YR05015 // YR05020 — Kalstein laboratory equipment with technical specifications, advanced features, and certified professional solutions for scientific use.

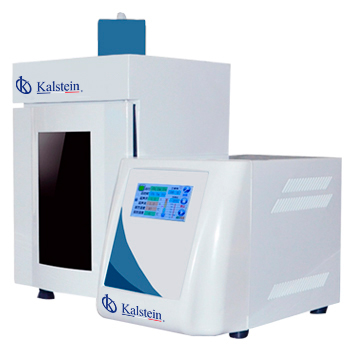

Ultrasonic Homogenizer YR05015 // YR05020 is an advanced laboratory instrument designed to efficiently mix and homogenize samples. With features such as single-chip technology and a touch screen interface, it offers intuitive control over ultrasonic time and power settings from 1% to 100%. The automatic temperature detection and fault alarm ensure reliable operation, while the overload protection safeguards the horn from damage. This model is equipped with a voice alarm to alert users of any operational errors, over-temperatures, or faults, making it a reliable choice for various laboratory applications.
Market Price
The Ultrasonic Homogenizer YR05015 // YR05020 is competitively priced within the range of high-precision laboratory equipment. The market price for ultrasonic homogenizers generally varies from approximately $1400 to $2200, depending on features and specifications. This pricing reflects the specialized technology involved and the product's capabilities in delivering precise and reproducible results. For an exact quote, we invite you to generate a quotation through our platform, Kalstein Plus.
Frequently Asked Questions
What samples can be processed with this homogenizer? The Ultrasonic Homogenizer YR05015 // YR05020 can process a wide variety of samples, including biological tissues, cells, polymers, and nanoparticle suspensions.
Is the touch screen interface user-friendly? Yes, the TFT capacitive touch screen is designed for ease of use, allowing operators to easily set and monitor parameters.
Advantages and Disadvantages
The main advantages of the Ultrasonic Homogenizer YR05015 // YR05020 include its precise control over ultrasonic power and time, user-friendly interface, and comprehensive alarm system which enhances safety and reliability. However, a potential disadvantage is that its advanced features may require a learning curve for users new to ultrasonication technology. Additionally, due to its complexity, maintenance and repairs might necessitate professional support.
Product Use in the Field
In practical settings, the Ultrasonic Homogenizer YR05015 // YR05020 is employed to homogenize samples for applications in biochemical research, material science, and pharmaceuticals. Its ability to efficiently break down cell walls and tissues makes it essential for sample preparation and ensuring consistency in experimental results.
Recommendations
To maximize the operational life and effectiveness of the Ultrasonic Homogenizer YR05015 // YR05020, it is advised to regularly clean the probe and maintain recommended operational parameters. When not in use, store the device in a dry, temperature-controlled environment to prevent damage. Regular calibration and timely servicing are also recommended to ensure continued precision and performance.
Features
- Single-chip technology with a TFT capacitive touch screen
- Adjustable ultrasonic time and power
- Automatic temperature tracking and fault alarms
- Overload protection for enhanced durability
- Comprehensive voice alarm system
- Option for data communication and printing
Technical Specifications
| Model | YR05015 | YR05016 | YR05017 | YR05018 | YR05019 | YR05020 |
| Power (Continuous) | 1.5 – 150W | 2-5 – 250 W | 10 – 650 W | 10 – 900 W | 20 – 1 200W | 50 – 1 800W |
| Mixing Capacity | 0.1 – 150 ml | 0.1 – 300 ml | 0.1 – 500 ml | 0.1 – 600 ml | 1 – 1 000 ml | 1 – 1 200ml |
| Optional Probe (mm) | Ø 2/3/8 | Ø 2/3/8/10 | Ø 2/3/10/12 | Ø 2/3/10/12/15 | Ø 3/6/10/15/22/25 | Ø 3/6/10/15/20/25/28 |
| Ultrasonic Setting Time | 0.1 – 99.9s | |||||
| Single Stop Time | 0.1 – 99.9s | |||||
| Total Time Setting | 1 – 99hrs 59min 59s | |||||
| Frequency Range | 20 – 25 KHz | 19.5 – 20.5KHz | ||||
| Temp Control Range | 0 – 100 C (Can be customized) | |||||
| Alarm Functions | Time, Temperature, overload, no-load | Time, Temperature, overload, no-load, over temperature | ||||
| Probe (Standard) | Ø 6 (mm) | Ø 20 (mm) | Ø 22 (mm) | |||
| Display Mode | Touch Screen | |||||
| Data Storage | 20 sets | |||||
| Voltage (Optional 110V) | 220 V / 110 V / 50 Hz / 60 Hz | |||||
| Exterior Dimension | 410 x 225 x 290 (mm) | |||||
| Optional Function | Computer + data printing function + soundproof cabinet lighting and sterilization | |||||
| Control Mode | Single Chip Microcomputer ´TFT Touch Control | |||||
| Voice Alarm and prompt function | Yes | |||||
Technical specifications
| Dimensions | L 50 × W 35 × H 50 cm |
|---|---|
| Weight | 38 kg |
| Manufacturer | Kalstein |
