Pulsed Xenon lamp Benchtop Spectrophotometer YR05474
Pulsed Xenon lamp Benchtop Spectrophotometer YR05474 — Kalstein laboratory equipment with technical specifications, advanced features, and certified professional solutions for scientific use.
The Pulsed Xenon Lamp Benchtop Spectrophotometer YR05474, developed by Kalstein, revolutionizes color analysis in research and laboratory environments, boasting a 7-inch TFT capacitive touchscreen for easy and precise operation. Its reflective d/8 and transmissive d/0 geometries, combined with comprehensive illuminants, allow for unmatched accuracy in color measurement and transmission. With abundant storage capacity and robust PC software, this spectrophotometer enables seamless integration into a wide range of industries, from electronics to food science.
Market Price
Spectrophotometers like the YR05474 typically range from $4000 to $5000. While this might be a significant investment, the advanced features and reliability ensure a long-term return by enhancing productivity and accuracy in color analysis. For precise pricing details, we encourage you to reach out or use our Kalstein Plus platform for instant quotations.
Frequently Asked Questions
What industries can benefit the most from the YR05474?
This spectrophotometer is ideal for sectors such as plastics, electronics, paint and ink, printing, and more.
Is the device user-friendly for beginners?
Yes, the 7-inch touchscreen simplifies operation, making it accessible even for users new to spectrophotometry.
Can it measure UV light?
Yes, it includes UV measurements with built-in Xenon lamps at specific cutoff wavelengths for precision.
Advantages and Disadvantages
The YR05474's major advantages include its precision in color measurement, versatile use across industries, and extensive data storage capabilities. However, its high cost might be a consideration for smaller labs. Despite this, the long lifespan of the Xenon lamps and the device’s robust build justify the investment.
Field Usage
In practical settings, the YR05474 is used to measure color consistency in production lines, ensuring that products meet stringent quality standards. Its ability to handle various substrates makes it indispensable in fields requiring precise color matching and analysis.
Recommendations
To maximize the YR05474's capabilities, it's recommended to perform regular calibrations using the standard calibration board provided. For optimal results, maintain an environment with stable temperature and humidity levels.
Features
- 7-inch TFT capacitive touchscreen for easy navigation.
- Long-lasting, stable Xenon lamp for consistent performance.
- Multiple measurement modes to cater to various analysis needs.
- Supports both reflective and transmissive spectrums.
- Large storage capacity for extensive data collection.
- Flexible aperture options for customizable measurements.
- Powerful PC software for advanced data analysis.
Technical Specifications
| Model | YR05474 |
| Optical Geometry | Reflectance: d/8 (SCI⪰ Include UV/Exclude UV) |
| Transmittance: d/0 (SCI⪰ Include UV/Exclude UV); Haze(ASTM D1003) | |
| Conforms to CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7 | |
| Integrating Sphere Size | Φ 154mm |
| Light Source Device | 360nm-780nm Xenon Lamp, 400nm cut-off Xenon Lamp,420nm cut-off Xenon Lamp,460nm cut-off Xenon Lamp |
| Spectrophotometric Mode | Concave Grating |
| Sensor | 256 Image Element Double Array CMOS Image Sensor |
| Wavelength Range | 360-780nm |
| Wavelength Pitch | 10nm |
| Semiband Width | 5nm |
| Reflectance Range | 0~200% |
| Measuring Aperture | Reflective : Φ30mm/Φ25.4mm, Φ18mm/Φ15mm, Φ10mm/Φ8mm, Φ6mm/Φ4mm; |
| Transmissive : Φ30mm/Φ25mm;Remark: 1. Automatic identification of switch caliber 2. Customized Configuration caliber and lens position | |
| Specular Component | Reflectance: SCI&SCE |
| Transmittance: SCI&SCE | |
| Color Space | CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB, Munsell, s-RGB, HunterLab, DIN, βxy |
| Color Difference Formula | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter), DIN ΔE99 |
| Colorimetric Index | WI (ASTM E313, CIE/ISO, AATCC, Hunter), |
| YI (ASTM D1925, ASTM 313), | |
| MI (Metamerism Index), | |
| Staining Fastness, Color Fastness, Color Strength, Opacity, | |
| Gardner Index, Pt-Co Index, 555 Index, Haze(ASTM D1003) | |
| Observer Angle | 2° & 10° |
| Illuminants | D65, A, C, UV, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12 |
| Displayed Data | Spectrogram/Values, Chromaticity Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset |
| Measuring Time | About 2.4s (Measure SCI & SCE about 5s) |
| Repeatability | Spectral reflectance: Φ25.4mm/SCI, Standard deviation within 0.06% (400 nm to 700 nm: within 0.05%) |
| Chromaticity value: Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.012 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration) | |
| Spectral Transmittance: Φ25.4mm/SCI, Standard deviation within 0.06% (400 nm to 700 nm: within 0.06%) | |
| Chromaticity value: Φ25.4mm/SCI, Standard deviation within ΔE*ab 0.015 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration) | |
| Inter-instrument Error | Φ25.4mm/SCI, Within ΔE*ab 0.12 |
| (Average for 12 BCRA Series II color tiles) | |
| Size | 370×300×200mm |
| Weight | About 9.6kg |
| Power Supply | DC 24V, 3A Power Adapter |
| Light Source Device Life | 5 years, more than 3 million times measurements. |
| Display | 7" TFT Capacitive Screen-touch Display |
| Data Port | USB & Bluetooth & Print serial port |
| Data Storage | Standard 5000 Pcs, Sample 40000 Pcs |
| Language | Simplified Chinese, Traditional Chinese, English, (Optional Customized German, French and Spanish) |
| Working Environment | Temperature: 0~40℃; Humidity: 0~85% (No Condensation) |
| Storage Environment | Temperature: -20~50℃; Humidity: 0~85% (No Condensation) |

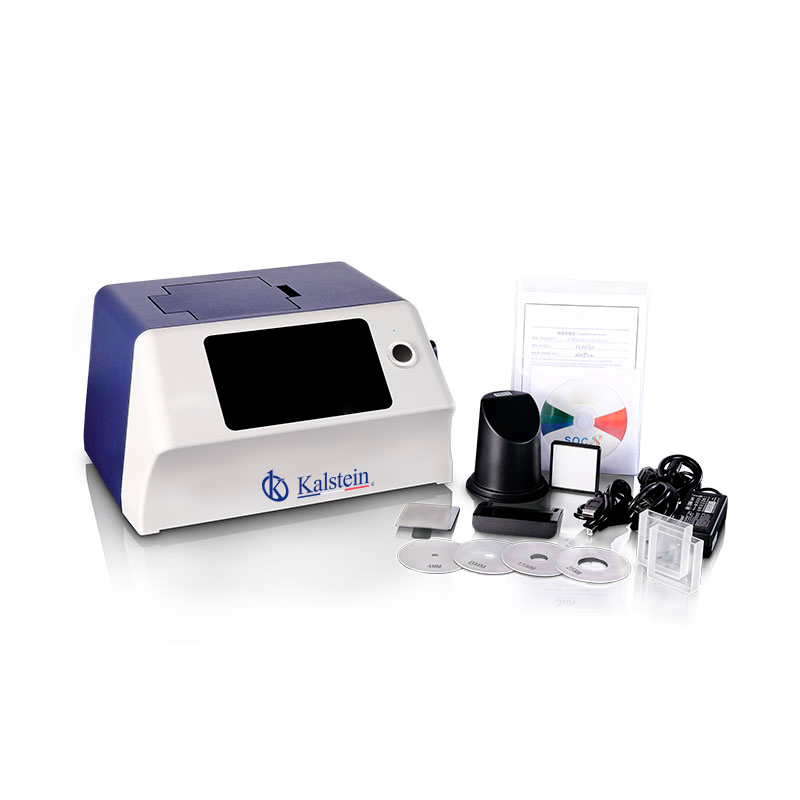

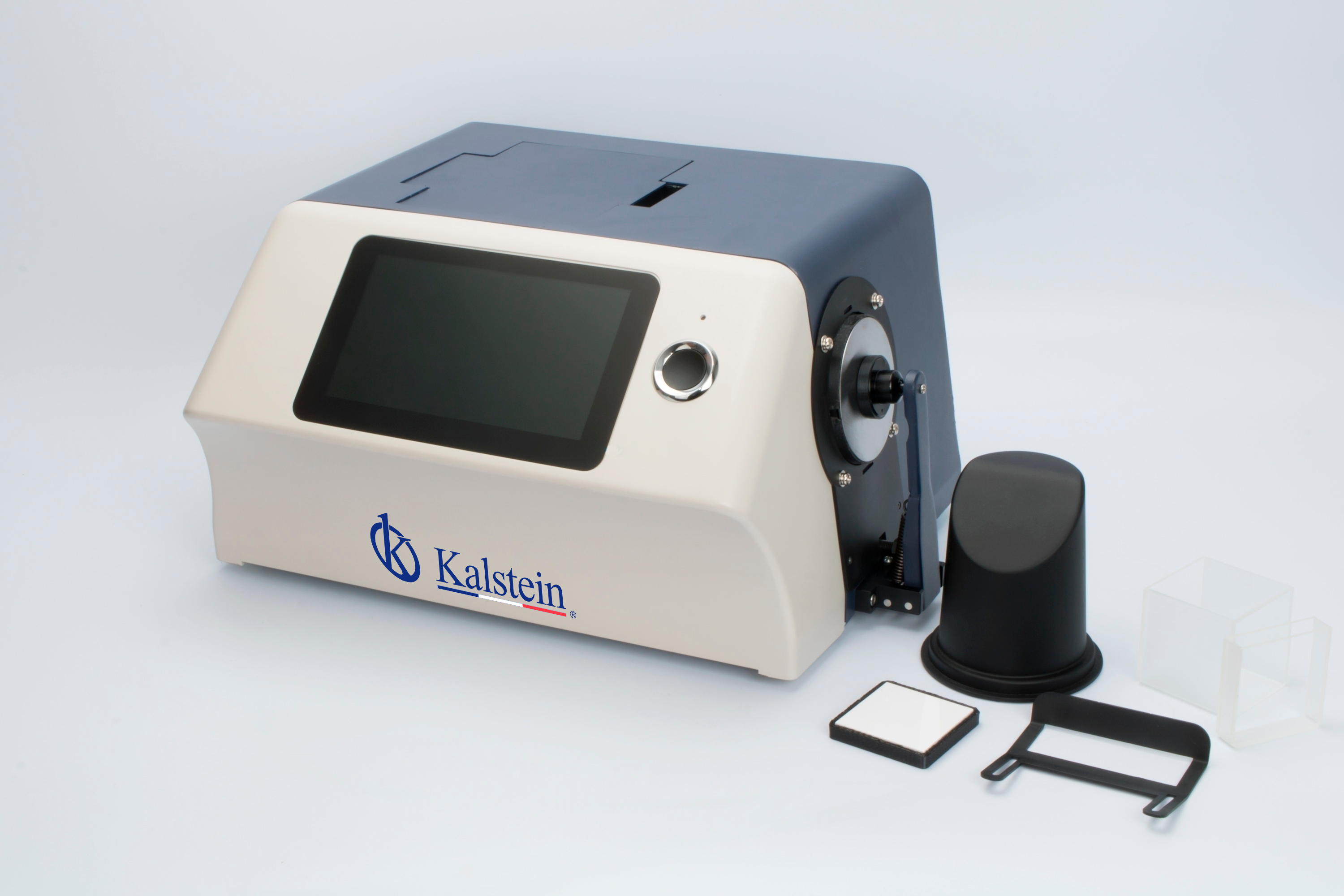

| Standard Accessory | Power Adapter, User Guide, CD Disk(PC Software), USB cable, Standard Calibration Board, Black Calibration Cavity, Transmission black baffle, Sample holder, 25.4 caliber, 15 caliber, 8 caliber, 4 caliber,Transmissive Test Component |
| Optional Accessory | Micro-printer, Micro Aperture(4mm) transmission test clamp component, Instrument inversion components |
| Notes: The specifications are subject to change without notice. | |
