| Model |
YR0246 |
YR0247 |
YR0248 |
| Optical System |

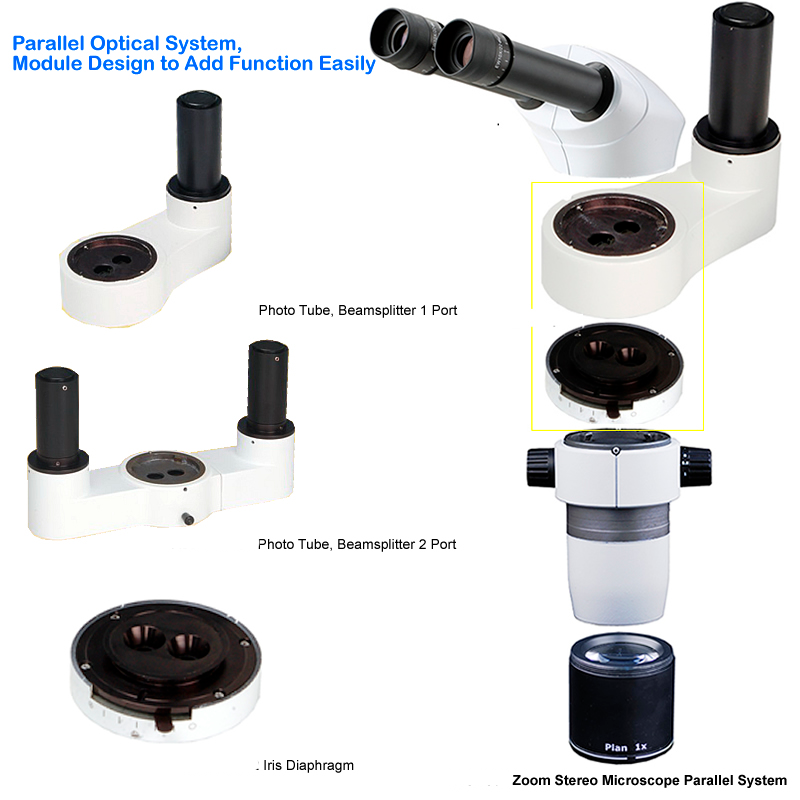

Parallel Optical System, Module Design to Add Function Easily |
● |
● |
● |
| Head |

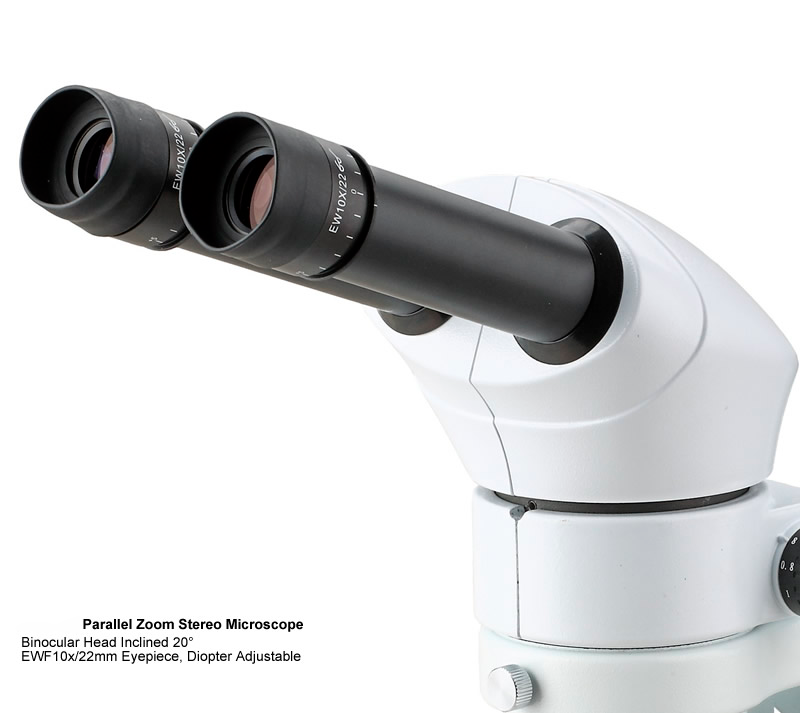

Binocular Head 20° Inclined |
● |
● |
● |
| Titling Head 0°-35° Viewing Angle Adjustable for User |
o |
o |
o |
| Eyepiece |
Extra Wide Field Eyepiece EWF10x/22mm，Diopter Adjustable,Interpupillary 55-75mm |
● |
● |
● |
| Zoom Body |
0.8~5.0x, Zoom Ratio 1:6 |
● |
– |
– |
| 0.8~6.4x, Zoom Ratio 1:8 |
– |
● |
– |
| 0.8~8.0x, Zoom Ratio 1:10 |
– |
– |
● |
| Auxiliary Lens |

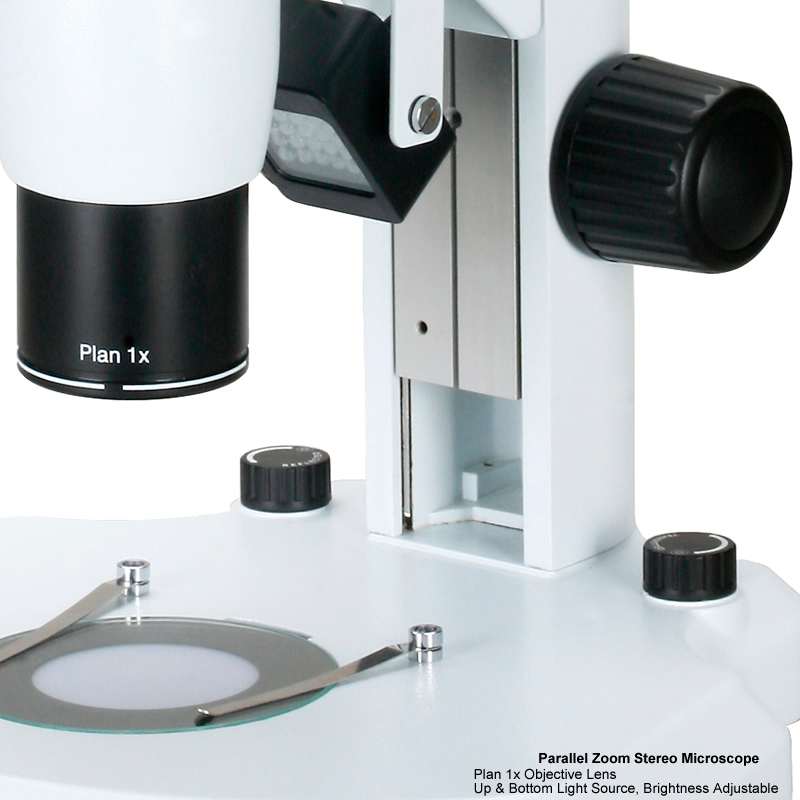

Plan Achromatic Lens 1.0x |
● |
● |
● |
| Working Distance |
78mm |
● |
● |
● |
| Focusing |
Coarse Focusing Konb, Range 105mm |
● |
● |
|
| Coaxial Coarse & Fine Focusing Knob, Fine Division 0.015mm, Coarse Stroke 38.4mm/Rotation, Fine Stroke 1.5mm/Rotation, Moving Range 105mm , Focusing Mount Inner Dia. 76mm |
|
|
● |
| Illumination |
Transmit & Reflect LED Illumination, Brightness Adjustable, Working Life 6000 Hours |
| Model |
Cata. No. |
| Head |
Titling Head 0°-35° Viewing Angle Adjustable for User |
YR0248-op1 |
| Model Change to A23.1005 |
| Eyepiece |
WF15x/16mm |
YR0248-op2 |
| WF20x/12mm |
YR0248-op3 |
| WF30x |
YR0248-op4 |
| Auxiliary Lens |
Plan Apochromatic Lens 0.5x |
YR0248-op5 |
| Plan Achromatic Lens 1.0x |
YR0248-op6 |
| Plan Achromatic Lens 2.0x |
YR0248-op7 |
| Achromatic Lens 0.3x |
YR0248-op8 |
| Achromatic Lens 0.5x |
YR0248-op9 |
| Illumination |

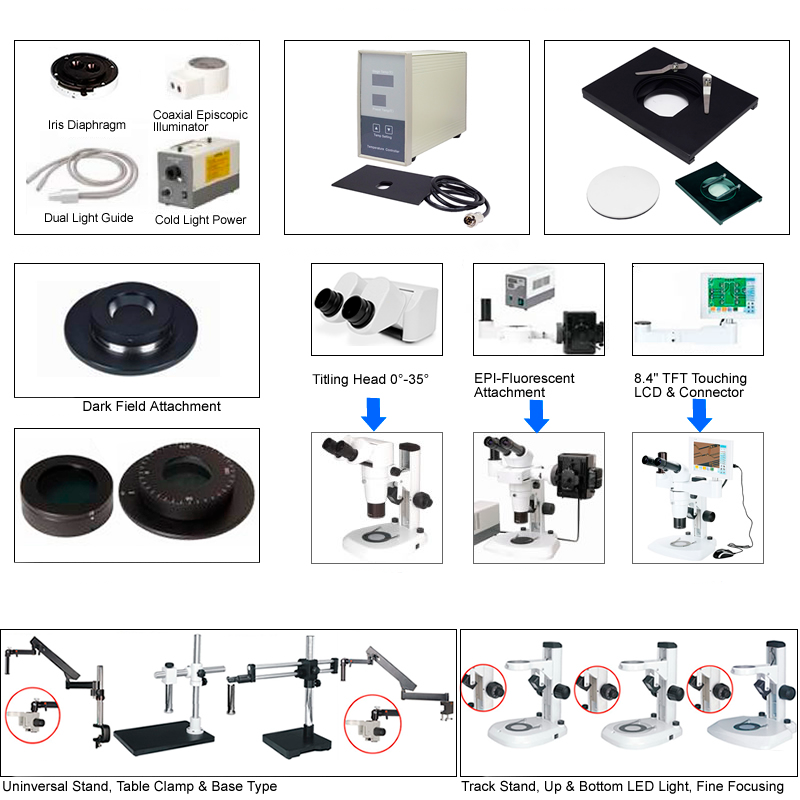

Coaxial Illumination Set: |
YR0248-op4 |
| –Cold Light Power Supplier, |
| –Dual Light Guide, |
| –Coaxial Episcopic Illuminator, |
| –Iris Diaphragm |
| Iris Diaphragm |
YR0248-op5 |
| Working Stage |

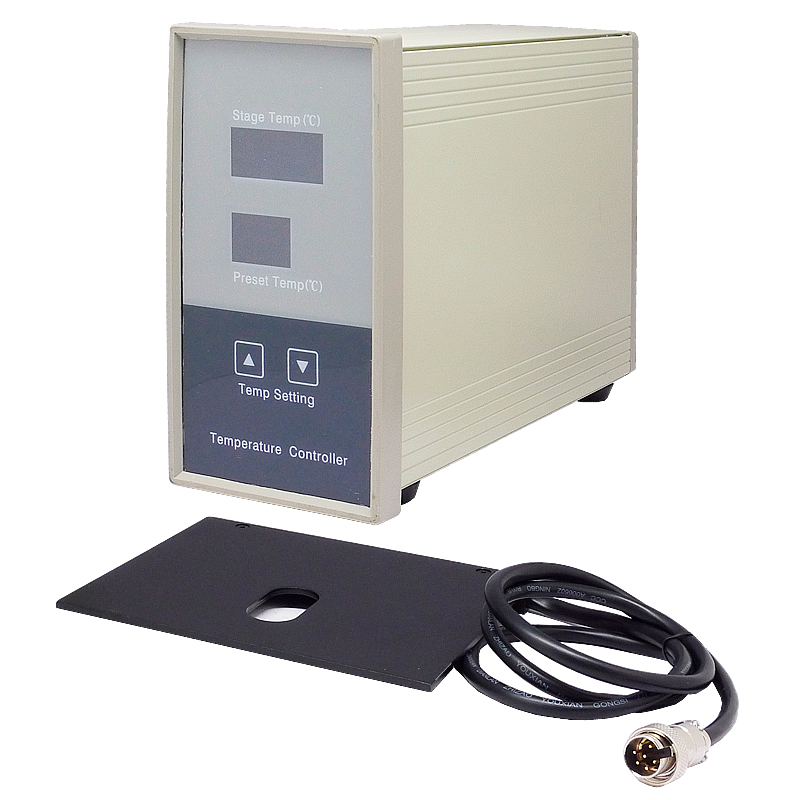

Temperature Control Stage |
YR0248-op6 |

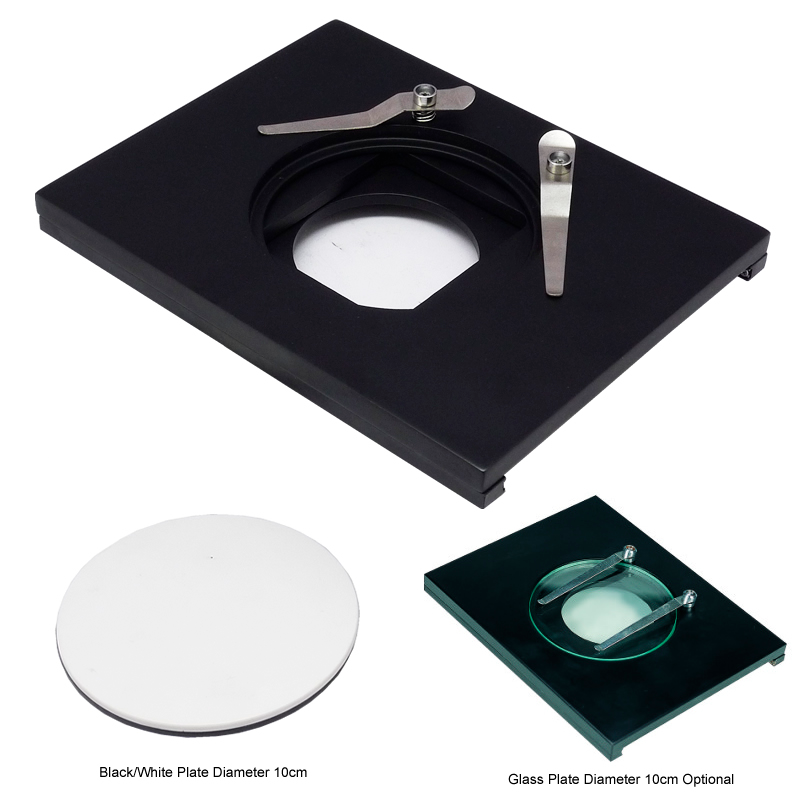

| Movable Working Stage |
YR0248-op7 |
| StandClick to See |
Universal Table Stand |
YR0248-op8 |
| YR0248-op9 |
| Track Stand, Transmit & Reflect Light Source |
YR0248-op10 |
| With Coarse & Fine Focusing Optional, Model -F, Like A54.1019-F |
YR0248-op11 |
|
YR0248-op12 |
|
YR0248-op13 |
|
YR0248-op14 |
| Fluorescent |

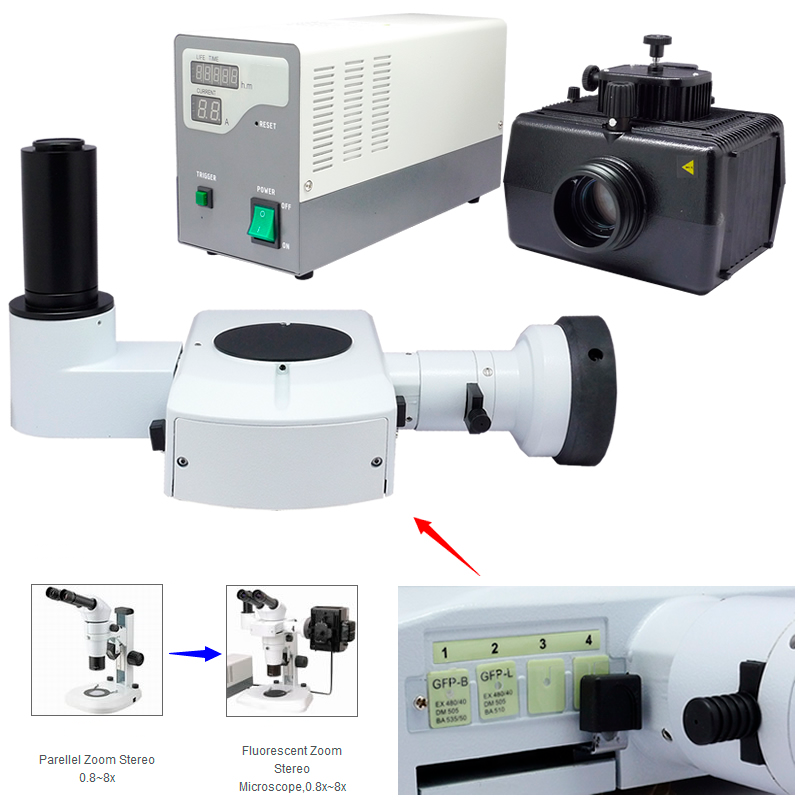

EPI-Fluorescent Attachment For Stereo Microscope |
YR0248-op15 |
| Dark Field |
Dark Field Attachment For Stereo Microscope |
YR0248-op16 |
| Polarizing |
Simple Polarizing Attachment For Stereo Microscope |
YR0248-op17 |
| LCD Monitor |
8.4″TFT Touch Screen LCD Monitor & Connector |
YR0248-op18 |
| Adapter |
Photo Tube, Beamsplitter 1 Port |
YR0248-op19 |
| Photo Tube, Beamsplitter 2 Port |
YR0248-op20 |
| Photo Adapter, 2.0x, For Nikon or Canon DIgital SLR Camera |
YR0248-op21 |
| C-mount 0.5x |
YR0248-op22 |
| C-mount 1.0x |
YR0248-op23 |
