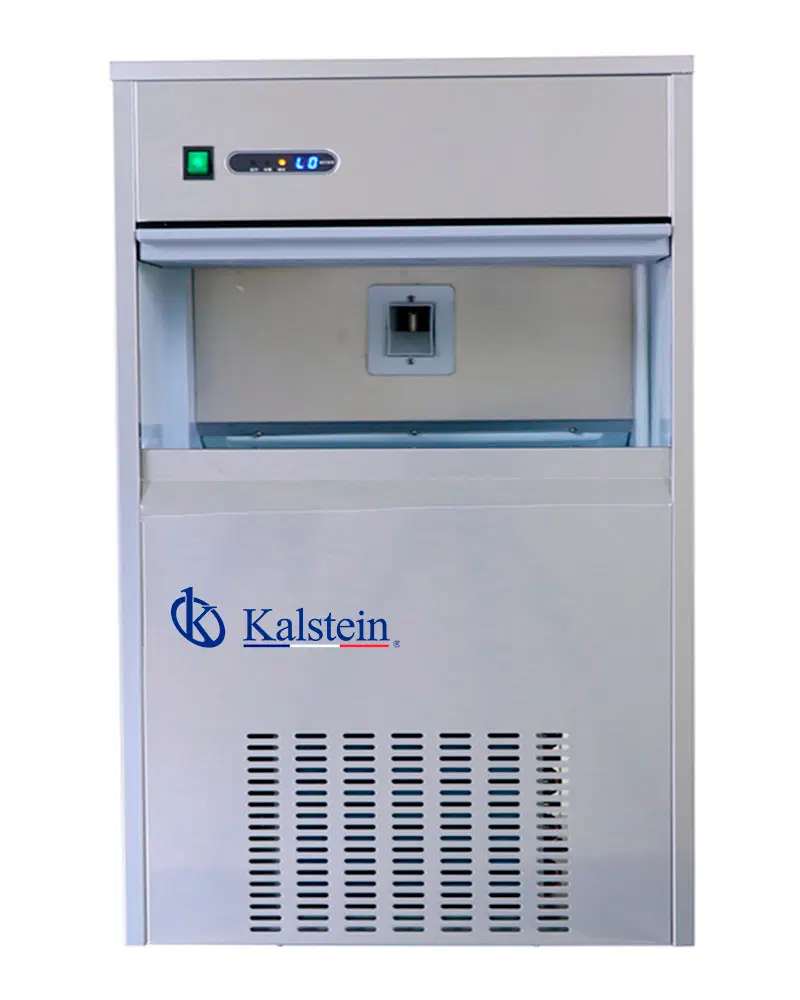

Site Requirements and Installation Conditions for the YR05138 Shaved Ice Machine
The YR05138 Shaved Ice Machine is designed for efficiency and reliability, but understanding its site requirements and installation conditions is crucial for optimal performance. This article will delve into the environmental factors, electrical needs, and installation guidelines necessary for the smooth operation of the YR05138.
Technical Data for the YR05138
| Specification | Description |
|---|---|
| Model | YR05138 |
| Ice Production Capacity | 120 Kg / 24 h |
| Ice Storage | 40 Kg |
| Voltage | 220V / 50Hz or 110V / 60Hz (extra charge) |
| Power | 550 W |
| Cooling Type | Air Cooling |
| Refrigerant | R134a |
| Water Supply | Tap water |
| Net Weight | 58 kg |
| Gross Weight | 63 kg |
| Product Dimensions | 500 x 611 x 940 mm |
| Package Dimensions | 560 x 670 x 980 mm |
Understanding Environmental Conditions
The YR05138 functions efficiently under specific environmental conditions. These include optimal temperature ranges, humidity levels, and ventilation needs. The ideal operating conditions ensure that the machine does not overheat and maintains its performance during usage.
In terms of temperature, the YR05138 operates best within a range of 10°C to 35°C. Operating the machine outside this range may lead to reduced efficiency or even malfunction. Additionally, humidity should be controlled to avoid moisture buildup, which can affect the ice-making process.
Electrical Requirements
Ensure that the electrical supply is compliant with the specifications mentioned in the technical data table. The YR05138 can operate on either 220V / 50Hz or 110V / 60Hz; however, an additional fee may apply for the latter option. The electrical system must be stable and provide consistent voltage to avoid damage to the compressor and other components.
It is recommended to use a dedicated circuit for the YR05138 to prevent power fluctuations due to other devices. Moreover, ensure that the installation area has proper grounding to enhance safety during operation.
Ventilation and Clearance
Proper ventilation is essential for the YR05138 to function efficiently. The machine should be placed in an area where air can circulate freely around it. The manufacturer recommends maintaining at least 30 cm of clearance on all sides of the machine to promote airflow and prevent overheating.
Additionally, the installation area should be shielded from direct sunlight and extreme conditions that can affect the machine’s efficiency. Adequate ventilation systems or fans can be installed to enhance airflow, especially in warmer environments.
Water Supply and Drainage Requirements
The YR05138 requires a continuous supply of clean tap water for ice production. Ensure that the water supply is reliable and meets local health standards. Additionally, the machine is designed with a unique float-type water supply system that guarantees no residual water, thus eliminating the need for manual cleaning processes and reducing water wastage.
A proper drainage system should also be in place to handle any excess water produced during operation. Proper drainage ensures that the machine operates without any hindrances caused by water accumulation.
Installation Checklist
Before installing the YR05138, it is crucial to follow a checklist to ensure that all requirements are met. This reduces the likelihood of operational issues later on. Here’s a site-preparation checklist:
| Checklist Item | Details |
|---|---|
| Clearance Space | Ensure 30 cm clearance on all sides. |
| Electrical Supply | Confirm dedicated circuit and appropriate voltage. |
| Water Supply | Check continuous tap water supply. |
| Drainage | Verify proper drainage system is in place. |
| Ventilation | Ensure proper airflow around the machine. |
Frequently Asked Questions
What are the essential installation requirements for the YR05138 Shaved Ice Machine?
The essential installation requirements include proper electrical supply, adequate ventilation, a continuous tap water supply, and a reliable drainage system. The machine should also have a clearance of at least 30 cm on all sides for optimal airflow.
How does the water supply system of the YR05138 work?
The YR05138 features a float-type water supply system that ensures no residual water remains, thus eliminating the need for manual cleaning and conserving water. It is designed for direct connection to a tap water source.
What are the recommended environmental conditions for operating the YR05138?
The YR05138 operates best in an environment where the temperature ranges from 10°C to 35°C, with controlled humidity levels to prevent moisture buildup that can affect ice production.
How important is ventilation for the YR05138 Shaved Ice Machine?
Ventilation is crucial for the YR05138 as it prevents overheating and ensures efficient operation. It is recommended to maintain a clearance of at least 30 cm around the machine to promote airflow.
What electrical specifications should be followed during installation?
The YR05138 can operate on 220V / 50Hz or 110V / 60Hz. It is advisable to use a dedicated circuit to avoid power fluctuations and ensure stability. Proper grounding is also essential for safety.
Can the YR05138 operate in direct sunlight?
It is not recommended for the YR05138 to operate in direct sunlight or extreme conditions as this can affect its performance. Ensure the installation site is shaded and protected from harsh environmental factors.
What maintenance is required for the YR05138 installation site?
Regular checks on the electrical supply, water connections, and drainage systems are necessary to ensure that the installation site remains optimal for the YR05138. Additionally, maintaining the cleanliness of the machine will contribute to its longevity and performance.
