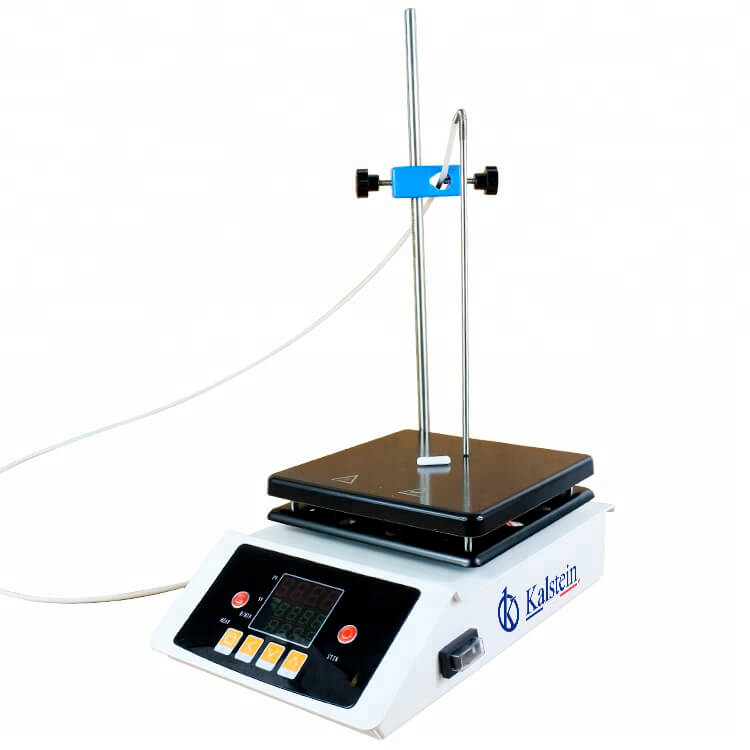

Understanding Measurement Interpretation and Reading Results with the YR02942 Hotplate Stirrer
The YR02942 Intelligent Digital Display Ceramic Top Hotplate Stirrer is an essential tool in laboratories, particularly in the fields of chemistry and biology. Its ability to provide precise temperature control, stirring speed, and result interpretation makes it invaluable for various applications. This article focuses on how to effectively interpret measurement results and read data provided by the YR02942, ensuring optimal usage and accurate outcomes.
Technical Specifications of the YR02942
| Model | YR02942 |
|---|---|
| Plate Dimension (mm) | 180 x 180 (7.09 x 7.09 inches) |
| Temperature Control | PID Automatic Control |
| Temperature Range | Ambient to 400 degrees |
| Maximum Plate Temperature | 325 degrees |
| Stirring Speed | 100-1800 RPM |
| Accuracy | Temperature: +/- 1 degree; Speed: +/- 1 RPM |
| Power Supply | 550W heating supply; 40W motor supply |
Interpreting Measurement Results
Measurement interpretation is crucial when operating the YR02942. The instrument displays real-time data for both temperature and stirring speed, allowing users to adjust settings based on their experimental requirements. It's important to understand how to read these measurements accurately to avoid experimental errors.
The temperature display indicates the current temperature of the hotplate, while the stirring speed display shows the RPM of the stirrer. Pay close attention to these readings, as they can vary due to external factors such as room temperature and viscosity of the solutions being stirred. A consistent monitoring approach can help maintain the desired experimental conditions.
Common Measurement Misinterpretations
One common mistake when interpreting results involves overlooking error bars or fluctuations in the displayed values. It’s essential to consider the stability of the readings over time, especially when working with sensitive materials. For example, if you notice frequent fluctuations in temperature readings, it could indicate an underlying issue with the hotplate calibration or external environmental conditions affecting the readings.
Another misinterpretation can occur when users fail to recognize the difference between set temperature and actual temperature. The PID control may take some time to stabilize. It is advisable to allow for a settling period after adjusting any settings before taking final measurements.
Best Practices for Accurate Measurements
To ensure accurate results while using the YR02942, follow these best practices:
- Calibrate Regularly: Regular calibration of the device is crucial for maintaining accuracy. Follow the manufacturer’s guidelines for calibration frequency.
- Standardize Measurements: Use standard solutions and conditions to minimize variables that can affect readings.
- Allow Stabilization Time: After making adjustments to temperature or stirring speed, let the device stabilize before recording readings.
- Document Results Consistently: Keep a detailed log of measurements, settings, and any anomalies for future reference.
Troubleshooting Measurement Issues
Measurement issues can arise while using the YR02942. Here are some common symptoms and their solutions:
| Symptom | Possible Cause | Solution |
|---|---|---|
| Equipment does not power on | Power supply issue | Check power connections and ensure the outlet is functioning. |
| Error code E-03 appears | Temperature sensor malfunction | Inspect the temperature sensor for damage and replace if necessary. |
| Inconsistent readings | Calibration drift | Recalibrate the device according to the user manual. |
Understanding the Display Readings
The YR02942 features an intelligent digital display that conveys critical information about temperature and stirring speed. Users can interpret the displayed values by referencing the following:
- Temperature Display: This shows the current temperature of the hotplate. Ensure that the temperature setting aligns with your experimental needs.
- Stirring Speed Display: Indicates the current stirring speed. Adjust this according to the viscosity of the substances being mixed.
It is recommended to consult the technical specifications table earlier in this article for a comprehensive understanding of maximum and minimum operational parameters.
Frequently Asked Questions
What are the key features of the YR02942 hotplate stirrer?
The YR02942 features a PID automatic temperature control, adjustable stirring speeds from 100 to 1800 RPM, a maximum plate temperature of 325 degrees, and a robust aluminum casing that ensures durability and resistance to corrosion.
How can I ensure accurate temperature readings with the YR02942?
To ensure accurate temperature readings, regularly calibrate the device, allow the hotplate to stabilize after adjustments, and monitor the temperature display closely to identify any fluctuations.
What troubleshooting steps can I take if the YR02942 shows error codes?
If the YR02942 shows error codes, consult the user manual for specific error definitions. Common steps include checking power connections, inspecting sensors, and recalibrating the unit.
Can I use the YR02942 for different laboratory applications?
Yes, the YR02942 can be utilized across various laboratory applications, including chemical synthesis, biological experiments, and educational demonstrations, due to its versatility and reliability.
What is the maximum volume I can stir with the YR02942?
The YR02942 is capable of stirring solutions ranging from 50 mL to 5 liters, making it suitable for both small and larger scale experiments.
What maintenance is required for the YR02942?
Regular maintenance for the YR02942 includes cleaning the ceramic top, checking electrical connections, and ensuring that the temperature and stirring functions are calibrated accurately.
How do I request a quote for the YR02942 hotplate stirrer?
You can easily request a quote for the YR02942 by visiting our contact page and completing the inquiry form to receive personalized assistance.
