Description

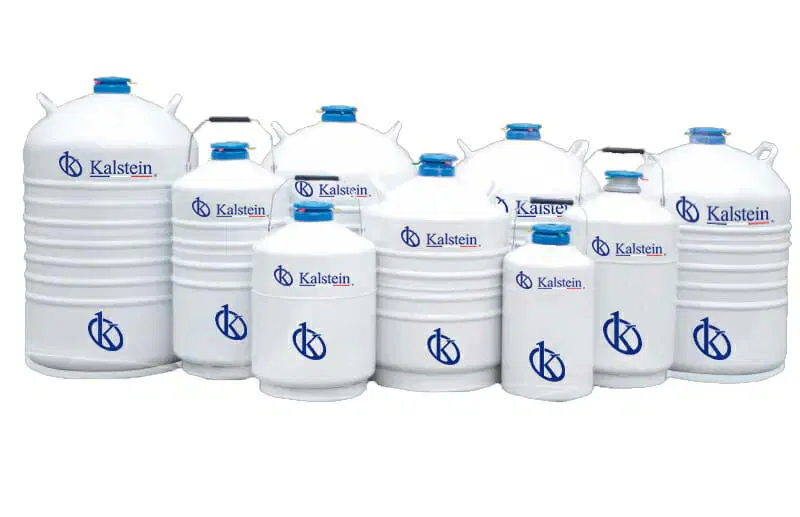

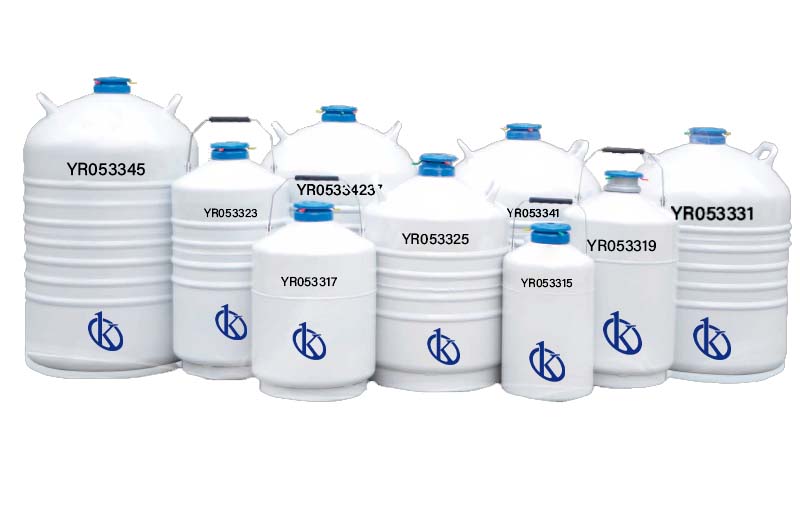

The High Capacity Series for Storage or Transport (Round Canisters) Models YR05383 and YR05392 are designed to offer optimal performance for storing or transporting delicate biological samples. These canisters are known for their robust and lightweight aluminum construction, paired with high thermal efficiency to ensure minimal evapouration loss and extended sample preservation. Equipped with a heavy-duty lockable enclosure for enhanced security, these canisters are ideal for both lab and field environments, providing a reliable solution for straw storage and offering a long-lasting 5-year vacuum warranty.
Price in the Market
The average market price for storage canisters similar to the High Capacity Series ranges between $300 to $900 USD. This range reflects the premium features and reliable design these containers offer, positioning them as a competitive option in the market for high-capacity biological storage solutions.
Frequently Asked Questions
What is the capacity of these canisters? These models vary in capacity, with options to store up to 792 straws in single layer per canister.
Are the canisters lockable? Yes, all models come with a lockable cap to provide secure storage for your samples.
Advantages and Disadvantages
Advantages: The High Capacity Series provides excellent thermal efficiency, is lightweight yet durable, and includes features like straw storage and roller bases for easy transport. With a low static evapouration rate and extended holding time, it ensures maximum preservation of contents.
Disadvantages: While offering many premium features, the initial investment is higher compared to simpler models, which may not provide the same level of security and efficiency.
Use of the Product in the Field
Ideal for use in laboratories and field research, these canisters are adept at preserving delicate samples for medical and biological studies. The design facilitates easy access to samples and minimizes handling time, thus safeguarding the samples’ integrity.
Recommendations
For optimal performance, ensure that the canisters are regularly checked for vacuum efficiency and kept in environments consistent with their operational requirements. Regular maintenance will extend their lifespan and maintain their performance standards.
Features
- Strong and lightweight aluminium construction
- Heavy duty lockable enclosure offers excellent security
- Numbered index location points for canisters
- Straw storage
- LN dispense pump available
- Roller bases available
- High thermal efficiency
- 5 year vacuum warranty
- Ultra-low evapouration loss
Technical Specifications
| Model | YR05383 | YR05384 | YR05385 | YR05386 | YR05387 | YR05388 | |
| Maximum Capacity |
No. of Canister | 3 (0) | 3 (3) | 6 (0) | |||
| No. of Straws (Single Layer) (0.5ml each canister) |
90 | 165 | 792 | ||||
| No. of Straws (Single Layer) (0.25ml each canister) |
204 | 330 | 1788 | ||||
| No. of Straws (Double Layer) (0.5ml each canister) |
— | — | — | — | |||
| No. of Straws (Double Layer) (0.25ml each canister) |
— | — | — | — | |||
| Performance | Volume of LN2 (L) | 2 | 2 | 3 | 6 | ||
| Static Evapouration* (L/Day) | 0.07 | 0.08 | 0.12 | 0.12 | |||
| Static Holding Time** (Day) | 28 | 24 | 26 | 52 | |||
| Dimensions | Opening Diameter (mm) | 30 | 35 | 50 | 50 | ||
| Height (mm) | 399 | 428 | 435 | 482 | |||
| Outside Diameter (mm) | 223 | 204 | 223 | 300 | |||
| Canister Outside Diameter (mm) | 19 | 25 | 38 | 38 | |||
| Outside Height (mm) | 120 | 120 | 120 | 120 | |||
| Empty Weight (kg) | 2.8 | 2.6 | 3.1 | 4.8 | |||
| Full Weight (kg) | 4.5 | 4.4 | 6 | 9.9 | |||
| Shipping Weight (kg) | 5.1 | 4.9 | 5.8 | 8 | |||
| Aditional Features | Includes 3 canisters, lockable cap and protective jacket | Includes 3 canisters, lockable cap and braces for carrying, no protective jacket | Includes 6 canisters (height 120mm), lockable cap and protective jacket | Includes protective jacket only | Includes 6 canisters (height 120mm), lockable cap and protective jacket | Includes protective jacket only | |
| Model | YR05389 | YR05390 | YR05391 | YR05392 | |||
| Maximum Capacity |
No. of Canister | 6 (0) | |||||
| No. of Straws (Single Layer) (0.5ml each canister) |
792 | 2244 | |||||
| No. of Straws (Single Layer) (0.25ml each canister) |
1788 | 5022 | |||||
| No. of Straws (Double Layer) (0.5ml each canister) |
— | — | |||||
| No. of Straws (Double Layer) (0.25ml each canister) |
— | — | |||||
| Performance | Volume of LN2 (L) | 10 | |||||
| Static Evapouration* (L/Day) | 0.12 | 0.21 | |||||
| Static Holding Time** (Day) | 86 | 48 | |||||
| Dimensions | Opening Diameter (mm) | 50 | 80 | ||||
| Height (mm) | 552 | 557 | |||||
| Outside Diameter (mm) | 300 | 300 | |||||
| Canister Outside Diameter (mm) | 38 | 63 | |||||
| Outside Height (mm) | 120 | 120 | |||||
| Empty Weight (kg) | 6.1 | 6.2 | |||||
| Full Weight (kg) | 14.5 | S | |||||
| Shipping Weight (kg) | 9 | 9.3 | |||||
| Aditional Features | Includes 6 canisters (height 120mm), lockable cap and protective jacket | Includes protective jacket only | Includes 6 canisters (height 120mm), lockable cap and protective jacket | Includes protective jacket only | |||
